Remarkable Durable Medical Direct Laryngoscope for Difficult Airway Intubation

Is Medical video laryngoscopy direct or indirect?

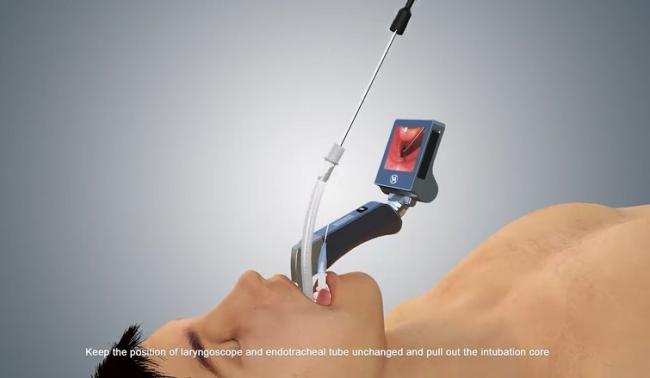

The current practice is to use direct laryngoscopy to facilitate intubation; video assisted laryngoscopy, has the potential to facilitate successful intubation while improving intubation outcomes.

Direct Video Laryngoscope main features:

1.Clear view: Large depth of field, no blind area for intubation.

2.High resolution: 2 million pixels camera and 3" TFT clear color screen.

3.Intelligent: Built-in memory card is capable for data storage and output.

4.Faster: Unique anti-fog function, convenient and faster to use for tracheal intubation.

5.Durable: High precision process, ergonomic metal display screen frame and handle, long service life.

6.Convenient: Portable laryngoscope with taking pictures, video recording and frame freezing function.

7.Resuable: Camera system in medical grade 304 S/S integrated with handle could be sterilized and reusable.

8.Versatile: Provides up to five different camera options. Apply for extreme airways, adult large, adult medium, pediatric and neonate patients.

Certificates such as

CE, FDA, ISO 13485, ISO9001

are proofs of our quality.

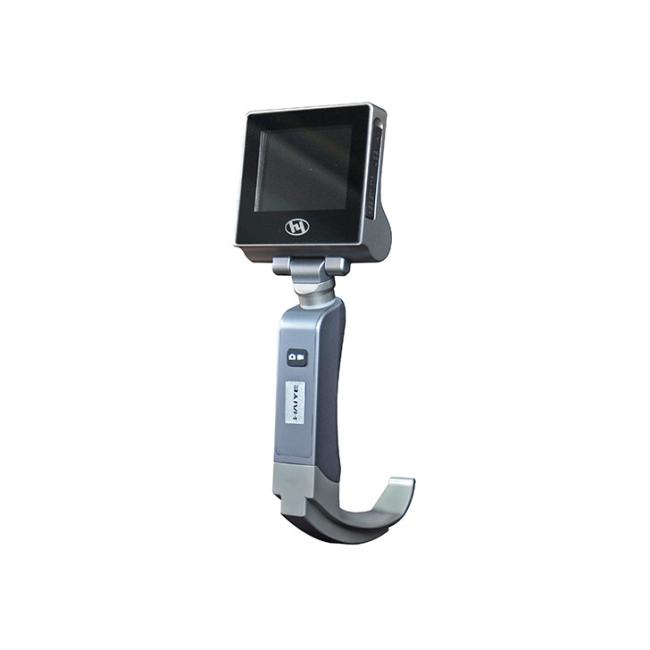

Medical Video Laryngoscope  Specification

	Description	Specification
Machine	Product name	video laryngoscope
	Item weight	225 g
	Power	<2W
Screen	Screen size	3 inch LCD
	Resolution	960*480 pixels (RGB)
	Viewing angle	≥70º
	Screen tilt angle(back/forth)	0 º~135 º
	Screen rotation angle(left/right)	0º～275º
Camera	Illuminance	≥3000 Lux
	Resolution	2 mega or 1600*1200 pixels
	Viewing angle	≥70º
	Depth of field	3～100mm
	Anti-fog	Yes
Image/Video function	Image/ Video/ Freeze frame function	Yes
	Output	USB & AV output
	Memory type	8GB Micro SD card
Battery	Battery Type	Rechargable Li-ion
	Capacity	3400 mAh
	Charging cycles	>800 times
	Charging time	<4 hrs
	Continuous working time	≥6 hrs
Power Adapter	Charging Port	Micro USB
	Input	100-240V, 50 Hz.
	Output	5V, 2000mA
Working condition	Temparature	5℃--40℃
	Humidity	≤80%
	Atmospheric pressure	860hpa～1060hpa



Medical Video Laryngoscope Package: High strength protection box

Packaging Details : Standard export carton packing for medical video laryngoscope

Package size: 415*110*345 cm

Gross weight: 3.20 kg



Standard equipment contain :

1x Main machine

5x Camera systems

5 x reusable stainless steel blades

1x Charger

1x Anti-drop suitcase with foam protect in carton

1x Operation manual and warranty card
