Double Screw 110mm 75mm PP Strap Manufacturing Machine Ceramics Furniture

Description of PP Sandwich belt band production machine

Sandwich belt equipment is mainly composed of the main machine + auxiliary unit, 2 feeder, 2 barrels, other parts are the same, sandwich belt equipment is mainly used in ceramics factory more, the so-called sandwich belt, is the outer layer is good material, the inner layer is wrapped with bad material.

General parameter of PP strap making machine

Advantages of Polypropylene strap production machine

• Equipped with non-stop automatic screen changer with 4‑screen circulating filtration, no frequent changes needed, maximizing productivity.
• Unique cooling system and multi guide rails ensure better cooling, stable shrinkage and accurate dimensions. Reciprocating winding design saves heat and reduces power consumption.
• Intelligent PLC control (Chinese/English) with parameter memory function for one‑click recall of production settings. Easy operation, long service life and low failure rate.
• High-quality electrical parts: Schneider, TR bearings, Fotek, etc.
• CNC machined high‑precision mould ensures stable forming, with thickness error better than national standard.
• Automatic deviation correction makes winding neat and finished rolls with good appearance and quality.

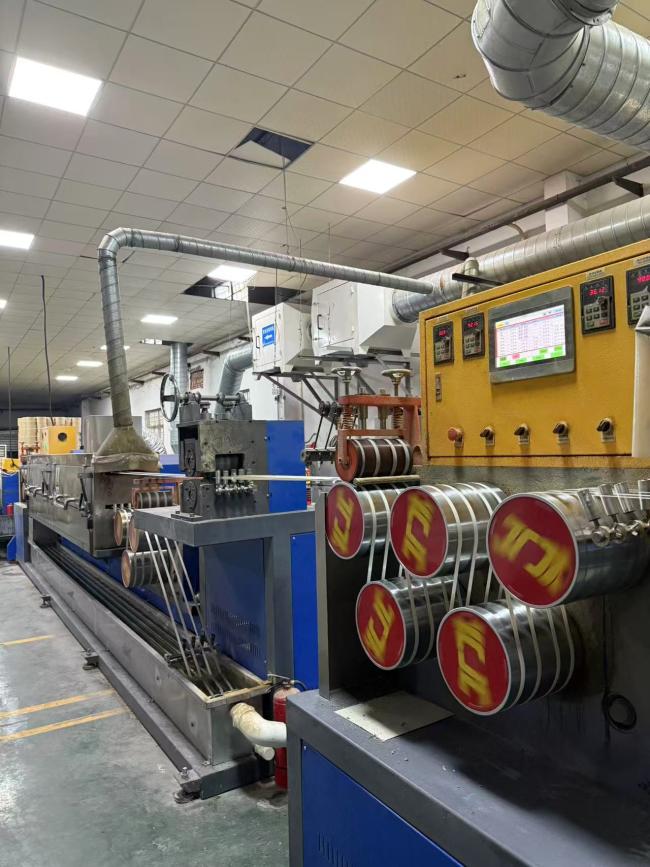

Process flow of PP packing belt production line

① Feeding →② mixing material→③ pre-drying →④ melting and measuring extrusion →⑤ embryo (belt embryo) cooling and forming →⑥ oven pre-heating →⑦ primary stretching →⑧ secondary stretching →⑨ embossing → oven tempering and setting → cooling → finished product winding

Tips: if you have a choose of printing that you can printing first and then embossing in the project of eight.

FAQ

• Q: What voltage is applicable?



  A: Customizable according to different countries, such as 380V/50Hz, 415V/50Hz, 220V/60Hz, etc.

• Q: Do you provide installation and training?



  A: Yes, we provide overseas installation, commissioning, and operator training.



  Q: Can 100% recycled material be used?



  A: Yes, but the strength will decrease. It is recommended to mix with new material or use for inner layer of sandwich strap.
