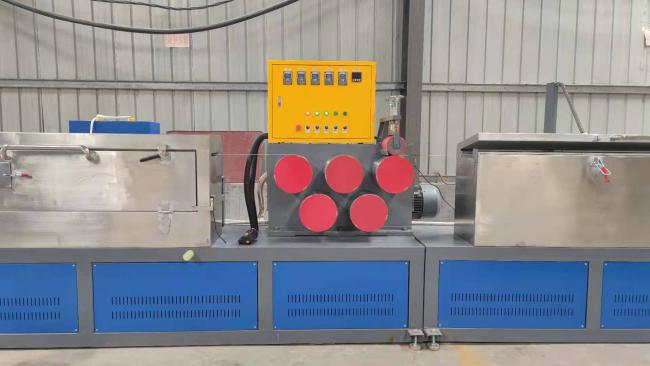

PLC Control PET Strap Extrusion Line 580-620KGS/H PET Strap Making Machine
PLC Control Plastic Steel Packing Polyester PET Strapping Tape Belt Making Machine 580-620KGS/H
PET strap production line configuration reference
| Item | Name | Quantity |
| 1 | Dehumidification and drying system | 1 set |
| 2 | Oil and dust filter | 1 set |
| 3 | Horizontal mixer(5000L) | 1 set |
| 4 | Pre-drying tower(5000L) | 1 set |
| 5 | Screw Feeder | 3 set |
| 6 | Barrel(5000L) | 1 set |
| 7 | ¢150mm Extruding Machine | 1 set |
| 8 | Melt pump | 1 set |
| 9 | Single cylinder filter | 1 set |
| 10 | PET Mould output 6straps | 1 set |
| 11 | Cooling water tank | 1 set |
| 12 | Stretching oven | 1 set |
| 13 | Five roller gearbox | 3 set |
| 14 | PLC electrical control system | 1 set |
| 15 | Forming oven | 1 set |
| 16 | Double disk winder |
6 set |
Application
PET belts production machine:
It is mainly suitable for packaging for various trades. The use of the product is convenient and it can adopt common steel fastening for connection. It also is suitable for various kinds of hand-operated of table packing machine and large auto-packaging machine of enterprises.
Process flow
PET packaging belt production line:
① feeding→② mixing raw materials→③ raw material pre-drying→④ vacuum dehumidification of raw materials→⑤ raw materials melting extrusion→⑥ material embryo expression(with embryo) cooling molding→⑦oven preheating→⑧first stretching→⑨second stretching→⑩embossing→⑪ oven tempering to set the shape→⑫ cooling → ⑬winding(finished product)
