Automatic winding PP strapping production equipment High-speed PP strapping production equipment
Automatic winding PP strapping production equipment High-speed PP strapping production equipment

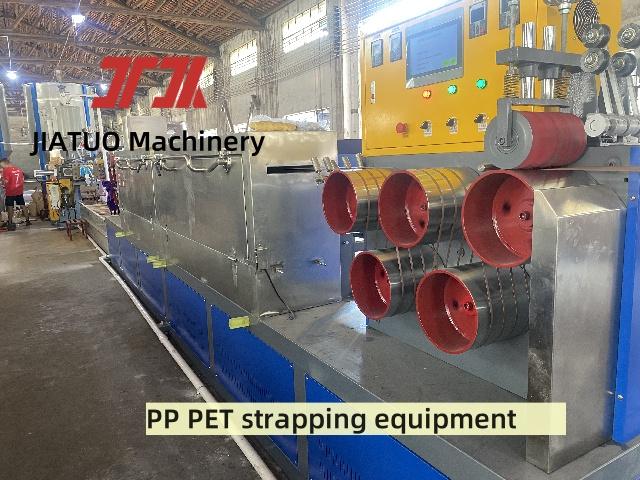

DESCRIPTION OF PP STRAPPING PRODUCTION EQUIPMENT
PP strapping production equipment
Name: PP strapping production equipment
Model number: JTPP-110
Applicable raw materials: New PP particles, PP recycled materials, PP crushed materials
Number of screws: 1 Screw
Number of extruded belts: 4
Width range: 5-19mm
Thickness range: 0.4-1.2mm
Production capacity: 200kg/h
Installation size: L38*W2.0*H4.0(m)
Screw-----The equipment adopts high-precision high-quality screws, adopts well-known brands, and has unique parameter design. It has the advantages of large extrusion volume, good plasticization, high hardness and wear resistance; equipped with a quantitative extrusion system, the width and thickness of the produced belts are the same, the error range is small, and it meets the national strapping tape acceptance standards;
Automatic screen changer------Equipped with a non-stop automatic screen changer, the screen does not need to be stopped, and the efficiency is maximized. 4-net circulation large-area filtration does not require frequent screen changes.
Configuration Of PP Strapping Production Line
| NO. | Name | QTY |
| 1 | Color Mixer | 1 set |
| 2 | Vacuum feeder or screw loader feeder (100% raw material use vacuum feeder machine;recycled material use screw loader feeder machine) customer choose one of it. |
1 set |
| 3 | Hopper dryer | 1 set |
| 4 | SJ single screw extruder | 1 set |
| 5 | High speed Screen exchanger device | 1 set |
| 6 | Molud | 1 set |
| 7 | Water cooling tank | 1 set |
| 8 | The first traction machine- 5 rollers | 1 set |
| 9 | The first Stretch forming oven | 1 set |
| 10 | The Second traction machine- 5 rollers | 1 set |
| 11 | The second Stretch forming oven | 1 set |
| 12 | The Third traction machine- 3 rollers | 1 set |
| 13 | Embossing machine | 1 set |
| 14 | The Winder machine | 1 set |
Features :
Easy to operate----The semi-automatic winding machine is simple in design and easy to operate. Workers can learn quickly without extensive training.
Small investment---PP tape making machine is energy-saving and environmentally friendly. It can be produced using PP polypropylene recycled materials and has low manufacturing costs.
Advanced technology-----PP tape making machine has advanced technology and uses high-precision accessories. The PP BELT produced is suitable for Automatic baling machines and semi-automatic baling machines.
FAQ ABOUT PP STRAPPING BAND EXTRUSION LINE
1. For PP(polypropylene) strapping band extrusion line
* What about the output of PP strapping band extrusion line? 150kg/hr, 280kg/hr, 500kg/hr.
* What about the size of strap that the PP strap machine can make? Width: 5-25mm; Thickness: 0.35-1.0mm;
* What about the installation power of the PP strap machine? 135kw/155kw/195kw/439kw;
2. For PET(polyester) strapping band extrusion line
* What about the output of PET strapping band extrusion line? 200kg/hr, 400kg/hr, 600kg/hr, 800kg/hr.
* What about the size of strap that the PET strap machine can make? Width: 9-32mm; Thickness: 0.35-1.2mm;
* What about the installation power of the PET strap machine? 215kw/285kw/352kw/900kw;
