INVT Inverter PET Strapping Band Production Line Machinery Brick Ceramics
INVT Inverter PET Strapping Band Production Line Machinery Brick Ceramics

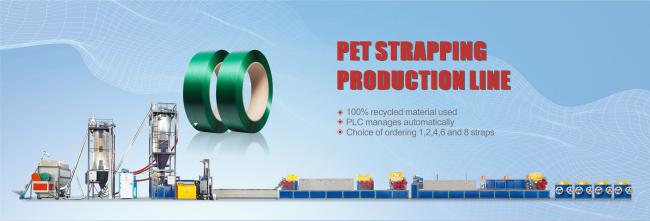

PET strapping band production line pet strap making machine Machinery Brick Ceramics
The PET packing belt production line is a complete set of equipment for producing PET strapping products by using bottle pieces of waste mineral water, Sprite, and Coke as raw materials.
Ingredients: Broken bottle pieces such as used mineral water, Sprite, and cola.
Technical Parameters of PET 1 to 2 production machine:
| Item | JTPET-90 |
| Screw design | Single screw |
| Straps Qty. | 2 straps |
| Output/Day | 5.5-6T/24 hours |
| Screw Dia. | 90mm |
| Winder Qty. | 2 sets |
| Material used | 100% Recycled Bottle Flakes/Virgin Material/mixed with |
| Running power | 110-120kw |
| Installed power | 200kw |
| Strap specifications | Width 9-32mm thickness 0.6-1.2mm |
| Workshop area | L (55m) ×W (2m) ×H (7m) |
| Electric components | Schneider |
| Materials | PET raw material or 100% PET bottle flakes recycled |
PET strap production line configuration reference:
|
Item |
Name |
Quantity |
|
1 |
Dehumidification and drying system |
1 set |
|
2 |
Oil and dust filter |
1 set |
|
3 |
Horizontal mixer(3000L) |
1 set |
|
4 |
Pre-drying tower(3000L) |
1 set |
|
5 |
Screw Feeder |
3 set |
|
6 |
Barrel(3000L) |
1 set |
|
7 |
¢90mm Extruding Machine |
1 set |
|
8 |
Melt pump |
1 set |
|
9 |
Single cylinder filter |
1 set |
|
10 |
PET Mould output 2straps |
1 set |
|
11 |
Cooling water tank |
1 set |
|
12 |
Stretching oven |
1 set |
|
13 |
Five roller gearbox |
3 set |
|
14 |
PLC electrical control system |
1 set |
|
15 |
Forming oven |
1 set |
|
16 |
Double disk winder |
2 set |
PET strapping and steel strap comparison:
- Appearance: The steel strip will rust due to exposure to moisture in the air. The strong rust permeability will easily contaminate the packaged object, and the PET strap will not rust, the color will be bright, and it is environmentally friendly. No need for steel buckle combination, no indentation, scratching,
- Economic Benefit: The length of 1 ton PET strapping is equivalent to 6 tons of steel belt. The unit price per meter is lower than steel belt, which can reduce the cost for you.
- Safety: PET plastic belt has no sharp edge of steel strip, will not scratch the package, and will not hurt the hand. Even if the binding is tight, it won't hurt when you cut it.
- Packaging performance: The coating tightness after packaging is good. After long-distance transportation of the package, there will be expansion and contraction, and the PET tape can maintain a good tension. PET steel strip has good ductility, good impact resistance, and is not easy to break, which ensures the safe transportation of your products.
- Economic Benefits: The density of PET plastic strip is only 1/6 of the density of steel strip, and the price per unit length is relatively low.
PET packing belt finished product features:
Made of POLYESTER (PET) material, commonly known as plastic steel belt, is made of polyethylene terephthalate as the main raw material, it is currently used as a substitute for steel belt in the world. A new type of environmentally-friendly packaging material has been widely used in the steel industry, chemical fiber industry, aluminum ingot industry, paper industry, brick kiln industry, screw industry, tobacco industry, after the development of new materials and the significant cost reduction in recent years. Electronics, textiles and wood.
- Tensile: PET plastic strip is a kind of packaging material with good tensile strength and excellent welding performance.
- The elongation is small: the elongation is only one-sixth of that of the polypropylene (PP) belt, and the tension can be maintained for a long time.
- Strong temperature resistance: melting point of 260 degrees, superior weather resistance, between -50 ° C -120 ° C, maintaining good stability.
