Polyester Polyethylene Terephthalate PET Straps Band Production Line Plastic Pet Strap Making Machine,PET plastic steel

Price Negotiable
Price: Negotiable
MOQ: 1 SET
Delivery Time: 50-60days
Brand: JIATUO CHINA
Product Description



Polyester Polyethylene Terephthalate PET Straps Band Production Line Plastic Pet Strap Making Machine,PET plastic steel

  PRODUCT DESCRIPTION OF PET STRAP MAKING MACHINE:

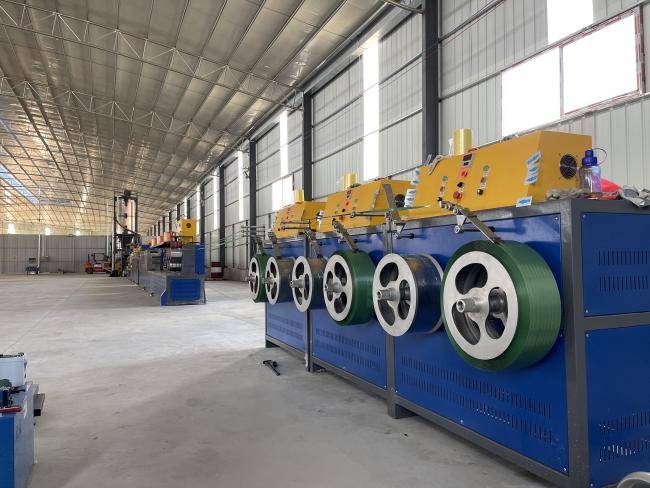

  This PET Strap Making Machine PET plastic-steel strapping equipment is a specialized production line that converts recycled or virgin polyethylene terephthalate (PET) into high-strength plastic strapping through a process including melting, extrusion, stretching, shaping, and winding. PET plastic-steel strapping is widely used for heavy-duty packaging in industries such as steel, aluminum, papermaking, chemical fiber, and building materials due to its high strength, corrosion resistance, aesthetic appeal, and recyclability

 FEATURES:

  • Product Name: PET Strap Making Machine
  • Strap Color: White/Black/Blue/Green Etc.
  • Strap Width: 9-32mm
  • Raw material: PET bottle flake material&100% broken material
  • Strap Core Material: Paper/Plastic/Aluminum
  • Features: Double cylinder/Single cylinder, 100% recycled bottle flakes material


Technical Parameters:

Model

Width

Thickness

Pull

Gross weight

Net weight

Paper core diameter

Length

Other models
PET-0950 9.0mm 0.50mm >150kg 20kg 18.5kg 200/406mm 3400m PET-1610
PET-1050 10.0mm 0.50mm >180kg 20kg 18.5kg 200/406mm 2900m PET-1970
PET-1250 12.0mm 0.50mm >210kg 20kg 18.5kg 200/406mm 2400m PET-1910
PET-1260 12.0mm 0.60mm >220kg 20kg 18.5kg 200/406mm 2000m PET-1912
PET-1360 13.0mm 0.60mm >250kg 20kg 18.5kg 200/406mm 1850m PET-2512
PET-1660 16.0mm 0.60mm >320kg 20kg 18.5kg 200/406mm 1500m PET-3512
PET-1670 16.0mm 0.70mm >370kg 20kg 18.5kg 200/406mm 1300m
PET-1680 16.0mm 0.80mm >450kg 20kg 18.5kg 200/406mm 1200m




PET plastic strapping (also known as PET strapping) production equipment is specialized for producing high-strength, environmentally friendly PET plastic strapping. Its key features include:

1. Efficient and Automated Production

Continuous Production------ PET equipment utilizes an integrated process for extrusion, cooling, stretching, shaping, and winding, resulting in a high degree of automation and high production efficiency, making it suitable for large-scale production.

Intelligent Control------- A PLC (Programmable Logic Controller) and touchscreen human-machine interface enable precise control of parameters (such as temperature, tension, and speed), minimizing manual intervention.

Quick Mold Change-------- Some equipment supports quick mold changes, enabling flexible production of plastic strapping in various widths (e.g., 9mm--25mm) and thicknesses. This is convenient and hassle-free.



PET strapping performance characteristics (determined by the production line): PET strapping manufactured on this production line possesses the following superior properties:

High strength---- Tensile strength can reach more than half that of steel strapping, far exceeding PP/plastic strapping.

High toughness------ Excellent impact resistance; not easily broken under sudden force.

Resistant to deformation: Low elongation, maintains tension for a long time, and the packaged items will not loosen for an extended period after packaging.

Good safety------ No steel spikes, does not injure hands, safe for bundling and opening operations.

Aesthetically pleasing and corrosion-resistant----- Smooth surface, clear printing, rust-free, and resistant to high temperatures, cold temperatures, and corrosion from various chemicals.

Recyclable----- Used strapping can be 100% recycled and reused, meeting environmental protection requirements.





FAQ:

Q1: What is the Brand Name of the PET Strap Making Machine?

A1: The Brand Name of the PET Strap Making Machine is JIATUO CHINA.

Q2: What is the Model Number of the PET Strap Making Machine?

A2: The Model Number of the PET Strap Making Machine is JTPET.

Q3: Where is the PET Strap Making Machine made?

A3: The PET Strap Making Machine is made in China.

Q4: What is the Certification for the PET Strap Making Machine?

A4: The Certification for the PET Strap Making Machine is IS CEO.

Q5: What is the Minimum Order Quantity for the PET Strap Making Machine?

A5: The Minimum Order Quantity for the PET Strap Making Machine is 1 SET.
