PLC controlled PET plastic steel belt production line PET extrusion equipment PET strapping equipment with green PET belt

Product Description of PET plastic steel belt production equipment:

PET plastic steel belt production line features:

1. Extrusion process--------PET tape making machine uses a special screw for extruder, which is evenly extruded by heating and melting.

2. Cooling and solidification------- The extruded PET tape embryo is then cooled and solidified using a cooling water tank or other refrigerator to ensure that the material maintains its shape and characteristics.

3. Stretching and orientation------- PET tape making machines usually include stretching and orientation sections to improve the tensile strength, flexibility and overall performance of the PET tape. This process aligns the molecules in the PET material to enhance its mechanical properties.

4. Embossed--------PET strap making machines may have an embossing section that creates a textured or patterned surface on the PET strap to improve grip and aesthetics.

5.Winding and Cutting------After producing the PET strap, the machine typically includes a winding and cutting mechanism to roll the strap into coils of the desired length for packaging and distribution.

6.Adjustable Parameters------ PET strap making machines typically offer PLC adjustable parameters such as strap width, thickness, color, and tension to customize the strap to specific requirements.

Technical Parameters of PET plastic steel belt production equipment:

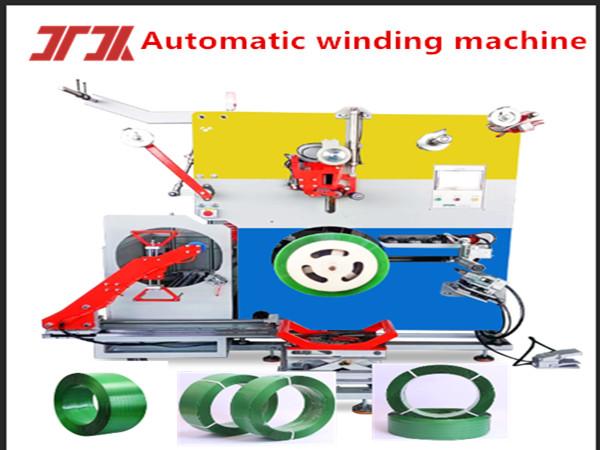

Automatic PLC Controlled Double-Position PET/PP Strap Winder

Automatic PLC controlled single station PET/PP tape winder, this PP PET winder is suitable for tapes with extrusion speeds up to 180-250 m/min. Each machine is equipped with a reel. The machine is equipped with a reinforced tension arm to control the winding tension. The inclinometer fixed on the reinforced tension arm converts the physical position signal of the tension arm into an electrical signal and sends it to the programmable logic controller (PLC). After data processing, the PLC controls the running speed of the winding motor and drives the paper tube fixed on the winding shaft to evenly wind the tape with constant tension.

The winding process does not require manual operation, and there is no need to replace the transmission gear.

Automatic winding, automatic rewinding, automatic stop, and automatic roll change.
