16mm transparent pet strap manufacturing machine high-speed PET strapping equipment PET production line
16mm transparent pet strap manufacturing machine high-speed PET strapping equipment PET production line
Product Description of PET strap manufacturing machine:
pet strap manufacturing machine
Features :
1. Good tensile strength----pet strap manufacturing machine has the tensile strength of steel tape, good ductility, good impact resistance, not easy to break, and ensures the safety of product transportation.
2. Small elongation----Although PET strapping belt is a kind of plastic, its elongation changes very little, and its elongation is only 1/6 of polypropylene. It can maintain tension and make the expansion and contraction amount no longer change after packaging.
3. Strong temperature resistance----Experiments have proved that the melting point of PET strapping belt is about 260℃, and it can be used for a long time at 120℃ without deformation, and has good stability.
4. Good economic benefits----The density of PET strapping belt is 1.30~1.38g/cm3, which is only 1/6 of the density of steel tape (7.8g/cm3), equivalent to the length of 6-ton steel tape, and the price per unit length is relatively low.
Raw Materials-------

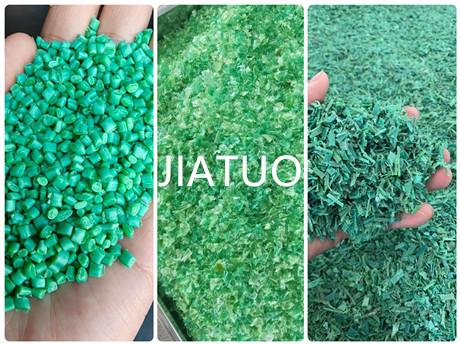

High-end PET strapping can be produced using 100% PET bottle flakes or crushed material.
PRODUCT DESCRIPTION
| Model | PET-2 | PET-3 | PET-4 | PET-6 | PET-8 |
| Raw materials | Bottle flakes/crushed materials | ||||
| Number of tapes | 2 | 3 | 4 | 6 | 8 |
| Width (mm) | 9-32 | ||||
| Thickness (mm) | 0.4-1.2 | ||||
| Maximum line speed(m/min) | ≧150 | ≧150 | ≧150 | ≧150 | ≧150 |
| Screw Model | 90 | 100 | 125 | 150 | 180 |
| Reducer model | 200 | 250 | 280 | 315 | 350 |
| Dehumidifier | 1000 | 1000 | 2000 | 3000 | 3500 |
| Metering Pumps | 100CC | ||||
| Production capacity /24 H | 5-6T | 7-8T | 10-12T | 12-15T | 18-20T |
pet strap manufacturing machine extrusion process:
Horizontal feeder -------mix different PET crushed materials or bottle flakes evenly.
Drying barrel ------ heat the PET raw materials to dry the moisture.
Dehumidifier--------remove the moisture in the PET raw materials.
Extrusion molding-------make the molten PET belt blank pass through the mold to form.
Cooling water tank-------cool the extruded PET belt blank to ensure its molding.
Tractor--------tow the cooled PET strapping belt to maintain a stable production speed.
Stretcher--------stretch the formed PET belt instantly, about 1-10 times
Oven--------heat the strapping belt to improve the toughness of the PET belt.
Embossing machine------emboss the surface of the strapping belt to increase friction and prevent slipping.
Forming oven--------heat and shape again to make the PET belt more standardized.
Rewinder---------roll the strapping belt into a roll for easy storage and transportation.
FQA:
Q: What is the voltage of the pet strap manufacturing machine ?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the pet strap manufacturing machine?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the pet strap manufacturing machine?
A: 9-32mm
Q: Can the pet strap manufacturing machine be customized?
A: Customization supported
Q: Where does the pet strap manufacturing machine come from?
A: China.
Q: What are the certifications for the pet strap manufacturing machine?
A: ISO CEO certification.
Q: What is the minimum order quantity for the pet strap manufacturing machine?
A: 1 set
Q: What is the weight of the pet strap manufacturing machine?
20T, 40GP container * 3PCS
