100cc metering pump PET plastic steel belt equipment single screw PET plastic steel belt production line
100cc metering pump PET plastic steel belt equipment single screw PET plastic steel belt production line
INTRODUCTION OF PET STRAP MAKING MACHINE
Extrusion process:
Horizontal feeder ----mix different PET crushed materials or bottle flakes evenly.
Drying barrel ------ heat the PET raw materials to dry the moisture.
Dehumidifier--------remove the moisture in the PET raw materials.
Extrusion molding-------make the molten PET belt blank pass through the mold to form.
Cooling water tank-------cool the extruded PET belt blank to ensure its molding.
Tractor--------tow the cooled PET strapping belt to maintain a stable production speed.
Stretcher--------stretch the formed PET belt instantly, about 1-10 times
Oven--------heat the strapping belt to improve the toughness of the PET belt.
Embossing machine------emboss the surface of the strapping belt to increase friction and prevent slipping.
Forming oven--------heat and shape again to make the PET belt more standardized.
Rewinder---------roll the strapping belt into a roll for easy storage and transportation.

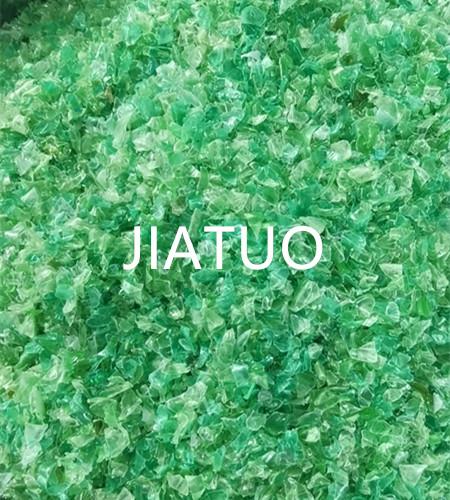

Raw material: 100% PET bottle flakes
Raw material: 100% PET crushed material
Technical parameters of PET belt 4 output production line
| Screw model | 100 (Single screw or double screw) |
| Number of strap | 4 straps |
| Width | 9-32mm |
| Thickness | 0.4-1.2mm |
| Screen changer | Automatic/Manual |
| Control system | PLC control(Chinese and English) |
| Production capacity | 220-600kg/H |
| Reducer Brand | GUOMAO |
| Motor Brand | Gugao |
| Pull of finial product | 150kg-1500kg |
| Line speed | More than 160-220m/min |
| Metering pump | 100CC |
| Material | PET crushed material/bottle flake material |

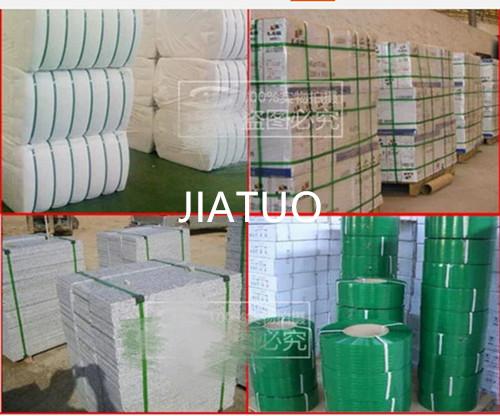

Advantages of PET plastic steel straps:
Environmental protection-----PET material can be recycled and regenerated, in line with environmental regulations. And there are no sharp edges after packaging, avoiding scratches on goods or people, and meeting logistics safety standards.
Easy to operate------Good flexibility, easy and safe operation, no sharp edges of steel straps, will not scratch the packaging, even if it is tied tightly, it will not hurt people when cut open
FAQ
Q: What is the voltage of the PET plastic steel belt equipment?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt equipment?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET plastic steel belt equipment?
A: 9-32mm
Q: Can the PET plastic steel belt equipment be customized?
A: Customization supported
Q: Where does the PET plastic steel belt equipment come from?
A: China.
Q: What are the certifications for the PET plastic steel belt equipment?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET plastic steel belt equipment?
A: 1 set
Q: What is the weight of the PET plastic steel belt equipment?
20T, 40GP container * 3PCS
