1-6 strip PET tape making machine 9-32 mm PET plastic steel tape equipment with automatic winding machine
1-6 strip PET tape making machine 9-32 mm PET plastic steel tape equipment with automatic winding machine

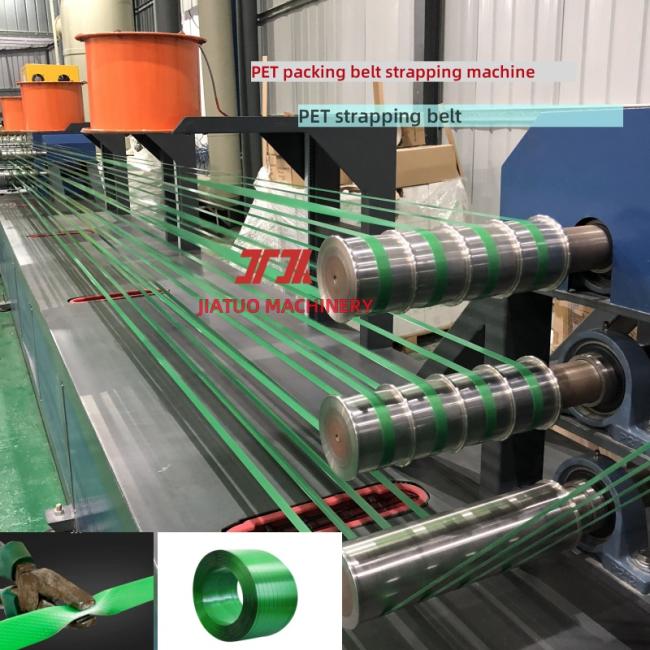

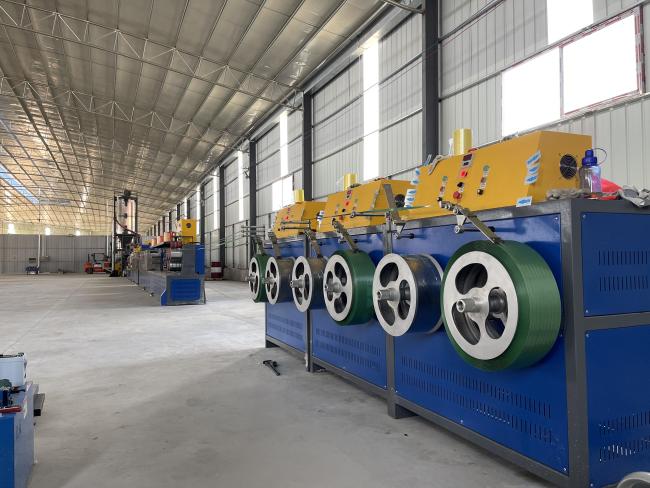

PRODUCT DESCRIPTION OF PET STRAPPING EQUIPMENT
PET plastic-steel strapping equipment is a specialized production line that converts recycled or virgin polyethylene terephthalate (PET) into high-strength plastic strapping through a process including melting, extrusion, stretching, shaping, and winding. PET plastic-steel strapping is widely used for heavy-duty packaging in industries such as steel, aluminum, papermaking, chemical fiber, and building materials due to its high strength, corrosion resistance, aesthetic appeal, and recyclability.
1. Width----The PET belt production line is an energy-saving and environmentally friendly plastic extruder that can produce PET belts with specifications: width: 9-32mm, thickness 0.6-1.2mm.
2. Raw materials----- The PET plastic steel belt production line can use PET bottle flakes or PET recycled materials to produce PET belts, which is an environmentally friendly manufacturing process.
3. Dehumidifier------ The dehumidification function of the PET plastic steel belt equipment is one of the important choices for this production line, and the dehumidification air volume is 1000-2000.
4. Metering pump------The PET plastic steel belt equipment is equipped with a metering pump, 100CC-150CC, which has the advantages of uniform extrusion and consistent specifications.

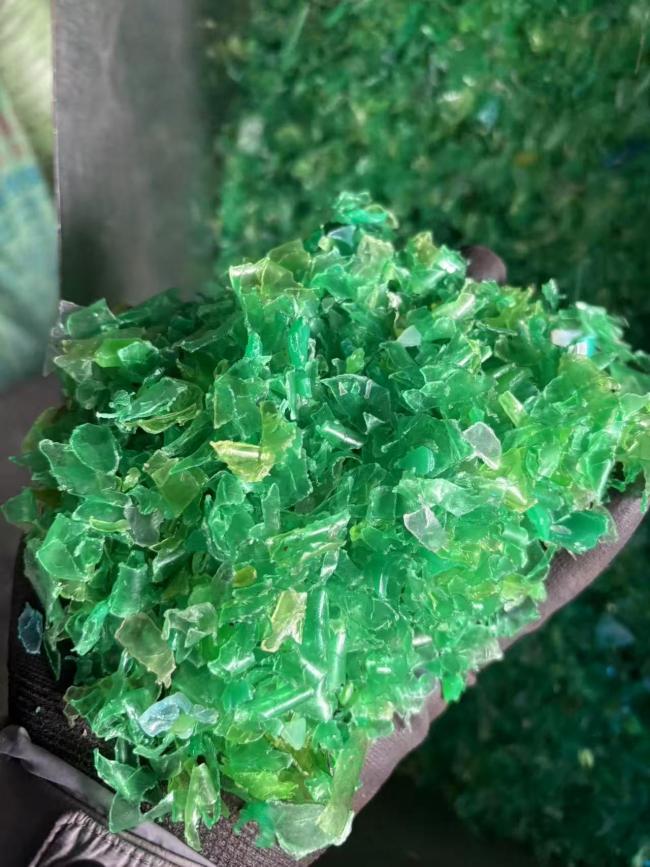

Raw material---------
100% PET bottle flakes or crushed material
EXTRUSION PARAMETERS TABLE
| Model | PET-2 | PET-3 | PET-4 | PET-6 | PET-8 |
| Raw materials | Bottle flakes/crushed materials | ||||
| Number of tapes | 2 | 3 | 4 | 6 | 8 |
| Width (mm) | 9-32 | ||||
| Thickness (mm) | 0.4-1.2 | ||||
| Maximum line speed(m/min) | ≧150 | ≧150 | ≧150 | ≧150 | ≧150 |
| Screw Model | 90 | 100 | 125 | 150 | 180 |
| Reducer model | 200 | 250 | 280 | 315 | 350 |
| Dehumidifier | 1000 | 1000 | 2000 | 3000 | 3500 |
| Metering Pumps | 100CC | ||||
| Production capacity /24 H | 5-6T | 7-8T | 10-12T | 12-15T | 18-20T |
FEATURES:
Extrusion process-----PET belt making machine uses a special screw for extruder, which is evenly extruded by heating and melting.
Cooling and solidification----The extruded PET belt embryo is then cooled and solidified using a cooling water tank or other refrigerator to ensure that the material maintains its shape and characteristics.
Stretching and orientation----PET belt making machines usually include stretching and orientation parts to improve the tensile strength, flexibility and overall performance of the PET belt. This process aligns the molecules in the PET material to enhance its mechanical properties.
FAQ:
Q: What is the voltage of the PET plastic steel belt equipment?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt equipment?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET plastic steel belt equipment?
A: 9-32mm
Q: Can the PET plastic steel belt equipment be customized?
A: Customization supported
Q: Where does the PET plastic steel belt equipment come from?
A: China.
Q: What are the certifications for the PET plastic steel belt equipment?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET plastic steel belt equipment?
A: 1 set
Q: What is the weight of the PET plastic steel belt equipment?
20T, 40GP container * 3PCS
