Portable Detachable Electric Handheld V2 Strapping Machine Battery Powered CE Certified

Price Negotiable
Price: Negotiable
MOQ: 1 Set
Delivery Time: 10~15working days
Brand: JIATUO
Product Description

Portable Detachable Electric Handheld V2 Strapping Machine Battery Powered CE Certified

Parameter of battery packing machine


Place of Origin
China
Provinces
Shanghai
Material
PET/PP
Product size
380*130*130mm
System Control
button display screen
Sealing method
friction heat fusion
Welding time
0.5~3.5S
Tightening speed
100~200MM/S
Maximum pulling force
3200N
Cell rate
5C
Battery weight
0.58KG
Bare machine weight
3.1KG
Voltage
14.4V
Battery capacity
4000MAH
Packing tape width
13-16MM
Packing tape thickness
0.5-1.2MM
Battery life
It takes 90minutes to fully charge and can sew 250~300 straps
Standard configuration
machine, battery, charger, accessory kit, manual, tool kit

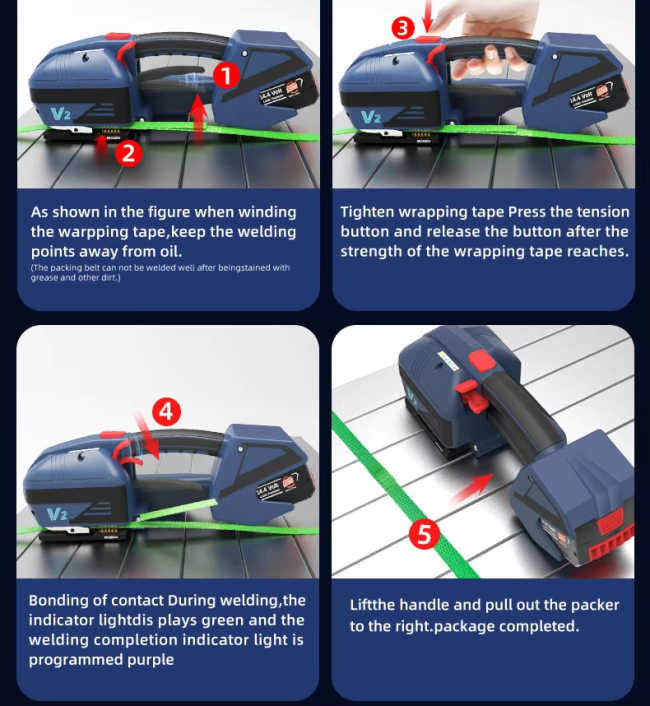

Handheld battery strapping machine Operation Shows

  1. Wrap the packing strap as shown in the diagram, with one end placed at the bottom.

  2. Lift the handle with your right hand, thread the strap with your left hand, align the top and bottom layers in parallel, then release the handle.

  3. Press the tension switch and release it once the strap is tightened to the desired strength.

  4. Press the welding button and immediately release your hand. The strap will be welded and the excess will be cut off automatically, completing the weld.

  5. Lift the handle to release the strap, then move the baler to the right to disengage it from the strap.


It is an electric strapping machine specifically designed for PET PP plastic strapping. It integrates tensioning, heat sealing, and cutting in one compact tool.
With just a single trigger press, it completes a full strapping cycle in 5 seconds — no additional tools or seals required.

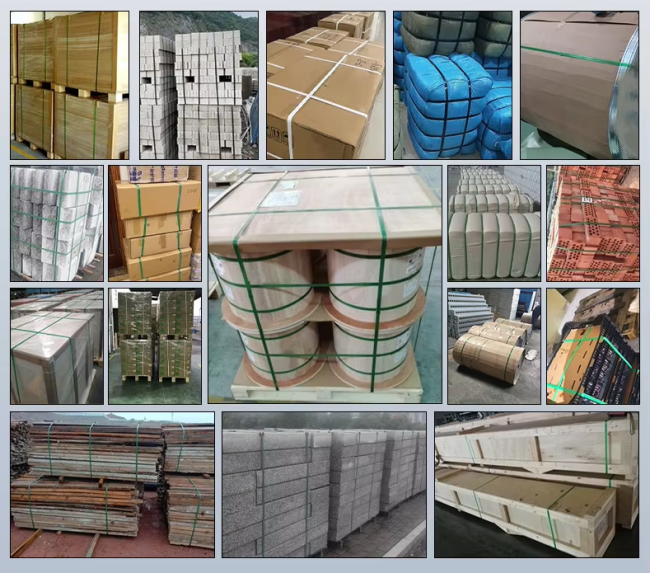

Application of battery packing machine


Semi-automatic Electric Strapping machine widely used in food, medicine, hardware, chemical, clothing, postal and other industries. They are suitable for carton packaging, pallet packaging, paper packaging, parcel letter packaging, medicine box packaging, light industry packaging, hardware tool packaging, ceramic product packaging, auto parts packaging, automatic packaging and packaging of various sizes of goods.

FAQ


Q1. Why choose us?

A: We have been producing packing belts and packaging machines for more than 10 years. We provide quality products at reasonable prices.

Q2: Are you a factory or a trading company?

A: We are a factory.

Q3: How to choose the suitable machine?

A: We will recommend the most suitable machine for you after we know your application requirements. We will offer good suggestions for your reference.

Q4: What if we are not able to use the machine when we receive it?

A: Every machine has an instruction book, and there are installation and operating parts. Besides, we also have video demonstration

Q5: Can you send me the video to show how the machine work?

A: Of course! We have made video of every machine. Pls. contact with us, we will send you the machine video.
