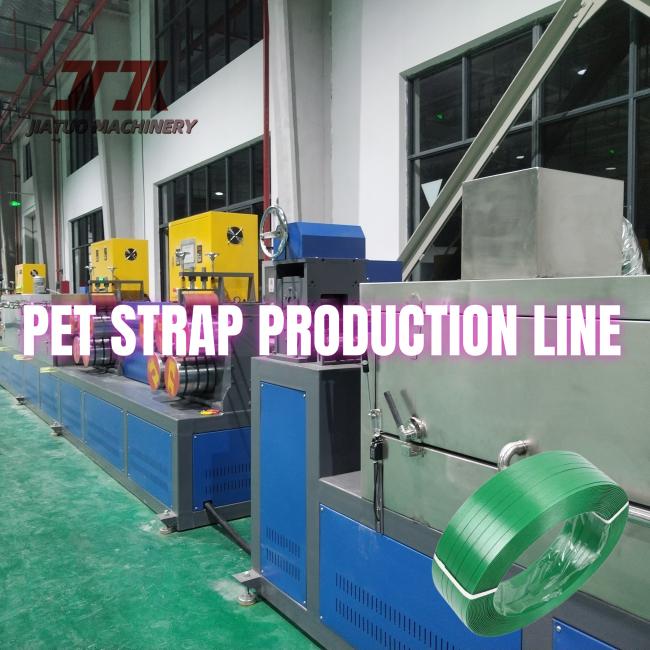

220-250KG/H PET Steel Packing Strap Making Machine With 4000L Dehumidification Barrel
220-250KG/H PET Steel Packing Strap Making Machine With 4000L Dehumidification Barrel
What advantage of JIATUO PET strap making machine?

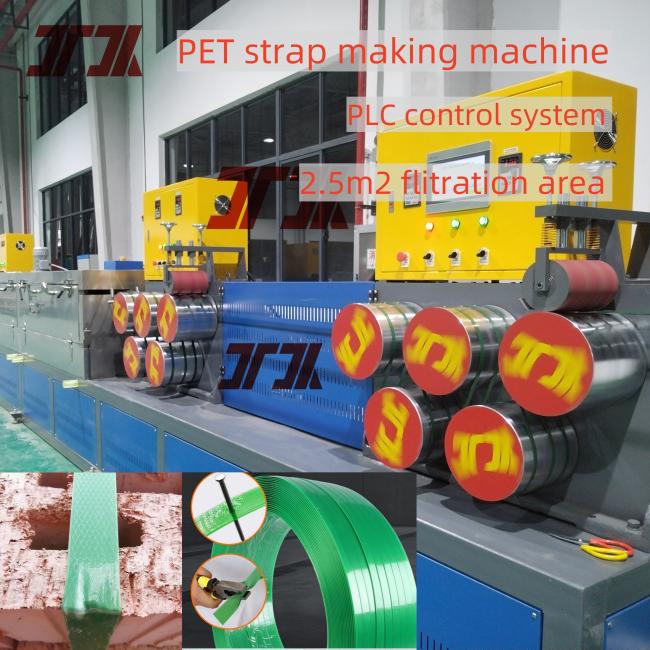

1. The entire production line is controlled by a PLC system, achieving uniform plasticization and stable extrusion.
2. The screen changer uses a chemical fiber filter with a filtration area of up to 4.5 square meters, allowing for 5-6 days without screen replacement, greatly improving production efficiency.
3. Output: 2/4/6/8/10 straps , customizable according to customer requirements.
Parameters of JIATUO PET strap production machine
| Model | Capcity (kg/h) | Strap Size | Power(kw) | Manpower |
| JT-PET90 | 220-250KG/H | 9-32mm | 85 | 1-2 |
| JT-PET110 | 300-330KG/H | 9-32mm | 100 | 1-2 |
| JT-PET125 | 400-450KG/H | 9-32mm | 110 | 1-2 |
| JT-PET130 | 480-500KG/H | 9-32mm | 200 | 1-2 |
The process fiow of PET strap making machine as below
Horizontal mixer→Crystallizing and drying system →filter material→Extruder→ Cooling Tank→pre-heating Oven→ first Stretching →second stretching→Embossing machine →shaping oven→ cooling →Haul-off machine →Winder
Tip: if you need printing on the strapping, setting printing machine before embossing.
Application of PET strapping
- Building Materials Industry
It is used for bundling heavy building materials like cement, gypsum boards, ceramic tiles, stone materials, aluminum profiles, and steel products. Its high tensile strength and breakage resistance can effectively prevent building materials from scattering and deforming during long-distance transportation. Unlike steel strapping, it will not rust and contaminate products.
- Metallurgy and Metal Processing Industry
It is applied to bundle heavy metal products including steel pipes, steel plates, steel bars, and metal castings. PET strapping has better ductility and cushioning performance than steel strapping, which can avoid scratching the metal surface. Meanwhile, it can bear the weight of metal materials, meeting the stringent requirements of long-distance transportation by sea and land.
- Glass Industry
It is used for bundling fragile items such as raw glass sheets and glass products. When matched with special packing buckles or hot-melt joints, it can realize firm and uniform stress bundling, reducing the breakage of glass caused by jolting and extrusion during handling and transportation, and improving packaging safety.
FAQ about JIATUO PET strap making machine
For PET(polyester) strapping band extrusion line
* What about the output of PET strapping band extrusion line? 110kg/hr, 180kg/hr, 250kg/hr, 330kg/hr.
* What about the size of strap that the PET strap machine can make? Width: 9-32mm; Thickness: 0.4-1.2mm;
* What about the installation power of the PET strap machine? 150kw/200kw/250kw/300kw;
