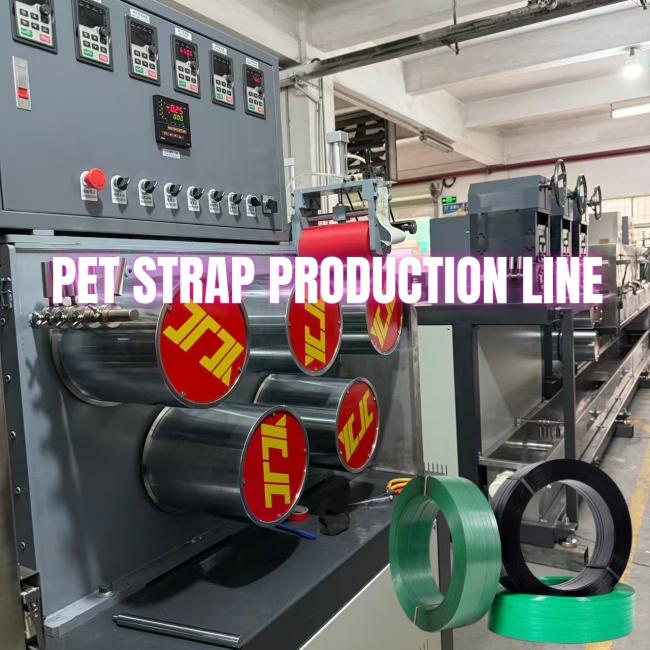

9-32mm Pet Strap Making Machine With Large Area Filter 48H No Need Change Filter
9-32mm Pet Strap Making Machine With Large Area Filter 48H No Need Change Filter
The process fiow of PET strap making machine as below
Horizontal mixer→Crystallizing and drying system →filter material→Extruder→ Cooling Tank→pre-heating Oven→ first Stretching →second stretching→Embossing machine →shaping oven→ cooling →Haul-off machine →Winder
Parameters of PET strap production machine
| Model of machine | Total power | Running power | Capacity |
| PET1-2 90MM | 200KW | 110-120KW | 150-180K/H |
| PET1-3 110MM | 250KW | 150-160KW | 300-330KG/H |
| PET1-4 125MM | 300KW | 180-190KW | 400-450KG/H |
Advantages of JIATUO PET packing belt production line
- high output PET strap line (5–20T/24H)
- high speed extrusion line ≥150m/min
- multi-strand PET strap production (2–8 straps)
- reduced maintenance cost (five-roll traction system)
Part of JIATUO PET strap making machine
1. Single screw extruder with automatic mixing and feeding system
- Handle varying qualities of PET flakes
- Maintain stable operation under high temperatures
- Ensure compatibility with automatic strapping systems
- Reduce downtime caused by material inconsistency
1. For PP(polypropylene) strapping band extrusion line
* What about the output of PP strapping band extrusion line? 120kg/hr, 260kg/hr, 380kg/hr.
* What about the size of strap that the PP strap machine can make? Width: 5-19mm; Thickness: 0.3-1.2mm;
* What about the installation power of the PP strap machine? 60kw/80kw/90kw/110kw;
2. For PET(polyester) strapping band extrusion line
* What about the output of PET strapping band extrusion line? 110kg/hr, 180kg/hr, 250kg/hr, 330kg/hr.
* What about the size of strap that the PET strap machine can make? Width: 9-32mm; Thickness: 0.4-1.2mm;
* What about the installation power of the PET strap machine? 150kw/200kw/250kw/300kw;
