PET strap making equipment 16mm PET Strap Making Machine Production Line with PLC control systenm

PET strap making equipment 16mm PET Strap Making Machine Production Line with PLC control systenm

Description of PET strap band production machine

PET strapping production equipment /PET strap making machine is a high-speed, environmentally friendly extrusion machine that can produce PET strapping with a width of 9-32mm. The finished PET strapping is an environmentally friendly polymer material widely used in packaging and bundling. Its excellent comprehensive performance has gradually replaced traditional steel strapping and PP strapping, making it the preferred bundling material for heavy industries such as logistics, chemicals, building materials, glass, chemical fibers, brick factories, and aluminum.

RAW MATERIALS

PET plastic steel belt can use raw materials: 100% bottle flakes or crushed materials or thickening granular materials

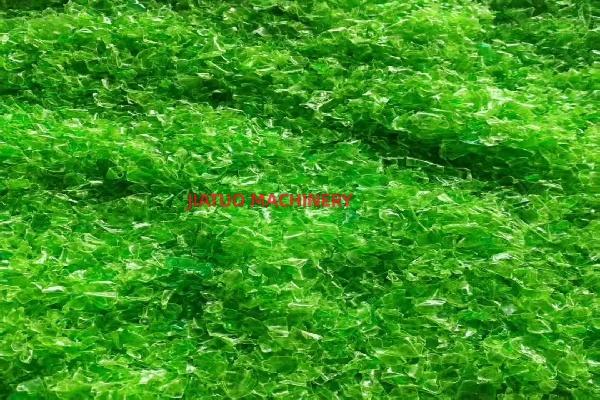

1. Bottle flakes--- waste mineral water, Sprite, Coke and other bottle flakes as raw materials, after crushing, cleaning, drying materials.

2. Crushed materials---- finished PET plastic steel belt after crushing, screening, cleaning, drying raw materials;

3. Thickening granular materials----PET crushed materials after processing, cleaning, thickening granular materials

                                                       Extrusion parameters

PET packaging belt production line process flow

① feeding→② mixing raw materials→③ raw material pre-drying→④ vacuum dehumidification of raw materials→⑤ raw materials melting extrusion→⑥ material embryo expression(with embryo) cooling molding→⑦oven preheating→⑧first stretching→⑨second stretching→⑩embossing→⑪ oven tempering to set the shape→⑫ cooling → ⑬winding(finished product)


Raw Materials-----PET bottle flakes / polyester granules, or crushed PET scrap.

FEATURES:

Compatible with production utilizing 100% recycled materials. The entire production line integrates core units such as pre-crystallization and drying, specialized screw extrusion, rapid hydraulic screen changing, precision die heads, multi-stage oven stretching, shaping, embossing, and dual-station automatic winding. This enables fully automated, continuous, and high-speed production—from raw materials to finished strapping bands—and is managed by a PLC control system, thereby reducing manufacturing costs.

Features of PET plastic steel belt equipment:

1. Adopt special PET extruder dedicated screw, extrusion energy can be customized according to customer requirements.

2. Can use 100% recycled PET bottle flakes or broken material pellets for production.

3. The main machine extrudes evenly, the die head flow channel extrudes stably, and the whole line is automatically controlled by PLC.

4. According to different requirements, the coating material is replaced to make the strap have better stretching ability.

5. Equipped with melt filter, ventilation design and backwashing function.

6. Number of straps: 1-8 straps, support customization.

OUR FACTORY SPECIALIZES IN:

PP/PET strapping machines, PP strapping, PET packing belt, Automatic strapping machines, Semi-automatic strapping machines, etc. We currently have our own factories (4 pcs):

PET/PP strapping equipment manufacturing plant: 1 pcs

PET packing belt manufacturing plant: 1 pcs

PP strapping manufacturing plant: 1 pcs

Automated equipment factory: 1 pcs

FAQ

Q:What is the voltage of PET strap making equipment?
A:380V/50HZ, we support customization
Q:Can the PET strapping production equipment be customized according to the factory length?
A:Yes, we can customize the length according to the customer's factory size.
Q:Where is the PET strapping equipment produced?
A:We are from China.
Q:Can PET strapping equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PET strapping equipment stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PET strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
