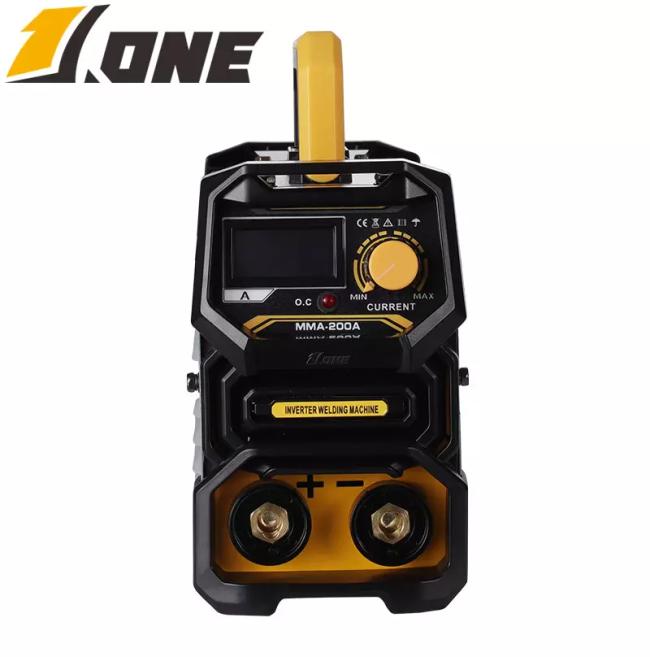

TIG MMA 200A Arc Welding Machine , Custom TIG Welder Equipment
Custom Low Moq TIG MMA 200A Arc Welding Machine TIG Welder Equipment
TIG welding allows you to remove limits of the welding machine without sacrificing much. This type of welding machine is a combination between fusion welding and gas tungsten arc welding (GTAW) that can work both separately as well as together to do the welding process. It allows you to use different electrodes for different materials on the job.
TIG welding may not be the best option for all kinds of businesses, but it has a lot of benefits. Some works that requires multiple welds or require code requirements such as piping; nuclear work and high profile consumer products regularly require at least the primary weld in the pipe joint to be TIG for an efficient connection.
technical parameter
| Model | TIG/MMA-200A |
| Type | IGBT 1PCB |
| Real Amp(A) | 160 |
| AC Input Voltage(V) | 220V(110V/220V can do) |
| Rated Input Power Capacity(KVA) | 7 |
| Input Frequency(Hz) | 50/60 |
| Non-load Voltage(V) | 56 |
| Output current range(A) | 20-200 |
| Rated Duty Cycle(%) | 60% |
| Efficiency(%) | 85% |
| Class of Insulation | F |
| Protection class of case | IP21 |
| Quick joint Size(mm) | 35-50 |
| Input power cable(m) | 1.8 |
| N.W./G.W.(kg) | 4.5/8.3KG |
| Machine Size(LxWxH mm) | 420*160*310 |
| Package(LxWxH mm) | 455*270*355 kraft paper box+ foam |
| Accessories | 1.8M 16mm2 200A holder |
| 1.2M 16mm2 300A clamp | |
| 4M WP-17 Black Torch | |
| Brush, Mask, Manual |
