50/60HZ High Frequency Aluminum Welding Machine / Mma 300 Welding Machine
Price:
Negotiate
MOQ:
500
Delivery Time:
4 WEEKS
Brand:
JONE
Product Description
maquinas de soldar china inverter maquina de solda inversora manual metal arc weldeing machine other arc welders
technical parameter
| Model | MMA-200C | MMA-250C | MMA-300C |
| Type | IGBT 1PCB | IGBT 1PCB | IGBT 1PCB |
| AC Input Voltage(V) | 220V (110V/220V can do) | 220V (110V/220V can do) | 220V (110V/220V can do) |
| Rated Input Power Capacity(KVA) | 5 | 6.2 | 7 |
| Input Frequency(Hz) | 50/60 | 50/60 | 50/60 |
| Non-load Voltage(V) | 56 | 56 | 56 |
| Output current range(A) | 20-200 | 20-250 | 20-300 |
| Rated Duty Cycle(%) | 60% | 60% | 60% |
| Efficiency(%) | 85% | 85% | 85% |
| Class of Insulation | F | F | F |
| Protection class of case | IP21 | IP21 | IP21 |
| Electrode diameter (mm) | 1.6-3.2 | 1.6-3.2 | 1.6-4.0 |
| Quick joint Size(mm) | 35-50 | 35-50 | 35-50 |
| Input power cable(m) | 1.8 | 1.8 | 1.8 |
| N.W./G.W.(kg) | 3.8/5.6 | 4/5.8 | 4.2/6 |
| Machine Size(LxWxH mm) | 420*160*310 | 420*160*310 | 420*160*310 |
| Package(LxWxH mm) | 455*270*355 kraft paper box | 455*270*355 kraft paper box | 455*270*355 kraft paper box |

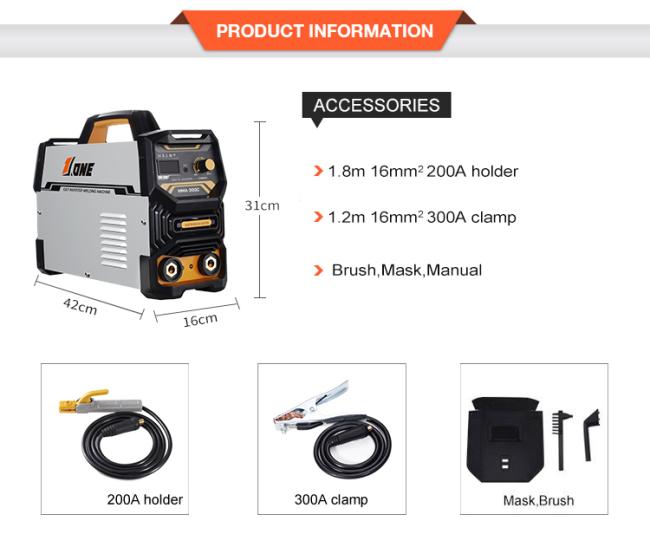

| Accessories | 1.8m 16mm² 200A holder | 1.8m 16mm² 200A holder | 1.8m 16mm² 200A holder |
| 1.2m 16mm² 300A clamp | 1.2m 16mm² 300A clamp | 1.2m 16mm² 300A clamp | |
| mask,brush,belt,manual | mask,brush,belt,manual | mask,brush,belt,manual |
