Arc 315 MOS 3PCB Mosfet Inverter Welding Machine Lightweight
Price:
Negotiate
MOQ:
100
Delivery Time:
4 WEEKS
Brand:
JONE
Product Description
Arc 315 MOS 3PCB Mosfet Inverter Welding Machine Lightweight
Description
- MMA welder is a great choice for welding, not only because it's powerful and reliable, but also because of its water-resistant design. You can use this welder in rain or even in the snow without worrying about getting wet. The [product name] MMA welder also has an excellent cooling system which ensures that the machine will keep working even if it gets too hot. Finally, the [product name] MMA welder comes with multiple safety features to keep you safe while welding.
- It is capable of producing high-quality welds quickly and easily thanks to its advanced inverter technology. This means that your work will be done quickly and efficiently without any wasted time or energy being used up unnecessarily on each weld. With its low consumption rate and high output, this machine is great for large projects as well as small ones!
technical parameter
| Model | MMA-250M | MMA-280M | MMA-315M |
| Type | MOS 3PCB | MOS 3PCB | MOS 3PCB |
| AC Input Voltage(V) | 220V (110V/220V can do) | 220V (110V/220V can do) | 220V (110V/220V can do) |
| Rated Input Power Capacity(KVA) | 7 | 7.7 | 9.2 |
| Input Frequency(Hz) | 50/60 | 50/60 | 50/60 |
| Non-load Voltage(V) | 56 | 56 | 56 |
| Output current range(A) | 20-250 | 20-280 | 20-315 |
| Rated Duty Cycle(%) | 60% | 60% | 60% |
| Efficiency(%) | 85% | 85% | 85% |
| Class of Insulation | F | F | F |
| Protection class of case | IP21 | IP21 | IP21 |
| Electrode diameter (mm) | 1.6-4.0 | 1.6-5.0 | 1.6-5.0 |
| Quick joint Size(mm) | 35-50 | 35-50 | 35-50 |
| Input power cable(m) | 1.8 | 1.8 | 1.8 |
| N.W./G.W.(kg) | 5.3/6.8 | 6/7.5 | 11/13 |
| Machine Size(LxWxH mm) | 420*160*310 | 420*160*310 | 480*215*380 |
| Package(LxWxH mm) | 455*270*355 kraft paper box | 455*270*355 kraft paper box | 540*295*425 kraft paper box |

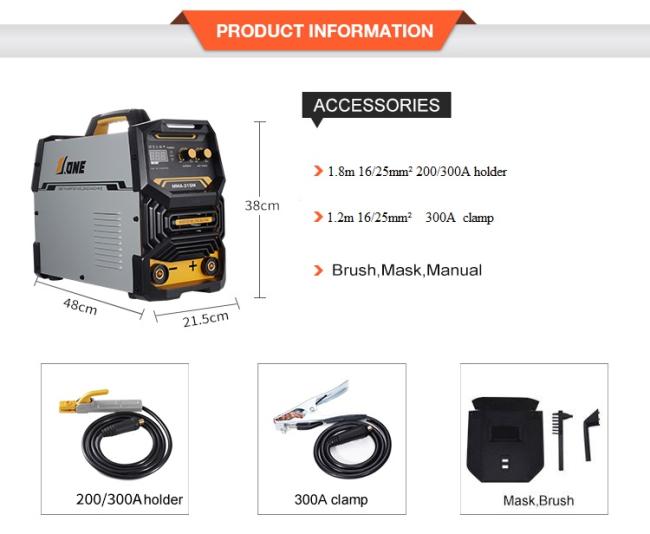

| Accessories | 1.8m 16mm2 200A holder | 1.8m 16mm2 200A holder | 1.8m 25mm2 300A holder |
| 1.2m 16mm2 300A clamp | 1.2m 16mm2 300A clamp | 1.2m 25mm2 300A clamp | |
| Brush,Mask,Manual | Brush,Mask,Manual | Brush,Mask,Manual |
