Mig-270D Industrial MIG Welder single phase IP21 No Gas Mig Welding Machine
Mig-270D Industrial MIG Welder single phase IP21 No Gas Mig Welding Machine
MIG welding has been around for almost a century. Invented in 1915, it is the most popular process used to weld together metal parts. The process uses electricity and an inert filler gas to create an arc that melts the material at the joint so it can be welded together. MIG welding is also called wire wheel welding because of the way wire is fed into the weld joint using a wire feed. The wire feeder has a trigger that when squeezed starts the welding process. The electrodes are held by grips, which are made of tungsten carbide or imbedded graphite rods, each channeled down one side of the handle to keep them cool while they are being used.
MIG welding is an easy and simple process that makes working with metal a breeze. The wire feed makes sure there is a solid weld joint every time and the shielding gas protects your work piece from any harsh environment. This can be used to create parts in a variety of materials and finishes, including stainless steel.
technical parameter
| Model | MIG/MMA/TIG-270D |
| Type | IGBT, ≤ 5kg, Gas/Gasless type |
| AC Input Voltage(V) | 220V(110V/220V can do) |
| Rated Input Power Capacity(KVA) | 6 |
| Input Frequency(Hz) | 50/60 |
| Non-load Voltage(V) | 52 |
| Output current range(A) | 20-270 |
| Rated Duty Cycle(%) | 60% |
| Efficiency(%) | 85% |
| Class of Insulation | F |
| Protection class of case | IP21 |
| Wire diameter(mm) | 0.8/1.0 |
| Wire weight(kg) | ≤ 5kg |
| Quick joint Size(mm) | 35-50 |
| Input power cable(m) | 1.8 |
| N.W./G.W.(kg) | 8.8/11.8 |
| Machine Size(LxWxH mm) | 460*185*330 |
| Package(LxWxH mm)/ 8 in 1 | 535*265*370 kraft paper box+ foam |

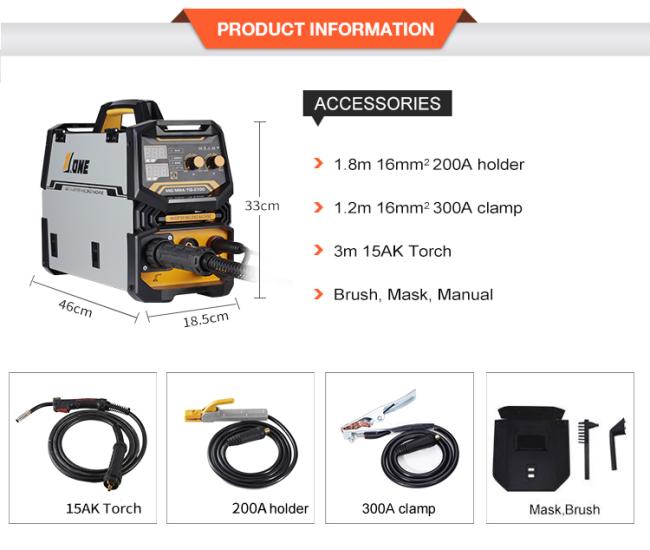

| Accessories | 1.8M 16mm2 200A holder |
| 1.2M 16mm2 300A clamp | |
| 3m 15AK Torch | |
| Brush, Mask, Manual |
