110V 220V 200 Amp Inverter Welding Machine
110/220V 200 MMA arc welder machine with IGBT inverter mini welding machine mini maquinas de soldar for brazil
Description
-
One of the best inverter arc welding machines in the world, with unique and advanced inverter technology. It has a powerful performance and guarantees excellent welding result for all sizes of steel or stainless steel pipe, rolled pipes and other weldable products. With energy-saving features, multiple functions and portability, you will never have to choose between speed and quality during your next project.
Features
-
Digitization panel designed
-
exactly spot welding function
-
uniform quality of welding
-
the fan stops automatically
MMA inverter welder characteristics
-
It's equipped with advanced IGBT inverter technology, which means it consumes less power than traditional motors and delivers a more consistent output. The result is a smooth, stable welding process with minimal spatter—no matter what kind of material you're working with!
Specifications
| Model | MMA-200B | MMA-250B | MMA-300B |
| Type | IGBT 1PCB | IGBT 1PCB | IGBT 1PCB |
| Real Amp(A) | 120 | 140 | 160 |
| AC Input Voltage(V) | 220V (110V/220V can do) | 220V (110V/220V can do) | 220V (110V/220V can do) |
| Rated Input Power Capacity(KVA) | 5 | 6.2 | 7 |
| Input Frequency(Hz) | 50/60 | 50/60 | 50/60 |
| Non-load Voltage(V) | 56 | 56 | 56 |
| Output current range(A) | 20-200 | 20-250 | 20-300 |
| Rated Duty Cycle(%) | 60% | 60% | 60% |
| Efficiency(%) | 85% | 85% | 85% |
| Class of Insulation | F | F | F |
| Protection class of case | IP21 | IP21 | IP21 |
| Electrode diameter (mm) | 1.6-3.2 | 1.6-3.2 | 1.6-4.0 |
| Quick joint Size(mm) | 35-50 | 35-50 | 35-50 |
| Input power cable(m) | 1.8 | 1.8 | 1.8 |
| N.W./G.W.(kg) | 3.8/5.6 | 4/5.8 | 4.2/6 |
| Machine Size(LxWxH mm) | 310*137*225 | 310*137*225 | 310*137*225 |
| Package(LxWxH mm) | 350*206*275 kraft paper box | 350*206*275 kraft paper box | 350*206*275 kraft paper box |

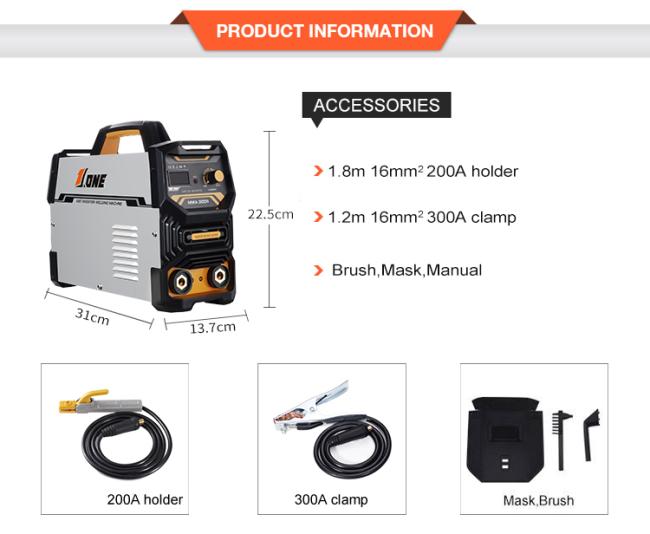

| Accessories | 1.8m 16mm² 200A holder | 1.8m 16mm² 200A holder | 1.8m 16mm² 200A holder |
| 1.2m 16mm² 300A clamp | 1.2m 16mm² 300A clamp | 1.2m 16mm² 300A clamp | |
| mask,brush,belt,manual | mask,brush,belt,manual | mask,brush,belt,manual |
Advantages Of Electric Welding Machine
Electric welding machine is suitable for working in dry environment, does not need too many requirements, because the volume is small, the operation is simple, the use is convenient, the speed is faster and it has no sealant application. The advantages such as high strength and instant connection between materials can be widely used in various fields.
Our Service
-
we are the most reliable
-
Competitive price
-
Timely delivery
FAQ
Q:Do you offer any welding machines technical support?
A:Yes, we have engineers ready to assist customers with welding machines technical support problems, any issues that may arise during the quoting or installation process, as well as aftermarket support.
Q:What kind of welding machines warranty do you have?
A:We provide a 1-year warranty to most of our welding machines product. For more information, please send the product model and send an email to us.
Q:Can you make your welding machines under my brand?
A:Yes, we can welding machines under your logo and it has the Minimum Order Quantity (MOQ) request..
