MOS 3PCB 180 Amp Tig Welder machine
ac dc argon 2 in 1 welding machine single phase 220v high frequency aluminum super 200p ac dc pulse tig welder
Description
- TIG welding, even if it is not simple like MIG or flux core, has lots of advantages. It includes the fact that you can make a joint between two pieces of metal through a process called Tungsten Arc Welding. In this process, an arc is created by an electrode with high melting power and high temperature that allows you to weld metal at a high temperature. Then your job will be done in just half the time!
Features
- The weld deposit will not harden from high carbon content.
-
aluminum bronze tig welding rods are almost as strong as steel
-
aluminum bronze tig welding rods are much cheaper than nickel rods.
TIG inverter welder characteristics
- TIG welding is a perfect option for any manufacturing business that deals with appearance or quality of products. These needs can be satisfied by TIG welding which uses the TIG filler metal for the spring constant. However, TIG welding may not be the best option for all kinds of businesses because it has some restrictions and limitations.
| Model | TIG/MMA-250B | TIG/MMA-315B |
| Type | MOS 3PCB | MOS 3PCB |
| Real current(A) | 180 | 220 |
| AC Input Voltage(V) | 220V(110V/220V can do) | 220V |
| Output current range(A) | 20-200 | 20-315 |
| Rated Input Power Capacity(KVA) | 7 | 9.2 |
| Input Frequency(Hz) | 50~60 | 50~60 |
| Non-load Voltage(V) | 56 | 56 |
| Rated Duty Cycle(%) | 60% | 60% |
| Efficiency(%) | 85% | 85% |
| Class of Insulation | F | F |
| Protection class of case | IP21 | IP21 |
| Quick joint Size | 35-50 | 35-50 |
| GW/NW(KG) | 6/10KG | 11/15KG |
| Machine Size(LxWxH mm) | 420*160*310 | 480*215*380 |
| Package(LxWxH mm) | 455*270*355 kraft paper box+ foam | 540*295*425 kraft paper box+ foam |

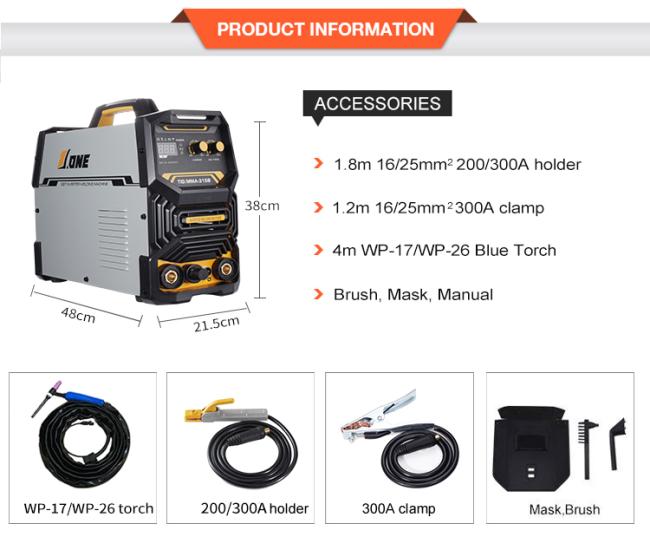

| Accessories | 1.8M 16mm2 200A holder | 1.8M 25mm2300A holder |
| 1.2M 16mm2 300A clamp | 1.2M25mm2 300A clamp | |
| 4M WP-17 Black Torch | 4M WP-26 Blue Torch | |
| Brush, Mask, Manual | Brush, Mask, Manual |
Advantages Of Electric Welding Machine
-
Do you want to make an electrical connection between two or more parts by using a TIG welding machine? If so, you have come to the right place. This is the best TIG welding machine that is suited for any type of material.
FAQ
Q:Are you a welding machines factory or trading company?
A:We are welding machines manufacturer as well as a trading company with more than 10 assembly product line and strict QC system and equipment, so we can meet both your quantity and quality demands.
Q:Can you offer welding machines for testing?
A:Yes, we can offer welding machines for the test.
Q:How do your factory do regarding quality control?
A:Our factory has gained the certificate and ISO9001 authentication. Quality makes us who we are today. We focus on the welding machines quality from the very beginning to the end.
