Die Casting Aluminum Cabinet Football Stadium Perimeter LED Display Outdoor
FA Serise -- Showtechled Die-Casting Aluminum Cabinet Football Stadium Perimeter Led Display Outdoor For Advertising Screen
(1) Description of P8 Stadium LED Display:
1. High brightness LED is used for outdoor led display, keeps the display content visible even if facing the strong sunshine directly.
2. With Anti-UV ray mask, the color of the mask would never change even if under exposure of UV ray.
3. Weatherproof design, completely outdoor use.
4. Easy for assembling and connection with the connector added.
5. High color uniformity and clear image can bring you a vivid audio visual effect.
(2) Quick Detail:
Pixel Pitch:8 mm
Brightness:6000cd/㎡
Refresh rate: 3840Hz
Viewing angle:120°(horz.), 120° (vert.)
Work Voltage:AC190-264V
Cabinet Size:960*960mm
Maintenance type: Front/Rear maintenance
(3) Specifications:
| 1 | Item | FA8 |
| 2 | Pixel Pitch | 8mm |
| 3 | Pixel density | 15625dots/㎡ |
| 4 | LED configuration | SMD3535 |
| 5 | Module size | 320(W)×160(H)×19(D)mm |
| 6 | Module resolution | 40(W)x20(H) |
| 7 | Module weight | 0.5Kg |
| 8 | Scanning Mode | 1/5 |
| Cabinet Parameter | ||
| 1 | Cabinet resolution | 120(W)x120(H) |
| 2 | Cabinet size | 960(W)×960(H)×134(D)mm |
| 3 | Cabinet material | Die casting aluminum |
| 4 | Cabinet weight | 25kg |
| 5 | Module number | 3*6 |
| 6 | Brightness | 6000cd/㎡ |
| 7 | Viewing angle | 160°(horz.), 160° (vert.) |
| 8 | Optimal View Distance | 8m-80m |
| 9 | Gray scale | 14(bit) |
| 10 | Max Power Consumption | 780W/㎡ |
| 11 | Avg Power Consumption | 260W/㎡ |
| 12 | Work Voltage | AC190-264V |
| 13 | Frame Frequency | 60Hz |
| 14 | Refresh rate | 3840Hz |
| 15 | Operation System | Win7&XP |
| 16 | Control Mode | Synchronization with PC |
| 17 | Operating Temperature | ( -40℃～+60℃ ) |
| 18 | IP Rating(Front/Rear) | IP65/IP54 |
| 19 | maintenance type | Back maintenance |
| 20 | Life Span | 100,000Hours |
(4) Notices:
1. Open the package, check the product carefully, and handle it with care to avoid damaging the product.
2. Check the circuit and switch of the LED display screen, keep the switch dry, and avoid leakage and electric shock accidents.
3. The air conditioner can be used to dehumidify the LED display, and the desiccant and physical moisture absorption can be placed to keep it dry and prevent the display from getting wet.
4. During the rainy season, the LED screen display is guaranteed to be used at least once a week, and it is lit for at least 2 hours each time.

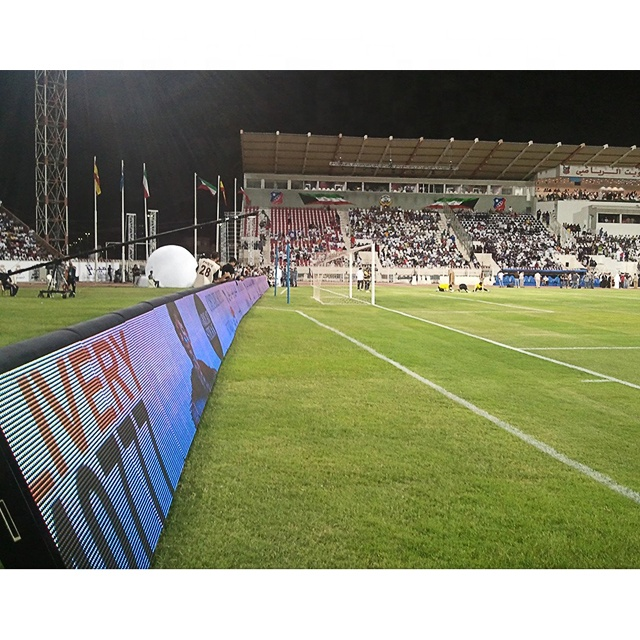

Application: Widely used in outdoor squares, stadiums and other physical activity.
FAQ:
Q1: Are you manufacture or trading company?
A: We are the real manufacture which focus on the LED display.
Q2: May be we will need some samples, what is the lead time of samples and lead time of order?
A: We will arrange your sample of the charges within 7 days and arrange your order within 15-30 days after receiving your deposit.
Q3: Which payment method does your company accept?
A: We support T/T or Western Union.
Q4: What is your lead time?
A: The delivery time is 1-30 days which depend on detail intm and quatity.
Q5: Where is your company advantage?
A: We have the industry's top R&D strength.Can provide customers with a variety of unusual solutions, customized development of the high difficulty of the LED display.
