IP65 Naked Eye 3d LED Screen , Waterproof Commercial Advertising LED Display
IP65 Naked Eye 3d LED Screen Waterproof Commercial Advertising LED Display
(1) Description of Outdoor Waterproof 3D Naked Eye LED Screen Commercial Advertising Billboard LED Display:
1. The brightness can reach to 8000-12,000nits. But it’s energy-saving as highly integrated, Max power consumption only 360W/sqm, Avg only 100W/sqm.
2. Higher transparency rate (50%) does not affect the ventilation and lighting of the rear of the screen, with strong wind resistance, effectively alleviate the wind load.
3. The edges of modules and frame are designed to be 45 degrees, it is easier to make right-angled connection. Between screens, right-angled stitching without gaps is realized. This function can perfectly realize glasses-free 3D display for users.
(2) Quick Detail:
● Cabinet size: 1000(W)×1000(H)×85(D)mm
● Brightness: 8000cd/㎡
● Gray scale: 14(bit)
● Transparency Rate:50%
● Refresh rate:3840Hz
● Maintenance type: Front / Back Maintenance
● IP Rating(Front/Rear): IP65/IP65
● 2 Year Warranty
(3) Specifications:
| Module Parameter | ||
| 1 | Item | C1531 |
| 2 | Pixel Pitch | 15.6x31.25mm(H*V) |
| 3 | Pixel density | 2048dots/㎡ |
| 4 | LED configuration | DIP346 |
| 5 | Module size | 500(W)×250(H)×25(D)mm |
| 6 | Module resolution | 32(W)x8(H) |
| 7 | Scanning Mode | Static |
| Cabinet Parameter | ||
| 1 | Cabinet resolution | 64(W)x32(H) |
| 2 | Cabinet size | 1000(W)×1000(H)×85(D)mm |
| 3 | Cabinet weight | 19.5kg |
| 4 | Cabinet marerial | Aluminum |
| 5 | Transparency Rate | 50% |
| 6 | Brightness | 8000cd/㎡ |
| 7 | Viewing angle | 120°(horz.), 60° (vert.) |
| 8 | Optimal View Distance | 15m |
| 9 | Gray scale | 14(bit) |
| 10 | Max Power Consumption | 360W/㎡ |
| 11 | Avg Power Consumption | 100W/㎡ |
| 12 | Work Voltage | AV190-260V |
| 13 | Frame Frequency | 60Hz |
| 14 | Refresh rate | 3840Hz |
| 15 | Operation System | Win7&XP |
| 16 | Control Mode | Synchronization with PC |
| 17 | Operating Temperature | ( -40℃～+50℃ ) |
| 18 | IP Rating(Front/Rear) | IP65/IP65 |
| 19 | Installation / maintenance type | Front / Back installation Front / Back maintenance |
| 20 | Life Span | 100,000Hours |
Notices:
- Open the package, check the product carefully, and handle it with care to avoid damaging the product.
- Regularly check whether the power and signal lines are broken or bitten.
- When installing and disassembling the product, please disconnect the power supply to avoid electric shock.
- Be sure to connect the wires correctly, do not connect the wrong wires.
- Outdoor LED displays exposed to outdoor environments for a long time are easily contaminated with dust. It can be wiped with alcohol, or dusted with a brush or a vacuum cleaner, but cannot be wiped directly with a damp cloth.
Application:

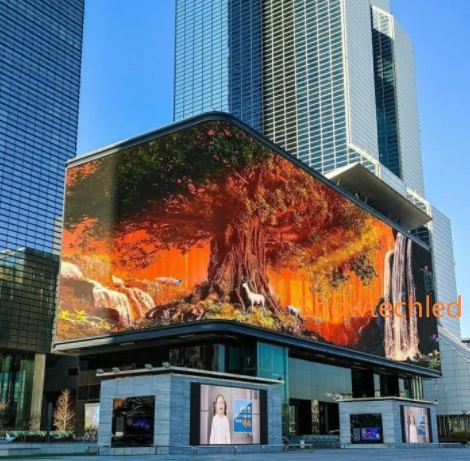

Widely used for outdoor squares, stadiums, hotels, hospitals, schools, shopping malls, supermarkets, etc.
FAQ:
Q1. How can i place an order?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /phone, in case of any delays.
Q2. What kind of display do we provide?
A: We have indoor fixed led display /Small pixel pitch led display/Flexible soft led display/Naked eye 3D led display/Outdoor Mesh Screen/Grille led display/Transparent led display/Billboard led display/Outdoor fixed led display/Front service led display/Energy saving led display/Stadium led display /rental led display/ Advertising led display for you choose.
Q3. What about the lead time for an order?
A: Always: 15-35 days, as your order quantity, sometimes we have stock, can delivery within 7 days
Q4. What about the warranty?
A: We have Two years quality guaranteed, spare parts such as led module, receiving card, control card, power supply are damaged not cause of artificial damaged, then it's free maintenance and ship back new ones for replacement.
