Activity Stage 3.91mm Rental LED Display SMD1921 Background LED Outdoor Advertising Board
R5O Series -- Showtechled Outdoor Activity Stage Rental LED Display Background Wall Advertising LED Screen
(1) Description of Outdoor Waterproof Stage Rental LED Display Advertising LED Screen:
1. Higher Utilisation,Support More Applications, Better ROI( return on investment).
2. Lightweight:-Panel weight only 7 Kg,More than 20% Lighter than regular products.
3. Quick:-One man installation,Quickly service power box.
4. High refresh rate and gray scale ensures the picture quality remains seamless.
5. Ultra-thin cabinet, the whole cabinet is made of aluminum Faster and easier installation.
(2) Quick Detail:
Pixel Pitch: 3.91mm
Cabinet Size: 500(W)×1000(H)mm
Cabinet Material: Die-cast aluminum
Brightness: 4500cd/㎡
Refresh Rate: 3840Hz
IP Rating(Front/Rear): IP65
(3) Specifications:
| Module Parameter | ||
| 1 | Item | R5O-3.9L |
| 2 | Pixel Pitch | 3.91mm(H*V) |
| 3 | Pixel density | 65536dots/㎡ |
| 4 | LED configuration | SMD1921 |
| 5 | Module size | 250(W)×250(H)mm |
| 6 | Module resolution | 64(W)x64(H) |
| 7 | Scanning Mode | 1/16 Scan |
| Cabinet Parameter | ||
| 1 | Cabinet resolution | 128 (W)x256(H) |
| 2 | Cabinet size | 500(W)×1000(H)×85(D)mm |
| 3 | Cabinet weight | 7.4kg |
| 4 | Brightness | 4500cd/㎡ |
| 5 | Viewing angle | 160°(horz.), 160° (vert.) |
| 6 | Optimal View Distance | 3.9m |
| 7 | Gray scale | 15bit |
| 8 | Max Power Consumption | 650W/㎡ |
| 9 | Avg Power Consumption | 217W/㎡ |
| 10 | Work Voltage | AC200-240V |
| 11 | Frame Frequency | 60Hz |
| 12 | Refresh rate | 3840Hz |
| 13 | Operation System | Win7&XP |
| 14 | Control Mode | Synchronization with PC |
| 15 | Operating Temperature | ( -20℃～+50℃ ) |
| 16 | IP Rating(Front/Rear) | IP65/IP54 |
| 17 | Installation / maintenance type | Hanging/Landing installation Rear maintenance |
| 18 | Life Span | 100,000Hours |
Notices:
1. Check the circuit and switch of the LED display screen, keep the switch dry, and avoid leakage and electric shock accidents.
2. Power supply voltage of LED display: 220V±10% Frequency: 50HZ±5%;
3. Safe and reliable contact with the ground, reliable isolation between the ground wire and the neutral wire, and keep the power supply away from high-power backup;
4. If any abnormality such as short circuit, tripping, burning wire, and smoke is found, the power-on test should not be repeated, and the problem should be found in time;

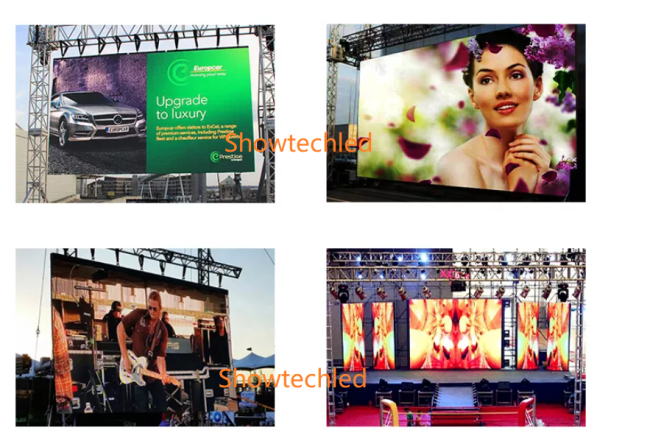

Application:
It is applicable for all of occasions such as exhibition display stage performance entertainment activities, government conference and various of commercial conferences,etc.
FAQ:
Q1: Are you a manufacturer or trading company?
A: We are a Professional OEM/ODM manufacturer which has specialized in led display industry for 18 years.
Q2: What about your quality?
A: The quality of our display is excellent. We use the materials of high quality suppliers in the world,strictly control the production process, and pass the multiple quality inspection to ensure that every product is qualified.
Q3: What about the warranty?
A: Two year warranty.
Q4: What about the lead time?
A: Orders less than 50 square meter display, lead time is 15 working days.
Q5: Can I order a sample?
A: Yes,We welcome customers to order samples to check our product quality of our products and service.
