790W/M2 Outdoor Advertising Naked Eye 3D LED Display Screen SMD3535 For Building Wall
C Series -- Showtechled Outdoor Large Grid LED Screen High Brightness Naked Eye 3D Building Wall LED Display
(1) Description of Outdoor Large Grid Fasade LED Display:
1. Light weight,aluminum panel 18kg/㎡ with thickness is 80mm;
2. Support full front or full rear maintenance.front maintenance can be installed directly on the wall;
3. Cable slot design anti-insect and rodent;

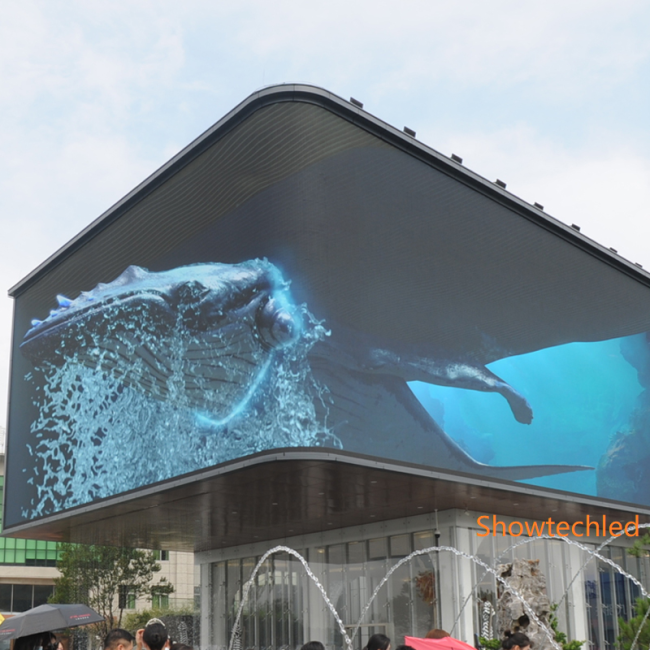

4. Right-angled connection: The edges of modules and frame can be designed to be 45 degrees, it is easier to make right-angled connection. Between screens, right-angled stitching without gaps is realized. This function can perfectly realize glasses-free 3D display for users.
(2) Quick Detail:
Pixel Pitch: 12.5x12.5mm(H*V)
Brightness: 6500cd/㎡
Module Size: 500*125mm
Cabinet size: 1000*1000mm
Cabinet Material: Aluminum
Maintenance Type: Front/Back maintenance
(3) Specifications:
| Module Parameter | ||
| 1 | Item | C1212 |
| 2 | Pixel Pitch | 12.5x12.5mm(H*V) |
| 3 | Pixel density | 6400dots/㎡ |
| 4 | LED configuration | SMD 3535 |
| 5 | Module size | 500(W)×125(H)×25(D)mm |
| 6 | Module resolution | 40(W)x10(H) |
| 7 | Scanning Mode | 1/2 Scan |
| 8 | IC model | FM6129 |
| Cabinet Parameter | ||
| 1 | Cabinet resolution | 80(W)x80(H) |
| 2 | Cabinet size | 1000(W)×1000(H)×80(D)mm |
| 3 | Cabinet weight | 18kg |
| 4 | Cabinet marerial | Aluminum |
| 5 | Transparency Rate | 35% |
| 6 | Brightness | 6500cd/㎡ |
| 7 | Viewing angle | 160°(horz.), 160° (vert.) |
| 8 | Optimal View Distance | 12m |
| 9 | Gray scale | 15(bit) |
| 10 | Max Power Consumption | 790W/㎡ |
| 11 | Avg Power Consumption | 250W/㎡ |
| 12 | Work Voltage | AV190-260V |
| 13 | Frame Frequency | 60Hz |
| 14 | Refresh rate | 3840Hz |
| 15 | Operation System | Win7&XP |
| 16 | Control Mode | Synchronization with PC |
| 17 | Operating Temperature | ( -40℃～+60℃ ) |
| 18 | IP Rating(Front/Rear) | IP65/IP65 |
| 19 | Installation / maintenance type | Front / Back installation Front / Back maintenance |
| 20 | Life Span | 100,000Hours |
Notes:
1. Open the screen: first open the control computer to make it run normally, and then open the large LED display screen;
2. Turn off the screen: first turn off the power of the LED screen body, turn off the control software, and then turn off the computer correctly; (turn off the computer first without turning off the display screen, which will cause the screen body to appear bright spots, burn the lamp, and the consequences will be serious);
3. The time interval between switching on and off the screen should be more than 5 minutes;
4. Avoid turning on the screen in a completely white screen state, because it is the maximum power state at this time, and its impact current on the entire power distribution system is the largest.
Application:
Applicable to major shopping malls, subway stations, bus stations,advertising sport s industrial enterprise transportation,stations terminals air ports construction, education system and other public places.
FAQ:
Q1. Can I have a sample order for the LED display?
A: Yes, we welcome sample orders to test and check quality. Both for the module or the whole screen.
Q2. What about the lead time?
A: Order less than 100 square meters led time to take 30 working days.
Q3. Do you have any MOQ limit for LED display orders?
A: Low MOQ, 1 square meter, or a module checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We mostly accept EXW terms, but we can help you order and arrange a shipping agent. It usually takes 20 30 days on the sea. a few days for customs clearance.
Q5. How to proceed with an order for an LED display?
A: Firstly, let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly, customer confirms the design document and places a deposit for the formal order.
Fourthly, We arrange the production.
