384 X 216 Ultra HD Video Wall Pixel Pitch LED Screens For Advertising SMD 1212
UHD Series -- Showtechled Indoor Ultra HD Small Pixel Pitch LED Screen with High Refresh Rate Video Wall LED Display
(1) Description of Indoor Ultra High Definition Small Pixel Pitch LED Screen:
1. Front maintenance design:No need for maintenance channel behind the screen. It can be attached to the wall to save time and space.
2. Super thin, light weight,only 5.5kg per LED panel, with handles and fast locks, easy to install.
3. Perfect display ratio: 16:9 ratio, so that videos and pictures get a perfect display effect.
4. Double backup:Supporting Dual Control System, Automatically Switch the Picture.when it occurs emergency case to make sure a stable and reliable image.
(2) Quick Detail:
Pixel Pitch: 1.5625mm
LED Configuration: SMD1212
Brightness: 600cd/㎡
Module Size: 150(W)×168.75(H)mm
Refresh rate: 3840Hz.
Maintenance type: Front maintenance.
(3) Specifications:
| Module Parameter | ||
| 1 | Item | UHD1.5 |
| 2 | Pixel Pitch | 1.5625mm |
| 3 | Pixel density | 409600dots/㎡ |
| 4 | LED configuration | SMD1212 |
| 5 | Module size | 150(W)×168.75(H)×2(D)mm |
| 6 | Module resolution | 96(W)x108(H) |
| 7 | Module weight | 0.3Kg |
| 8 | Scanning Mode | 1/48 |
| 9 | IC model | FM6363 |
| Cabinet Parameter | ||
| 1 | Cabinet resolution | 384(W)x216(H) |
| 2 | Cabinet size | 600(W)×337.5(H)×60(D)mm |
| 3 | Cabinet material | Die Casting Aluminum |
| 4 | Cabinet weight | 5.5kg |
| 5 | Module number | 4*2 |
| 6 | Brightness | 600cd/㎡ |
| 7 | Viewing angle | 160°(horz.), 160° (vert.) |
| 8 | Optimal View Distance | 1.5m-15m |
| 9 | Gray scale | 14(bit) |
| 10 | Max Power Consumption | 600W/㎡ |
| 11 | Avg Power Consumption | 200W/㎡ |
| 12 | Work Voltage | AC200-264V |
| 13 | Frame Frequency | 60Hz |
| 14 | Refresh rate | 3840Hz |
| 15 | Operation System | Win7&XP |
| 16 | Control Mode | Synchronization with PC |
| 17 | Operating Temperature | ( -40℃～+ 60℃ ) |
| 18 | IP Rating(Front/Rear) | IP31 |
| 19 | maintenance type | Front maintenance |
| 20 | Life Span | 100,000Hours |
Notes:
1. Power supply voltage of LED display: 220V±10% Frequency: 50HZ±5%;
2. If any abnormality such as short circuit, tripping, burning wire, and smoke is found, the power-on test should not be repeated, and the problem should be found in time;
3. Keep the power supply stable, and do a good job of grounding protection to avoid lightning strikes. Do not use it in harsh natural conditions, especially strong lightning weather;
4. The power supply of the large screen must be supplied step by step, because the maximum power state of the entire screen will have an impact on the entire power distribution system.
Application:

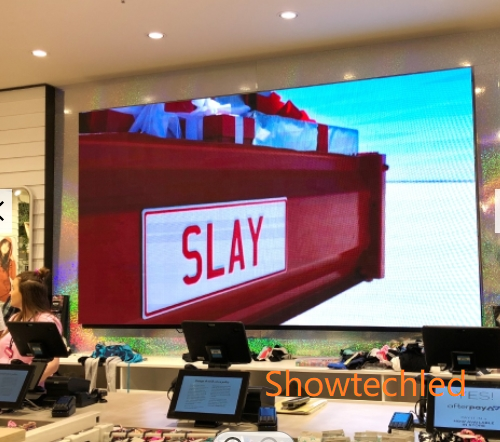

Indoor led screen is widely used in stadium, shopping mall, station, office and hotel for advertising with characteristics of high brightness, large viewing angle, high safety, long life span, light weight, fast installation and easy maintenance etc.
FAQ:
Q1. Are you trading company or manufacturer?
A: We are led display manufacturer.
Q2. What is the control system?
A: We use Nova control system.
Q3. How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. How can you ensure your led display product quality?
A: Showtechled have been enrolled in led display industry for almost 18 years, and professional R&D team and skilled QC team with standard process to assure quality products.
