Large 6400dots/2 LED Curtain Display Media Facade Outdoor LED Display Billboard 3840Hz

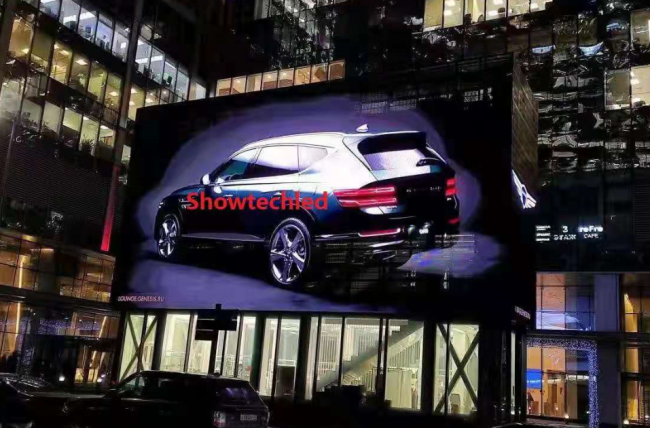

C Series -- Showtechled Outdoor Large Curtain Media Facade LED Display Billboard Advertising Mesh LED Screen
(1) Description of Outdoor Large Curtain Media Facade Billboard Advertising Mesh LED Display:
1. Our outdoor mesh screen is lighter, cabinet weight only 21Kg. and the wind load is much smaller.
2. Higher transparency rate (30%-70%) does not affect the ventilation and lighting of the rear of the screen, with strong wind resistance, effectively alleviate the wind load, further alleviate the infrastructure intensity and weight of the LED display, or Installed in the building glass curtain wall.
3. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.
(2) Quick Detail:
● Cabinet Marerial: Aluminum
● Cabinet Size: 1000(W)*1000(H)*80(D)mm
● Brightness: 6500cd/㎡
● Gray scale: 15(bit)
● Transparency Rate:35%
● Refresh rate: 3840Hz
● Maintenance type: Front / Back Maintenance
● IP Rating(Front/Rear): IP65/IP65
● 2 Year Warranty
(3) Specifications:
| Module Parameter | ||
| 1 | Item | C1212 |
| 2 | Pixel Pitch | 12.5*12.5mm(H*V) |
| 3 | Pixel density | 6400dots/㎡ |
| 4 | LED configuration | SMD 3535 |
| 5 | Module size | 500(W)*125(H)*25(D)mm |
| 6 | Module resolution | 40(W)x10(H) |
| 7 | Scanning Mode | 1/2 Scan |
| Cabinet Parameter | ||
| 1 | Cabinet resolution | 80(W)x80(H) |
| 2 | Cabinet size | 1000(W)*1000(H)*80(D)mm |
| 3 | Cabinet weight | 18kg |
| 4 | Cabinet marerial | Aluminum |
| 5 | Transparency Rate | 35% |
| 6 | Brightness | 6500cd/㎡ |
| 7 | Viewing angle | 160°(horz.), 160° (vert.) |
| 8 | Optimal View Distance | 12m |
| 9 | Gray scale | 15(bit) |
| 10 | Max Power Consumption | 850W/㎡ |
| 11 | Avg Power Consumption | 250W/㎡ |
| 12 | Work Voltage | AV190-260V |
| 13 | Frame Frequency | 60Hz |
| 14 | Refresh rate | 3840Hz |
| 15 | Operation System | Win7&XP |
| 16 | Control Mode | Synchronization with PC |
| 17 | Operating Temperature | ( -40℃～+60℃ ) |
| 18 | IP Rating(Front/Rear) | IP65/IP65 |
| 19 | Installation / maintenance type | Front / Back installation Front / Back maintenance |
| 20 | Life Span | 100,000Hours |
Notices:
- Open the package, check the product carefully, and handle it with care to avoid damaging the product.
- Regularly check whether the power and signal lines are broken or bitten.
- The power supply should be stable, and the grounding protection should be good. Regularly check the reliability of the lightning rod and grounding system.
- Outdoor LED displays exposed to outdoor environments for a long time are easily contaminated with dust. It can be wiped with alcohol, or dusted with a brush or a vacuum cleaner, but cannot be wiped directly with a damp cloth.
- Outdoor LED display needs to rest for more than 2 hours a day, and use it at least once a week during the rainy season. Turn on the screen at least once a month for more than 2 hours.
Application:
Widely used for outdoor squares, stadiums, hotels, hospitals, schools, shopping malls, supermarkets, etc.
FAQ:
Q1. Can I have a sample order for led display?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. Do you have any MOQ limit for led display order?
A: Low MOQ, 1pc for sample checking is available.
Q3. What is your shipping and packing way?
A: Our standard packing for modules are carton box and for the led cabinet, we do wood box or flight case as per customers’ requests. For the mass order ( fit for a container), generally we do shipment by Sea.
Q4. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q5. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
