P3 SMD 1921 Facade LED Screen Transparent Glass 3840Hz Outdoor LED Advertising Board
C Series -- Showtechled Outdoor Transparent LED Screen Media Fasade High Definition Advertising LED Display
(1) Description of Outdoor Transparent Media Fasade High Definition Advertising LED Display:
1. This product is our company's high-definition display. The outdoor mesh screen is lighter, and the wind load is smaller while the brightness is higher, but the power consumption is smaller.
2. IP65 high waterprooof level. Easy for installation, no air conditioning, front/rear installation & maintenance. Support full front service.
3. The LED mesh screen breaks through the many restrictions on the building and the wall of the conventional LED display, making the project more flexible and more choices.
(2) Quick Detail:
● High transparency: 41%
● Brightness: 5500cd/㎡
● Refresh rate: 3840Hz
● Installation / maintenance type: Front / Back Service
● IP Rating(Front/Rear): IP65/IP65
● 2 Year Warranty
(3) Specifications:
| Module Parameter | ||
| 1 | Item | C0307 |
| 2 | Pixel Pitch | 3x7mm(H*V) |
| 3 | Pixel density | 47286dots/㎡ |
| 4 | LED configuration | SMD 1921 |
| 5 | Module size | 500(W)×125(H)×25(D)mm |
| 6 | Module resolution | 128(W)x16(H) |
| 7 | Scanning Mode | 1/8 Scan |
| Cabinet Parameter | ||
| 1 | Cabinet resolution | 256(W)x128(H) |
| 2 | Cabinet size | 1000(W)×1000(H)×85(D)mm |
| 3 | Cabinet weight | 19kg |
| 4 | Cabinet marerial | Aluminum |
| 5 | Transparency Rate | 41% |
| 6 | Brightness | 5500cd/㎡ |
| 7 | Viewing angle | 160°(horz.), 160° (vert.) |
| 8 | Optimal View Distance | 7m |
| 9 | Gray scale | 14(bit) |
| 10 | Max Power Consumption | 750W/㎡ |
| 11 | Avg Power Consumption | 250W/㎡ |
| 12 | Work Voltage | AV190-260V |
| 13 | Frame Frequency | 60Hz |
| 14 | Refresh rate | 3840Hz |
| Operation System | Win7&XP | |
| 16 | Control Mode | Synchronization with PC |
| 17 | Operating Temperature | ( -40℃～+60℃ ) |
| 18 | IP Rating(Front/Rear) | IP65/IP65 |
| 19 | Installation / maintenance type | Front / Back installation Front / Back maintenance |
| 20 | Life Span | 100,000Hours |
Notices:
- It is usually necessary to regularly check whether the waterproof rubber ring of the cabinet is aging, deformed or incomplete; whether the screws or locks of the sealing cabinet are easy to loosen and the pressure is not enough.
- When installing and disassembling the product, please disconnect the power supply to avoid electric shock.
- Do not expose the copper wire outside the power terminal hole to avoid short circuit or electric shock.
- Be sure to connect the wires correctly, do not connect the wrong wires.
- Outdoor LED displays exposed to outdoor environments for a long time are easily contaminated with dust. It can be wiped with alcohol, or dusted with a brush or a vacuum cleaner, but cannot be wiped directly with a damp cloth.
Application:

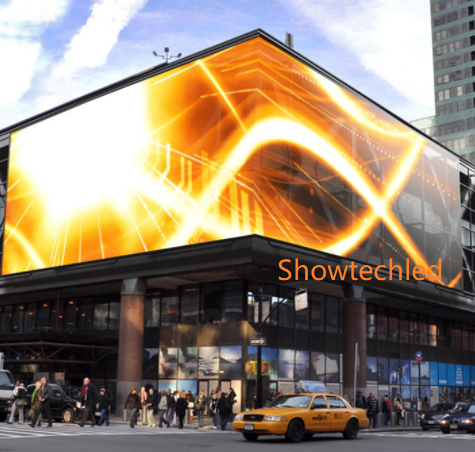

Widely used for outdoor squares, stadiums, hotels, hospitals, schools, shopping malls, supermarkets, etc.
FAQ:
Q1. Can I have a sample order for led display?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 15-25 days for Sample preparing ,25-35 working days for mass production.
Q3. Do you have any MOQ limit for led display order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 5-15 days to arrive. Airline and sea shipping also optional.
