3.91mm P3.91 Front Maintenance LED Screen HD 3840Hz LED Billboard Advertising
FS Series -- Showtechled Front Maintenance Outdoor Digital Billboard LED Screen HD Advertising LED Display
(1) Description Outdoor Front Maintenance HD Billboard LED Display:
1. Front maintenance:Module with cam-lock design, easy for replacement.
2. High brightness : FS series brightness is up to 6500 nits.
3. Use aluminum material, More lighter, stronger, and more stable, the cabinet is only 26kg and the protection grade is IP65.
4. Excellent size and ultra-thin design: FS series cabinet size is 1000*1000*100mm, module size is 250*250mm. The screen size can be measured in multiples of one square meter.
(2) Quick Detail:
Pixel Pitch: 3.91mm
Module Size: 250*250mm
Cabinet size: 1000*1000mm
Refresh rate: 3840Hz
Maintenance type: Front maintenance
Life span: 100,000 hours
(3) Specifications:
| Module Parameter | ||
| 1 | Item | FS-3.91 |
| 2 | Pixel Pitch | 3.91mm(H*V) |
| 3 | Pixel density | 65536 dots/㎡ |
| 4 | LED configuration | SMD1921(Nationstar) |
| 5 | Module size | 250(W)×250(H)mm |
| 6 | Module resolution | 64(W)x64(H) |
| 7 | Scanning Mode | 1/ 8 Scan |
| 8 | IC model | ICN2153 |
| Cabinet Parameter | ||
| 1 | Cabinet resolution | 256(W)x256(H) |
| 2 | Cabinet size | 1000(W)×1000(H)×100(D)mm |
| 3 | Cabinet materials | Iron |
| 4 | Cabinet weight | 26 kg |
| 5 | Brightness | 6500cd/㎡ |
| 6 | Viewing angle | 160°(horz.), 160° (vert.) |
| 7 | Optimal View Distance | 3.9m |
| 8 | Gray scale | 15bit |
| 9 | Max Power Consumption | 880W/㎡ |
| 10 | Avg Power Consumption | 266W/㎡ |
| 11 | Work Voltage | AC200-240V |
| 12 | Frame Frequency | 60Hz |
| 13 | Refresh rate | 3840HZ |
| 14 | Operation System | Windows&IOS |
| 15 | Control Mode | Synchronization with PC |
| 16 | Operating Temperature | ( -20℃～+60℃ ) |
| 17 | IP Rating(Front/Rear) | IP65/IP54 |
| 18 | Installation / maintenance type | Front installation and Front maintenance |
| 19 | Life Span | 100,000Hours |
Notes:
1. The power switch of the display screen often trips, and the screen body should be checked or the power switch should be replaced in time.
2. Regularly check the firmness of the hook. If there is any looseness, please adjust it in time, re-reinforce or update the hanger.
3. According to the environment of the large-screen display screen and the control part, avoid insect bites, and place anti-rat medicine if necessary.
4. If the LED display is not used for a long time, it should be powered on for maintenance and debugging frequently. Whether it is an indoor LED display or an outdoor LED display, if it is not used for a long time, dead lights and blind spots may occur when it is activated again. Therefore, it is necessary to power on and light up the screen frequently for debugging.
Application:

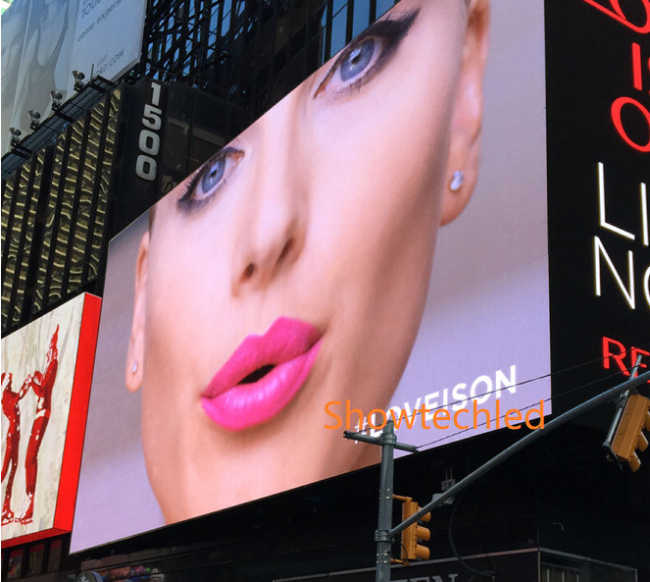

Widely used in buildings, high-speed railway stations, stadiums, airports, shopping malls and other places.
FAQ:
Q1. Can I have a sample order for led display?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. Do you have any MOQ limit for led display order?
A: Low MOQ, 1pc for sample checking is available.
Q3. What is your shipping and packing way?
A: Our standard packing for modules are carton box and for the led cabinet, we do wood box or flight case as per customers’ requests. For the mass order ( fit for a container), generally we do shipment by Sea.
