Outdoor Fixed Glass LED Mesh Screen P15.625 Grille High Brightness Transparent
C Series -- Outdoor Fixed Screen Led Glass Mesh Screen P15.625 Grille Screen Outdoor High Brightness Transparent Led Screen
(1) Description of Outdoor Fixed Screen Led Glass Mesh Screen LED Display C1531:
1. High brightness: C1531 Mesh screen brightness is up to 12000 nits, Standard configuration is 8000 nits and it can reach up to 12000 nits with high brightness level LED lamp such DIP 349.
2. Super light and thin box, easy to transport, install and maintain
3. Low power consumption, low heat, energy saving and environmental protection
4. Stable signal and power supply, safe and reliable operation
5. High efficiency and stability, high reliability, long service life
(2) Quick Detail:
Pixel Pitch:15.625x31.25mm(H*V)
Cabinet size:1000*1000mm
Cabinet material: aluminum
Refresh rate: 3840Hz
Maintenance type:Front/Back maintenance
(3) Specifications:
| Module Parameter | ||
| 1 | Item Name | C1531 |
| 2 | Pixel Pitch | 15.6x31.25mm(H*V) |
| 3 | Pixel density | 2048dots/㎡ |
| 4 | LED configuration | DIP349 |
| 5 | Module size | 500(W)×250(H)×25(D)mm |
| 6 | Module resolution | 32(W)x8(H) |
| 7 | Scanning Mode | Static |
| Cabinet Parameter | ||
| 1 | Cabinet resolution | 64(W)x32(H) |
| 2 | Cabinet size | 1000(W)×1000(H)×85(D)mm |
| 3 | Cabinet materials | Aluminum |
| 4 | Cabinet weight | 19.5kg |
| 5 | Brightness | 12000cd/㎡ |
| 6 | Viewing angle | 160°(horz.), 160° (vert.) |
| 7 | Optimal View Distance | 15m |
| 8 | Gray scale | 14bit |
| 9 | Max Power Consumption | 360W/㎡ |
| 10 | Avg Power Consumption | 100W/㎡ |
| 11 | Work Voltage | AV190-260V |
| 12 | Frame Frequency | 60Hz |
| 13 | Refresh rate | 3840HZ |
| 14 | Operation System | Win7&XP |
| 15 | Control Mode | Synchronization with PC |
| 16 | Operating Temperature | ( -40℃～+50℃ ) |
| 17 | IP Rating(Front/Rear) | IP65/IP65 |
| 18 | 90° right Angle splicing function | To do naked eye 3D display |
| 19 | Installation / maintenance type | Front / Back installation Front / Back maintenance |
| 20 | Life Span | 100,000Hours |
(4) Notes:
1. Be sure to connect the wires correctly, do not connect the wrong wires.
2. Do not expose the copper wire outside the power terminal hole to avoid short circuit or electric shock.
3. During the rainy season, the LED screen display is guaranteed to be used at least once a week, and it is lit for at least 2 hours each time.
4. The use of outdoor LED displays is complex, and it is inevitable that there will be water seepage in the cabinet. Usually, it is necessary to regularly check whether the waterproof rubber ring of the cabinet is aging, deformed or incomplete; whether the screws or locks of the sealing box are easy to loosen and the pressure is not enough, which affects the use.
(5) Application:

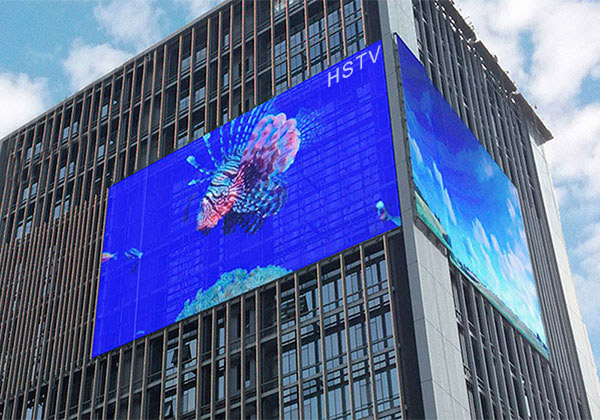

Widely used for outdoor squares, stadiums, hotels, hospitals, schools, shopping malls, supermarkets, etc.
FAQ:
Q1: Are you professional?
A: We are a large professional led display manufacturer in Shenzhen,CHINA with two production bases covring over 10,000 sqm and more than 200 employees.
Q2: Can you provide OEM service?
A: Yes, we can customize it according to your requests.
Q3: How Can you Guarantee Quality?
A: Seven quality control steps ensure your ordered screens are good.
Material check by professional workers and machines. 72-hour aging test for whole screen before shipment.
Q5: How does your factory do regarding quality control?
A: Quality is the priority. We show great importance to quality controlling from the very beginning to the end. Our factory has gained many certificates. Showtechled is famous among the screen industry.
