Cold Rolled SUS430 DIN 1.4016 Brushed Stainless Steel Sheet NO.4 Hairline
Cold Rolled SUS430 DIN 1.4016 Brushed Stainless Steel Sheet Plate NO.4 Hairline Surface Finish
430 stainless steel is a general-purpose steel with good corrosion resistance, better thermal conductivity than austenite, smaller thermal expansion coefficient than austenite, heat-resistant fatigue, adding stabilizing element titanium, and good mechanical properties of welds.
| Brand name | Lichuang |
| Certification | factory is vertifed by SGS. ISO or other product certification can be provided accordingly |
| Delivery time | 3 -7 days |
| Manufacturing products | mainly supply customer with stainless steel series products such as stainless steel sheet, stainless steel pipe, stainless steel profiles etc, also provide galvanized steel series products and carbon steel products etc for customers |
| Price term | CIF CFR FOB EXW |
| Payment term | T/T terms, 30% pre-payment, 70% balance see B/L copy; 100% L/C at sight |
| Stock | available stock goods with standard size, can be delivered to customer area with fast speed |
| Standard | JIS Aisi ASTM DIN EN bs |
| MOQ | Customers can place order to us according to the required size's quantity |
| Steel outlook | stainless steel sheet or plate. (coil or pipe etc can also be provided for customer) |
| Steel technique | cold rolled / hot rolled |
| Grade | 201 202 304 304J1 304L 321 316 316L 309S 310S 409L 410 420J1 420J2 430 444 etc |
| Surface finish | 2B/No.4 brushed/8K/BA mirror finish/checkered plate etc can be manufactured according to customer needs |
| Size for one sheet | W1000mm*L2000mm(3.2*6.5ft); W1219mm*L2438mm(4*8ft); W1500mm*L3000mm(5*10ft) under cold rolled condition, 0.4/0.5/0.6/0.7/0.8/0.9/1.0/1.2/1.5/2.0/2.5/3.0 thickness, 4-6mm also be available. Other size can be cut according to customer requirements
W1250mm*L3000mm(4.1*10ft);
W1250mm*L6000mm(4.1*19.6ft); W1500mm*L3000mm(5*10ft); W1500mm*L6000mm(5*19.6ft);
W1800mm*L6000mm(5.9*19.6ft);
under hot rolled treatment, 3.0 4.0 5.0 6.0 8.0 10.0 12.0 14.0 16.0 thickness. 18-150mm also be available. Other size can be cut according to customer requirements
|
Chemical Composition
| Grade | C | Si | Mn | P | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | 3.5-5.5 | 16.0-18.0 | - |
| 202 | ≤0.15 | ≤1.0 | 7.5-10.0 | ≤0.06 | 4.-6.0 | 17.0-19.0 | - |
| 301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | 6.0-8.0 | 16.0-18.0 | - |
| 302 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.035 | 8.0-10.0 | 17.0-19.0 | - |
| 304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | 19.0-22.0 | 24.0-26.0 | - |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | 12.0-15.0 | 16.0-18.0 | 2.0-3.0 |
| 321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | 9.0-13.0 | 17.0-19.0 | - |
| 630 | ≤0.07 | ≤1.0 | ≤1.0 | ≤0.035 | 3.0-5.0 | 15.5-17.5 | - |
| 631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | 6.50-7.75 | 16.0-18.0 | - |
| 904L | ≤2.0 | ≤0.045 | ≤1.0 | ≤0.035 | 23.0-28.0 | 19.0-23.0 | 4.0-5.0 |
| 2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
| 2507 | ≤0.03 | ≤0.80 | ≤1.2 | ≤0.035 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
| 2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | 0.19-0.22 | 0.24-0.26 | - |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | - | 11.5-13.5 | - |
| 430 | ≤0.12 | ≤0.75 | ≤1.0 | ≤0.040 | ≤0.60 | 16.0-18.0 | - |
Physical Properties
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elogation(%) | Hardness (HRB) |
| 201 | ≥655 | ≥310 | ≥40 | ≤100 |
| 202 | ≥620 | ≥260 | ≥40 | ≤100 |
| 304 | ≥515 | ≥205 | ≥40 | ≤92 |
| 304L | ≥485 | ≥170 | ≥40 | ≤88 |
| 316 | ≥515 | ≥205 | ≥40 | ≤95 |
| 316L | ≥485 | ≥170 | ≥40 | ≤95 |
| 321 | ≥515 | ≥205 | ≥40 | ≤95 |
| 409 | ≥380 | ≥205 | ≥20 | ≤80 |
| 409L | ≥350 | ≥185 | ≥22 | ≤80 |
| 430 | ≥450 | ≥205 | ≥22 | ≤80 |

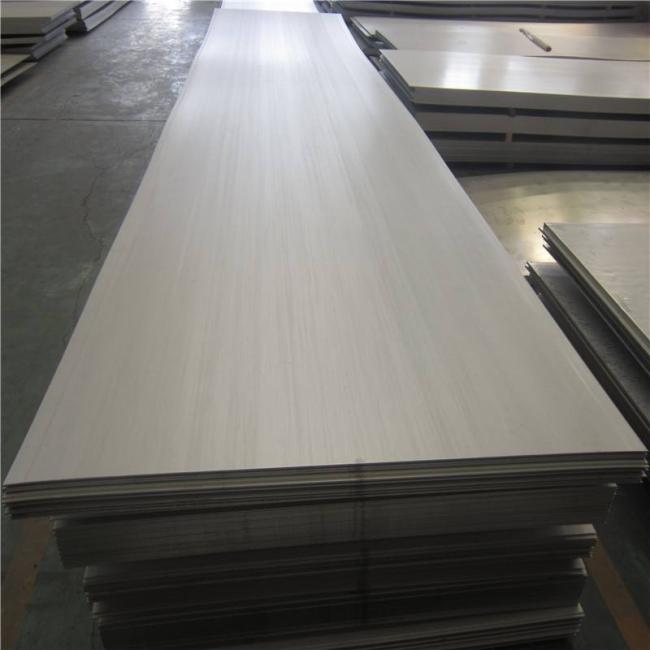

Product Photo
Surface Finish
Packing & Delivery
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Lichuang Special Steel is a cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Stainless Steel Coils / Strips, Stainless Steel Sheets / Plates, Stainless Steel Circles / Discs, Decorative Stainless Steel Sheets.
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4: HOW TO VISIT YOUR FACTORY?
A4: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
