2205 F60 ASTM Stainless Steel Sheet Duplex Stainless Steel 0.5mm Thickness
ASTM F60 Cold Rolled 2205 Stainless Steel Sheet Duplex Stainless Steel 0.5mm Thickness
Product Description:
Duplex stainless steel 2205 has twice the compressive strength compared to austenitic stainless steel, and designers can reduce its weight compared to 316L and 317L. The 2205 alloy is particularly suitable for use in the -- 50°F/+600°F temperature range and even lower temperatures under tight restrictions (especially for welded structures).
|
ITEM
|
Stainless Steel Sheet
|
|
Size
|
Thickness 0.01-3.0mm or customized; Width:10-1500mm Customized
|
|
Brand
|
RONSCO,BAOSTEEL, JISCO, TISCO, etc.
|
|
Material
|
201.202.301.302.304.304L.310S.316.316L.321.347,329,A.309S.2205.2507.2520.
430.410.440.904Lect. Or Customized
|
|
Standard
|
GB, AISI, ASTM, ASME, EN, BS, DIN, JIS
|
|
Surface
|
2B.NO.1.,NO.3,NO.4,HL,BA,8K,Matte, Satin,Gold Titanium Or customized;
|
|
Application
|
Foodstuff, Gas, metallurgy, biology, electron, chemical, petroleum,
boiler, nuclear energy, Medical equipment, fertilizer etc |
|
Package
|
Standard export sea-worthy packing or customized
|
|
Lead Time
|
7-10 days after deposit
|
|
Payment
|
TT/LC
|
|
Sample
|
we could offer the sample for free charge but do not pay the cost of freight.
|
Chemical Composition:
| Chemical | C | Si | Mn | P | S | Cr | Ni | Mo | N |
| Standard | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.04 | ≤0.03 | 21.0~24.0 | 4.5~6.5 | 2.5~3.5 | 0.08~0.2 |
| Normally | 0.025 | 0.6 | 1.5 | 0.026 | 0.001 | 22.5 | 5.8 | 3 | 0.16 |
| Ys (Mpa) | Ts (Mpa) | El (%) | Hv | 2.0t/2B |
| ≥ 450 | ≥ 620 | ≥ 25% | ≥ 18 | ≤ 320 |
| 500 | 670 | 35% | 27 | 280 |

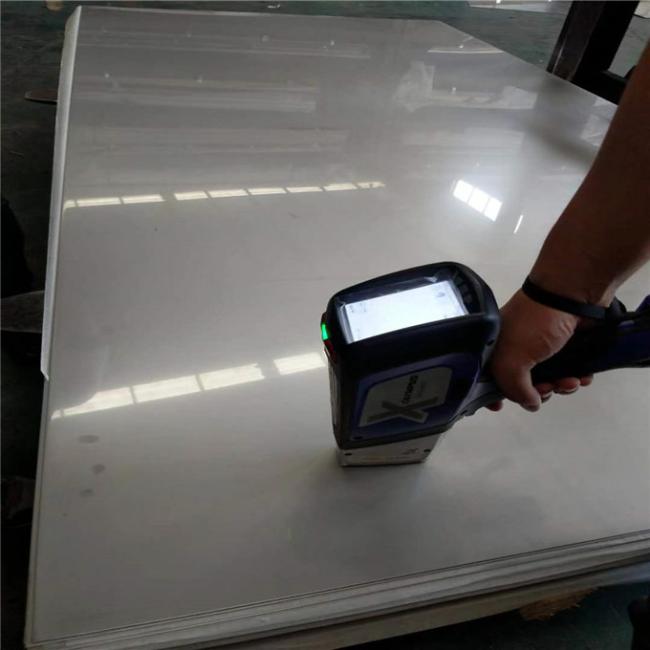

Detailed Photos:
Surface Reference:
Packing & Shipping:
FAQ:
Q1: ARE YOU FACTORY OR TRADER?
A1: Lichuang Special Steel is a cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Stainless Steel Coils / Strips, Stainless Steel Sheets / Plates, Stainless Steel Circles / Discs, Decorative Stainless Steel Sheets.
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4: HOW TO VISIT YOUR FACTORY?
A4: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
