ASTM 304 Perforated SS Plate Porous Round Hole Screen Metal Punching Mesh Sheet
SS ASTM 304 Perforated Plate Porous Round Hole Screen Stainless Steel Metal Punching Mesh Sheet
Product Description:
Perforated metal mesh features:
1. The mechanical strength and high toughness good
2. High pressure resistance, easy to connect and seal
3. Good stability, strong thermal shock resistance
4. Pore size and controllable
5. Long service life and high economic benefits
|
Item
|
SS ASTM 304 Perforated Plate Porous Round Hole Screen Stainless Steel Metal Punching Mesh Sheet |
|
Type
|
Perforated Mesh
|
|
Application
|
Protecting Mesh
|
|
Weave Style
|
Perforated
|
|
Technique
|
Perforated
|
|
Model Number
|
1MM-10MM
|
|
Processing Service
|
Bending, Welding, Decoiling, Cutting, Punching
|
|
Delivery Time
|
8-14 days
|
| THICKNESS | Thickness: 0.3mm-20mm |
| HOLE SIZE | Hole size:0.3-50mm |
| SHEET SIZE | Sheet Size: Normal size :39inch*78inch : 48inch*96inch ;Any size could be customised. |
| QUANTITY | The price depond on the quantity,so any quantity could be ordered. |
| SURFACE TREATMENT |
1> Electric galvanized, 3> PVC coated, |

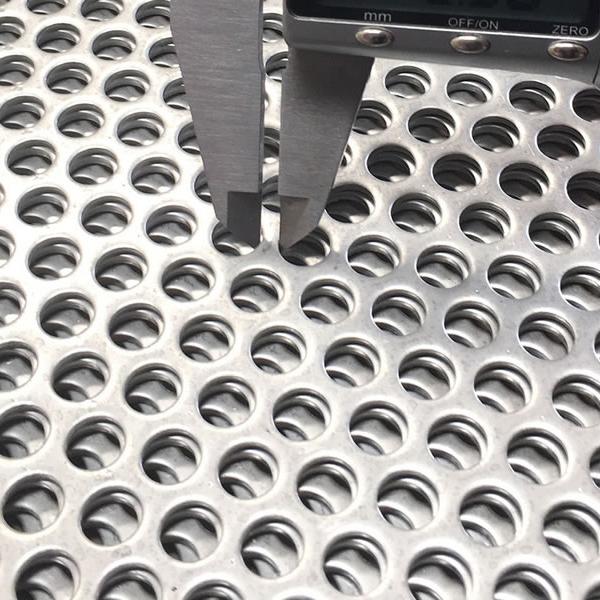

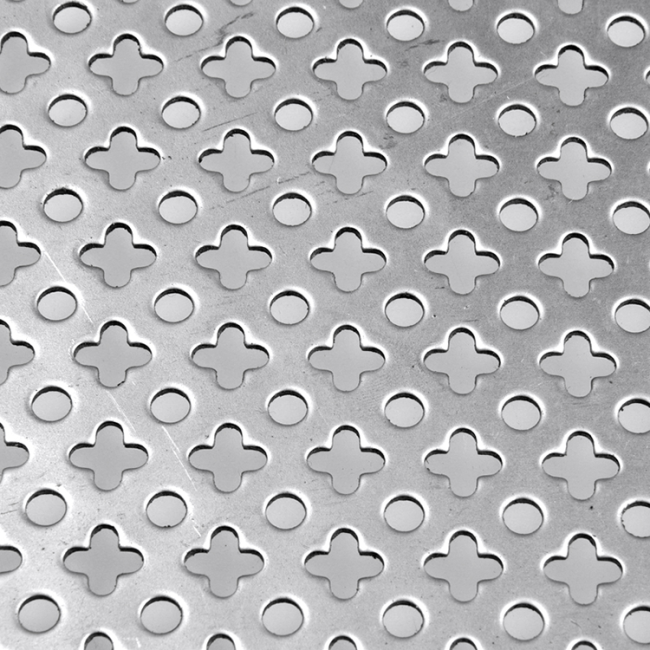

Detailed Photos:
Specification:
| Plain Steel Perforated Metal | |||||
| Hole Diameter | Staggered Centers | Sheet Thickness | Open Area | Perforated Area Percent | |
| 0.045" | 1.14mm | 0.066’’ | 0.033-0.039" | 0.84-0.99mm | 37.00% |
| 1/16" | 1.59mm | 3/32" | 0.027-0.033" | 0.68-0.84mm | 41.00% |
| 1/16" | 1.59mm | 1/8" | 0.027-0.066" | 0.68-1.68mm | 23.00% |
| 5/64" | 1.98mm | 1/8" | 0.027-0.053" | 0.68-1.35mm | 35.00% |
| 0.081" | 2.06mm | 1/8" | 0.053-0.066" | 1.35-1.68mm | 38.00% |
| 3/32" | 2.38mm | 5/32" | 0.053-0.066" | 1.35-1.68mm | 33.00% |
| 1/8" | 3.17mm | 3/16" | 0.027-0.127" | 0.68-3.23mm | 40.00% |
| 5/32" | 3.97mm | 3/16" | 0.027-0.066" | 0.68-1.68mm | 63.00% |
| 3/16" | 4.76mm | 1/4" | 0.027-0.127" | 0.68-3.23mm | 50.00% |
| 1/4" | 6.35mm | 3/8" | 0.033-0.111", 0.25" | 0.84-2.82mm, 6.35mm | 40.00% |
| 3/8" | 9.52mm | 1/2" | 0.053-0.082", 3/16" | 1.35-2.08mm, 4.76mm | 51.00% |
| 3/8" | 9.52mm | 9/16" | 0.059", 0.119" | 1.50mm, 3.02mm | 40.00% |
| 1/2" | 12.70mm | 11/16" | 0.033-0.127", 3/16" | 0.84-3.23mm, 4.76mm | 48.00% |
| 1/4" Hex | 6.35mm Hex | 0.285 | 0.027-0.033 | 0.68-0.84mm | 76.00% |
Processing:
Packing & Shipping
About Us

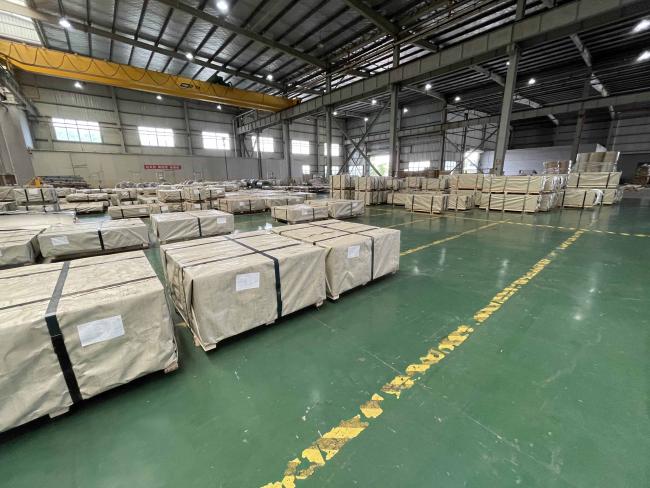

Lichuang SPECIAL STEEL CO .,LTD IS LOCATED IN SHANGHAI, THE LARGEST STEEL DISTRIBUTION CENTER IN EAST CHINA. SINCE ITS ESTABLISHMENT, THE COMPANY HAS BEEN COMMITTED TO PROVIDING CUSTOMERS WITH HIGH-QUALITY STEEL MATERIALS AND HAS BECOME THE LEADING SUPPLIER OF COMPREHENSIVE MATERIAL SOLUTIONS IN CHINA. THE COMPANY HAS 20,000 SQUARE METERS OF INDOOR STORAGE, MORE THAN 20,000 TONS OF SPOT INVENTORY.
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Lichuang Special Steel is a cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Stainless Steel Coils / Strips, Stainless Steel Sheets / Plates, Stainless Steel Circles / Discs, Decorative Stainless Steel Sheets.
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4: HOW TO VISIT YOUR FACTORY?
A4: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
