96 Birds / 128 Birds Broiler Cage System A Type Or H Type In African Market Iris
Excellent Farm Design For Farming Broiler Cage System In African Market Iris
Product information
Broiler chicken cages are chicken cages specially made for broiler chicken breeding. In order to overcome the broiler breast inflammation caused by the hard bottom of the cage, high-quality plastics are mostly used to make broiler chicken cage groups. Broiler cage can keep broilers from day old to adult, from entering the cage to sending the chicks to the slaughterhouse, there is no need to turn the cage again, it saves the trouble of catching chickens and avoids possible adverse reactions of chickens
Parameter information
| Product Name | Broiler cage system |
| Material | Cold galvanized or hot deep galvanized |
| Type | A type or H type |
| Capacity | 96 birds, 128 birds |
| Usage | Broiler chicken farm |
| Service time | 10-20 years depend on different quality |
| Warranty | 1 year |
| Drinking system | Automatic nipple drinking system |
| Weight | 150kg |
| Video outgoing-inspection | Provided |
Excellent farm design for broiler cage system

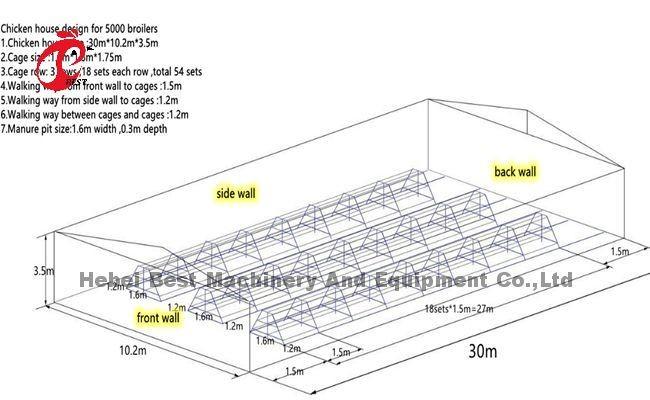

Chicken house design for 5,000 broilers
1. Chicken house size: 30m*10.2m*3.5m (L*W*H)
2. Broiler cage size: 1.5m*1.8m*1.75m (L*W*H)
3. Cage rows: 3 rows, 18 sets each row
4. Walking way from front wall to cages: 1.5m
5. Walking way from side wall to cages: 1.2m
6. Walking way between cages and cages: 1.2m
7. Manure pit under the cages: 1.6m width, 0.3m depth

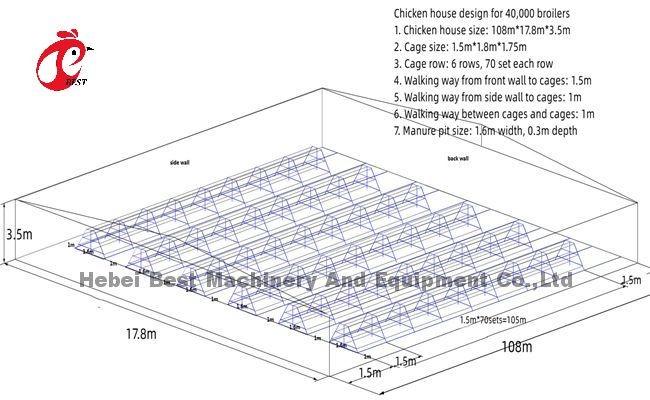

Chicken house design for 40,000 broilers
1. Chicken house size: 108m*17.8m*3.5m (L*W*H)
2. Broiler cage size: 1.5m*1.8m*1.75m (L*W*H)
3. Cage rows: 6 rows, 70 sets each row
4. Walking way from front wall to cages: 1.5m
5. Walking way from side wall to cages: 1m
6. Walking way between cages and cages: 1m
7. Manure pit under the cages: 1.6m width, 0.3m depth
Advantage for broiler cage system
1. Centralized management improves labor productivity, reduces the cost of artificial breeding, and greatly improves the breeding efficiency of farmers
2. Chicken flocks are well-prevented and effectively prevent infectious diseases. Chickens cannot touch feces, which can make chickens grow healthier, provide chickens with a clean and comfortable growth environment, and greatly advance the meat production time
3. Save space and increase the stocking density, the cage stocking density is more than 3 times higher than the flat stocking density
4. Save feed, chickens are kept in cages, less exercise, less energy consumption, less waste of feed
