Automatic H Type Poultry Farm Equipment Meat Broiler Chicken Cage For Sale Mia

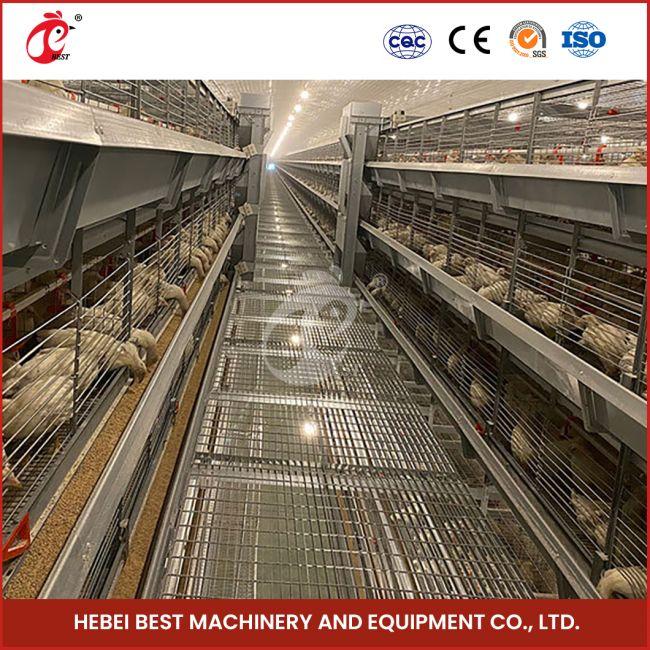

Full automatic broiler cage system description
The broiler cage system is mainly used for rearing broilers, one day old broiler chicks can be directly put into the cage and raised to 45 days old, cage is unnecessarily changed during their growing. Material of cage and frame is hot dip galvanized steel, it can easy to control and manage
Full automatic cage suitable for a large number farming with high profit. The advantages are efficient management of farms and reduced workforce

Broiler chicken cage size

Frame and cage
1. Punching from the hot dip galvanized steel panels, zinc coating 400 g/m2, no welding, all fixed by screws
2. Surface treatment of cage wire mesh are hot dip galvanized, the thickness of the Zn-coat is about 400 um, and the corrosion resistance is 3-4 times of usual surface treatment

Automatic feeding system
1. Main feed transport pipe connected with silo
The material of the pipe: PPR pipe
The diameter of the pipe: Ф90 mm
Auger: import from South Africa
2. Feeding trolley
The material of the feeding trolley is hot dip galvanized steel to ensure no rust.
3. Feeding trough
Two kinds of raw materials for feeding trough are available: PVC or galvanized steel

Automatic manure removing system
1. The system adopts belt type horizontal transmission of chicken manure. It can convey manure out of chicken house and to truck automatically
2. The manure conveying belt is made of high strength PP composite with friction resistance and corrosion resistance. It has long lifespan which is not easy to be deformed
3. The width of the chicken manure conveying belt is 44 cm
