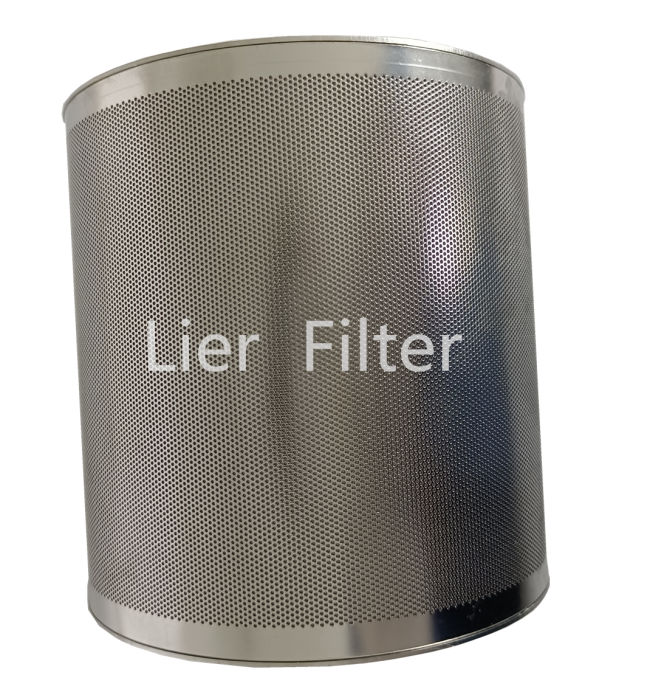

Stainless Steel 5 Layer Sintered Wire Mesh Dust Removal Filter Sintering Mesh
5 Layer Sintered Wire Mesh , Stainless Steel Dust Removal Filter Sintering Mesh
Introduction of 5 Layer Sintered Wire Mesh
1) Standard material: SUS304, SUS316L; SUS punching plate sintered mesh;
2) standard caliber: 25, 32, 40, 50, 65, 80, 100, 150, 180mm can be customized;
3) Filtration accuracy: 1-200um;
4) standard size: 100-1500mm, special specifications can be made according to customer requirements;
5) Interface type: 222, 220, 222, 226, 215, M36, M28, M24, M22, M20 standard interface, threaded interface, custom interface, tie rod connection, flange connection, fast interface connection.
parameter
| work stress | 1.5-2.5pa |
| Diameter | 6mm-1.5m or customized |
| Thickness | 1.0mm 1.7mm (standard thickness) 3.5mm or customized |
| Number of layers: | 3/4/5/6 layers |
| Quality | 100% SS FIBER |
| Uses | dust |
| pore size | 0.2um-120um |
Certificate
photos
packaging
Company Profile
Xinxiang Lier Filter Technology Co.,Ltd was established in 2005, which has more than 10 years history factory,our main products are as follows:
1. Sintered stainless steel mesh
2. Sintered stainless steel fiber felt
3. Sintered filter cartridge, pleated cartridge
4. Sintered filter disc
5. Sintered metal powder
All kinds of industrial filters
