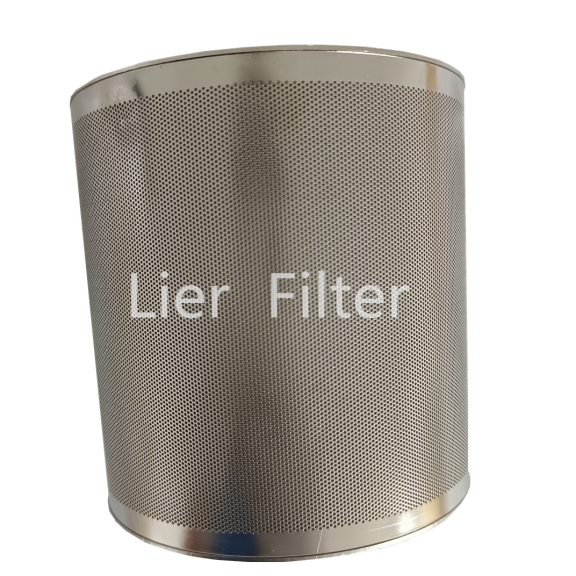

Good Permeability 30um 316L Sintered Metal Mesh Filter Cartridge
Introduction of Standard Sintered Metal Mesh Filter Cartridge
it is made of standard sintered five-layer metal mesh, which is made of five layers of stainless steel meshes by laminating together and then sintering in vacuum.This kind of filter cartridge takes the advantages of high corrosion resistance,good permeability,high rigidity,easy to wash and to backwash,high precision,clean filter material,fast wire net without migration,etc.
Main Connections
1.Standard(e.g.222,220,226)
2.Fast interface
3.Thread
4.Flange
5.Tie rod
6.Special customization
Features
1.High strength:extreme mechanical strength and pressure tolerance,can be machined,welded and assembled.
2.High precision:consistant filter property in media grades,without apertures changing during operation.
3.Heat resistant:can be continuously used in temperature ranging from -200℃ to 600℃ and filtering in acid and alkali conditions.
4.Cleanable:backwash and clean easily,can be reused with longer service span,and can be cleaned by means of ways,such as backstream,filtration liquid,ultrasonic,dissolution and baking.
Applications
Widely used in polyester filtration, water treatment, oil filtration, pharmaceutical, chemical, chemical fiber,and high temperature media filtration.
Parameters
|
construction |
Protective Layer |
| Filter Layer | |
| Dispersion Layer | |
| Reinforcing Layer | |
| Reinforcing Layer |
| type | nominal precision(um) | absolute accuracy(um) |
air permeability (L/min ·cm2·pa) |
bubble point pressure(pa) |
| AI1 | 6-7 | 5300-6000 | ||
| AI2 | 2 | 8-9 | (1-6)×10-4 | 4300-5000 |
| AI5 | 11-13 | (6-10)×10-4 | 3000-3700 | |
| AI10 | 10 | 16-18 | (6-10)×10-4 | 2700-3300 |
| AI15 | 15 | 24-26 | (1-6)×10-3 | 2000-2600 |
| AI20 | 20 | 28-32 | (1-6)×10-3 | 1800-2300 |
| AI25 | 25 | 34-36 | (6-10)×10-3 | 1400-1900 |
| AI30 | 30 | 40-45 | (6-10)×10-3 | 1200-1700 |
| AI40 | 40 | 50-55 | (1-6)×10-2 | 1000-1500 |
| AI50 | 50 | 71-80 | (1-6)×10-2 | 900-1200 |
| AI70 | 70 | 80-95 | (6-10)×10-2 | 700-1100 |
| AI100 | 100 | 110-120 | ≥5×10-2 | 650-1000 |
