Uniform Size Stainless Steel 316L Sintered Mesh Filter Elements Long Lifespan
Introduction of Standard Sintered Mesh Filter Elements
Usually standard sintered mesh consists five layers,the protective layer,the filter layer,the dispersion layer and two reinforcing meshes.It provides excellent performances such as high precision and strength,so it is ideal filter medium for applications requiring high strength and precision.
Thanks to its surface filtration construction,and smooth wire of the mesh,it is good at backwashing and regeneration.Therefore,it can be reused for a long time,and is especially suitable for continuous and automatic operation,which exc-eeds any other kind of filter material.
Furthermore,this mesh is easy to be formed,machined and welded.It can be produced into many kinds of shapes such as circular,cartridge,cone and pleats.
Features
1.Stable filtering precision:large extension of filtering precision(1-100um), the hole is not out of shape easily.
2.High strength,good rigidity:the fourth and fifth layers are the supporting layers ,the sixth layer is the reinforcing layer,so it has high pressure resistance, mechanical strength,easy installation and easy to use.
3.High temperature resistance and corrosion resistance: maximum 600 celsius degree.
4.Easy to wash and backwash: can be used with longer service span.
Specification
1.Standard material:SUS316L,SUS304
2.Available size:less than or equal 1200x1000mm
3.Filtration ration:1-300um
4.Special sizes are available on request
Main applications
1.Distribution and cooling material in high temperature.
2.Material used for gas distribution and fludization bed.
3.Material requiring high precision,stable perfermance in high temperature.
4.High pressure backwashed oil filter.
Parameters
|
construction |
Protective Layer |
| Filter Layer | |
| Dispersion Layer | |
| Reinforcing Layer | |
| Reinforcing Layer |
| type | nominal precision(um) | absolute accuracy(um) |
air permeability (L/min ·cm2·pa) |
bubble point pressure(pa) |
| AI1 | 6-7 | 5300-6000 | ||
| AI2 | 2 | 8-9 | (1-6)×10-4 | 4300-5000 |
| AI5 | 11-13 | (6-10)×10-4 | 3000-3700 | |
| AI10 | 10 | 16-18 | (6-10)×10-4 | 2700-3300 |
| AI15 | 15 | 24-26 | (1-6)×10-3 | 2000-2600 |
| AI20 | 20 | 28-32 | (1-6)×10-3 | 1800-2300 |
| AI25 | 25 | 34-36 | (6-10)×10-3 | 1400-1900 |
| AI30 | 30 | 40-45 | (6-10)×10-3 | 1200-1700 |
| AI40 | 40 | 50-55 | (1-6)×10-2 | 1000-1500 |
| AI50 | 50 | 71-80 | (1-6)×10-2 | 900-1200 |
| AI70 | 70 | 80-95 | (6-10)×10-2 | 700-1100 |
| AI100 | 100 | 110-120 | ≥5×10-2 | 650-1000 |

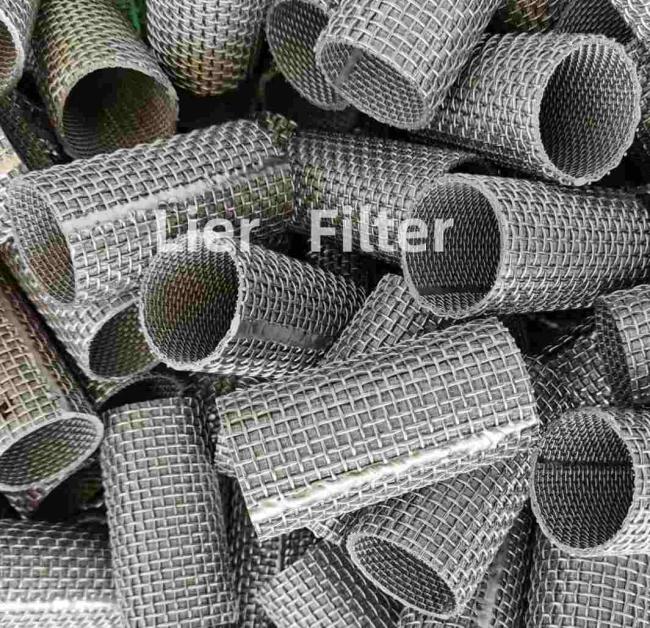

Related Photos
Product Advantages
1.High temperature resistance.
2.High corrosion resistance.
3.Easy to backwash,reusable.
4.High precision.
5.High strength.
