Easy To Backwash SS316 Sintered Metal Filter Disc Used In Various Fields
Introduction of Standard Sintered Mesh
Usually standard sintered mesh consists five layers,the protective layer,the filter layer,the dispersion layer and two reinforcing meshes.It provides excellent performances such as high precision and strength,so it is ideal filter medium for applications requiring high strength and precision.
Thanks to its surface filtration construction,and smooth wire of the mesh,it is good at backwashing and regeneration.Therefore,it can be reused for along time,and is especially suitable for continuous and automatic operation,which exc-eeds any other kind of filter material.
Furthermore,this mesh is easy to be formed,machined and welded.It can be produced into many kinds of shapes such as circular,cartridge,cone and pleats.
Features
1.High filtration accuracy, stable aperture, small pressure loss, aperture does not change with pressure. It can effectively remove suspended matter and particles, with good filtration precision and purification effect.
2.High porosity, uniform and smooth pores, small initial resistance, easy backwash, strong regeneration ability, long service life, especially suitable for fluid distribution, homogenization treatment and other occasions requiring high uniformity.
3.High mechanical strength, good rigidity, good plasticity, oxidation resistance, corrosion resistance, do not need additional skeleton support protection, easy installation and use, easy maintenance, good assembly, can be used for welding, bonding, processing.
Applications
Specification
1.material: SS316L
2.Size:1200*1000mm
3.Special specification can be made on your request
Parameters
|
construction |
Protective Layer |
| Filter Layer | |
| Dispersion Layer | |
| Reinforcing Layer | |
| Reinforcing Layer |
| type | nominal precision(um) | absolute accuracy(um) |
air permeability (L/min ·cm2·pa) |
bubble point pressure(pa) |
| AI1 | 6-7 | 5300-6000 | ||
| AI2 | 2 | 8-9 | (1-6)×10-4 | 4300-5000 |
| AI5 | 11-13 | (6-10)×10-4 | 3000-3700 | |
| AI10 | 10 | 16-18 | (6-10)×10-4 | 2700-3300 |
| AI15 | 15 | 24-26 | (1-6)×10-3 | 2000-2600 |
| AI20 | 20 | 28-32 | (1-6)×10-3 | 1800-2300 |
| AI25 | 25 | 34-36 | (6-10)×10-3 | 1400-1900 |
| AI30 | 30 | 40-45 | (6-10)×10-3 | 1200-1700 |
| AI40 | 40 | 50-55 | (1-6)×10-2 | 1000-1500 |
| AI50 | 50 | 71-80 | (1-6)×10-2 | 900-1200 |
| AI70 | 70 | 80-95 | (6-10)×10-2 | 700-1100 |
| AI100 | 100 | 110-120 | ≥5×10-2 | 650-1000 |

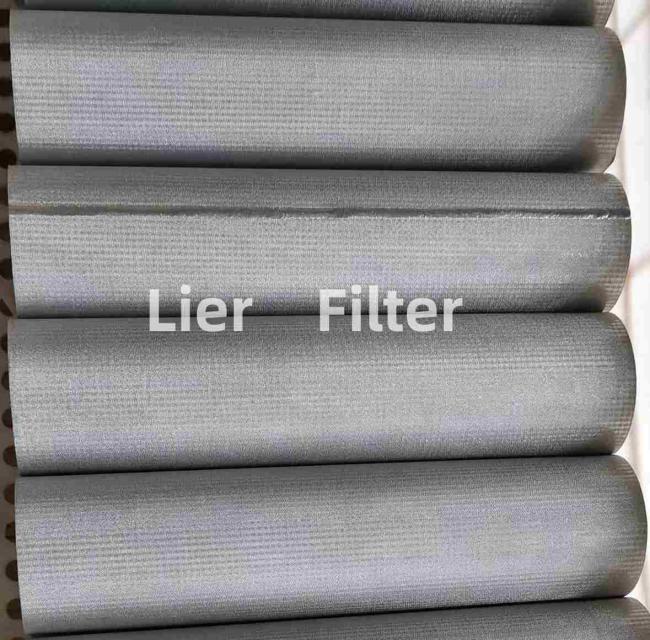

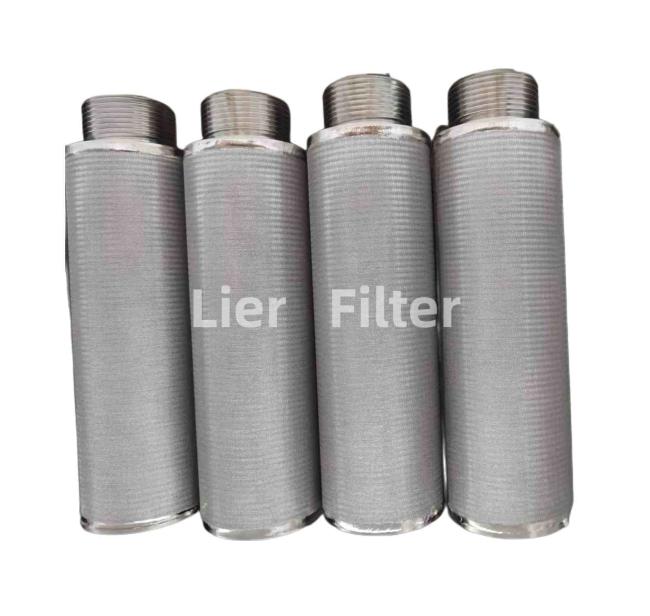

Related Photos
Product Advantages
1.High temperature resistance.
2.High corrosion resistance.
3.Easy to backwash,reusable.
4.High precision.
5.High strength.
