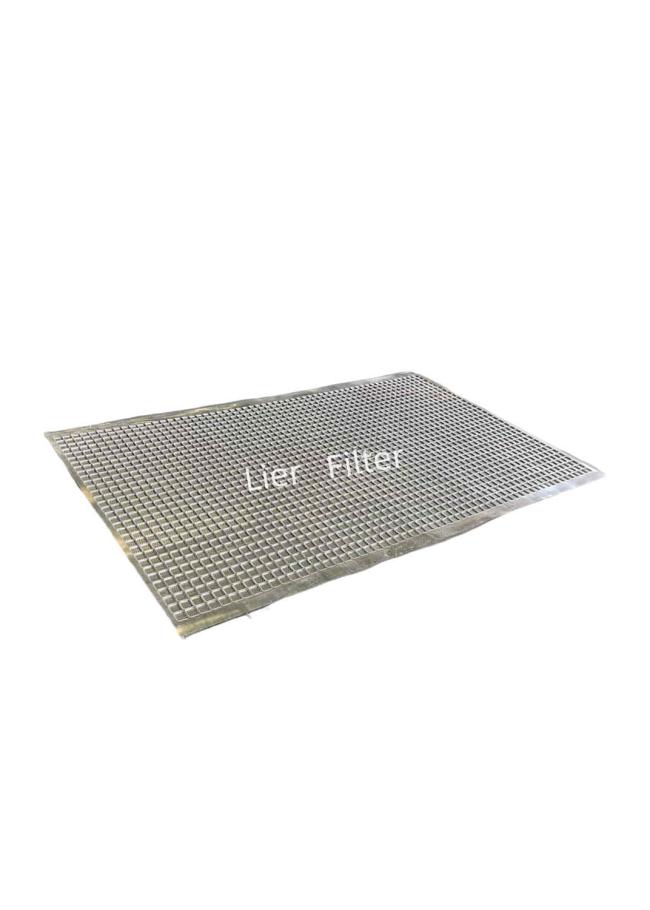

High Dirt Holding Capacity 1.7mm SS304 Sintered Mesh Filter In Chemical Industry
Introduction of Standard Sintered Mesh
Usually standard sintered mesh consists five layers,the protective layer,the filter layer,the dispersion layer and two reinforcing meshes.It provides excellent performances such as high precision and strength,so it is ideal filter medium for applications requiring high strength and precision.
Thanks to its surface filtration construction,and smooth wire of the mesh,it is good at backwashing and regeneration.Therefore,it can be reused for along time,and is especially suitable for continuous and automatic operation,which exc-eeds any other kind of filter material.
Furthermore,this mesh is easy to be formed,machined and welded.It can be produced into many kinds of shapes such as circular,cartridge,cone and pleats.
Features
1.Filtration Specialists with 10 years’experience.
2.OEM Service for you and satisfy different markets demand.
3.Widely used in aviation, railway, power plant, coal mining, construction mining, etc.
4.Samples for 1 pcs and small order 5pcs are allowed.
5.Professional technical data systems guaranteed the correctness of filter.
Specification
1.material: SS316L
2.Size:1200*1000mm
3.Special specification can be made on your request
Parameters
|
construction |
Protective Layer |
| Filter Layer | |
| Dispersion Layer | |
| Reinforcing Layer | |
| Reinforcing Layer |
| type | nominal precision(um) | absolute accuracy(um) |
air permeability (L/min ·cm2·pa) |
bubble point pressure(pa) |
| AI1 | 6-7 | 5300-6000 | ||
| AI2 | 2 | 8-9 | (1-6)×10-4 | 4300-5000 |
| AI5 | 11-13 | (6-10)×10-4 | 3000-3700 | |
| AI10 | 10 | 16-18 | (6-10)×10-4 | 2700-3300 |
| AI15 | 15 | 24-26 | (1-6)×10-3 | 2000-2600 |
| AI20 | 20 | 28-32 | (1-6)×10-3 | 1800-2300 |
| AI25 | 25 | 34-36 | (6-10)×10-3 | 1400-1900 |
| AI30 | 30 | 40-45 | (6-10)×10-3 | 1200-1700 |
| AI40 | 40 | 50-55 | (1-6)×10-2 | 1000-1500 |
| AI50 | 50 | 71-80 | (1-6)×10-2 | 900-1200 |
| AI70 | 70 | 80-95 | (6-10)×10-2 | 700-1100 |
| AI100 | 100 | 110-120 | ≥5×10-2 | 650-1000 |
Applications
Related Photos
Product Advantages
1.High temperature resistance.
2.High corrosion resistance.
3.Easy to backwash,reusable.
4.High precision.
5.High strength.
Our Team
The Reason for Choosing Us
Certificate
Packing
Transportation
FAQ
Q:What parameters need to provide for the design of the filter element?
A:Length, width, height, material, diameter, precision, connection method, etc. If there are other necessary parameters, please explain together.
Q:Are you trading company or manufacturer?
A:We have our own factory and production line. Everything is very flexible, no need to worry about additional costs. At the same time, quality can also be guaranteed.
Q:How many years of production and export experience do you have?
A:We have more than 20 years of production experience and 15 years of export experience. Our products have been used all over the world and have a good reputation, please rest assured to use.
