Industrial Alloy Steel SS Basket Strainer filter OEM ODM
Industrial Basket Filter , Consisting Of Nozzles , Fasteners, Etc.
Introduction
The blue filter is mainly composed of a nozzle, a main pipe, a filter basket, a flange, a flange cover and fasteners. When the liquid enters the filter basket through the main pipe, the solid impurity particles are blocked in the filter basket, and the clean fluid passes through the filter basket and is discharged from the filter outlet. When cleaning is required, unscrew the screw plug at the bottom of the main pipe, drain the fluid, remove the flange cover, and re-install it after cleaning. Therefore, it is extremely convenient to use and maintain
parameter
| Product name: : | Basket filter |
| Item model number: | TDG |
| Product diameter: | DN25～DN300 |
| Product pressure: | 1.0-6.4Mpa |
| product material: | Cast steel, stainless steel, alloy steel, etc. |
| Applicable object | water filtration |
| Product overview: | Production standard: standard GB, mechanical standard JB, chemical standard HG, American standard API, ANSI, German standard DIN, Japanese JIS, JPI, British standard BS production. Body material: copper, cast iron, cast steel, carbon steel, working temperature: -196℃-650℃. Connection method: internal thread, external thread, flange, welding, butt welding. Drive mode: manual |

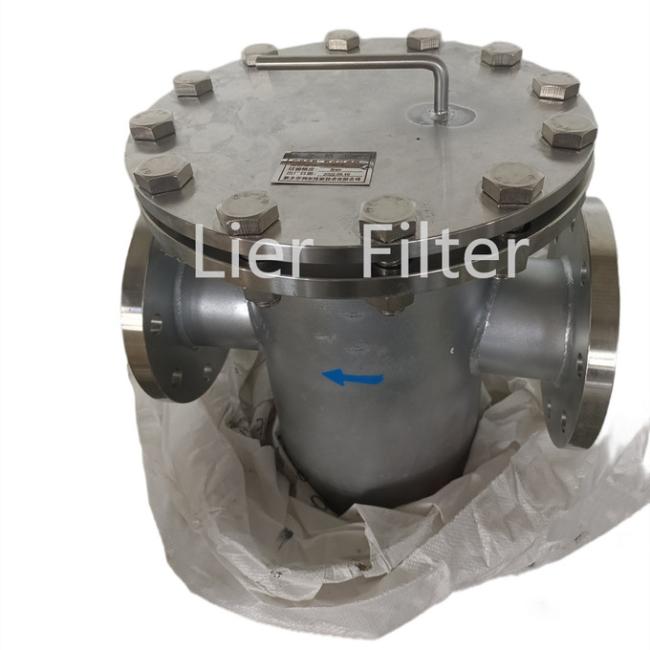

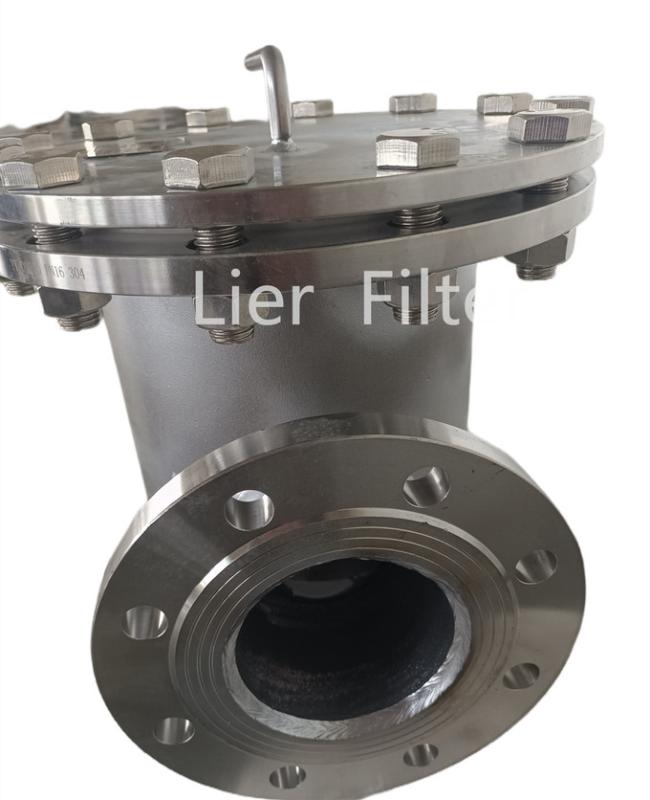

photos
Our Advantage
Our technical service department serves consumers throughout the working day. If you have any questions about purchasing, you can contact us at any time by email or phone,and we will provide technical guidance services.
Sales continue to grow and are exported overseas;
We are a professional manufacturer of filtration equipment. We have strict quality management system;
Focus on innovation and development;
Use fast transportation to provide the best service
