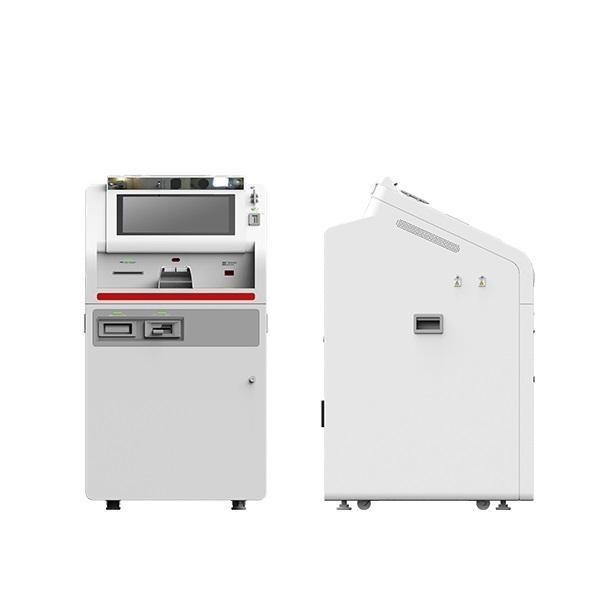

Intelligent Cash Deposit Machine Single Screen 3.2GHz CPU cash deposit machine
Large deposit machine cash machine deposit atm machine to deposit money
|
Components
|
Specification
|
|
Computer
|
Industrial Mainboard: H81;
CPU: 3.2GHz, Intel Core i3 Memory: support Max 8GB 1600/1333MHz DDR3L/1.35V SDRAM; SSD 250GB; RAM 4G; Industrial computer cabinet with power supply; Required ports (Serial, USB, VGA, DVI, etc.) to connect all the devices; Two 10/100 Mbps or higher Ethernet network cards with RJ45 ports; (More sizes and types of PC available upon request) |
|
Monitor
|
TFT LCD : 15, 17 or 19 optional
Brightness: 300~1200nits Contrast: 450:1~1000:1 Resolution: 15 1024*768 17 1280*1024 19 1280*1024 More sizes between 20"~46" upon request |
|
Touchscreen
|
SAW Touch : 15 17 19"
Resolution : 4096*4096 (More types of touchscreen available: capacitive, resistive or IR optional) |
|
Input Device
|
3DES Metal EPP : 16 keys, waterproof, dustproof, vandal proof
|
|
Cash Acceptance Module
|
• Four way acceptable;
• Numerous interface are available; • Validation rate of 98% or greater; • Easy to installation and maintenance; • Approximately three seconds to stack; • Rarely jams as bank note is always controlled; • Cashbox capacity: 2000 notes, or customized, with safty case for protecting the cassette; |
|
Speaker
|
Multimedia : Left-right bi-channel amplified output
|
|
Enclosure
|
ColdRoll Steel : Steel powdercoated front
Powercoated backcover |
|
OS&Drivers
|
Windows XP+SP2 (WINCE, Linux, Unix, WIN2000) and all related drivers available
|
|
Packing
|
Bubble Foam, carton, wooden case
|
|
Other Optionals : UPS, Video Camera, Alarm System, Barcode Scanner,Track Ball, Photo Printer, Cash Acceptor, Card Dispenser, Check Acceptor, Infrared, Bluetooth, PSAM Card, etc.
|
|
Company Introduction:
The company has strong self-service terminal products and digital label product design capabilities, and can customize all kinds of self-service terminal products and digital label products according to customers'personalized needs; has professional sheet metal team and sheet metal processing plant, modern self-service terminal and digital label assembly production line; the core components of the products are products of well-known manufacturers at home and abroad. The company's strong design and development strength, professional production equipment and testing equipment, strict production in accordance with the operating procedures and quality standards established by ISO 9001, ensure the product's technological leadership, quality safety and stability and reliability.
