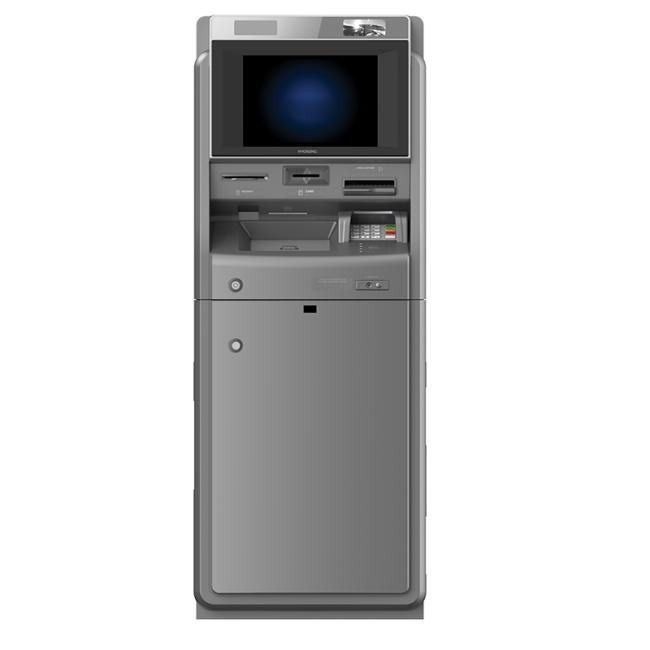

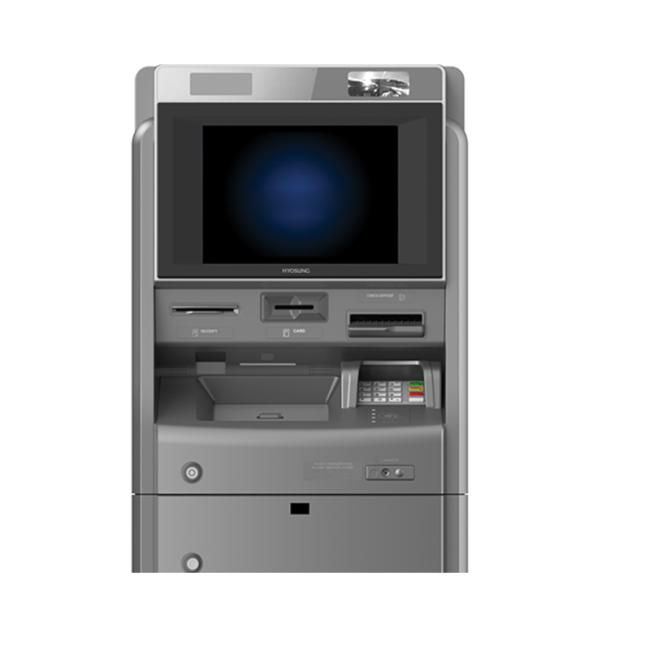

Cash Deposit Machine 17 Inch Touch Screen Cash Dispenser Machine Kiosk
Product Description
This payment kiosk is made of high quality cold-rolled steel sheet. It's of high performance industrial PC system and high-tech touch screen technology. It's in unique design, elegant appearance, easy to operate. What's more, we can customize the hardware of the machine to meet customers' request.
| Components | Specification | |
| PC (Customizable) | CPU | G2020 / J3160 / I3 / I5 / I7 |
| RAM | 2G /4G / 8G | |
| HDD / SSD | 500G / 128G | |
| Interface | RS-232 Ports; USB Ports; 10/100M Net Port; Integrated Net Card; Sound Card ; WIFI | |
| Touch Screen | Screen Size | 15'' /17" /19" (optional from 10.1" to 82") |
| Screen Type | SAW / IR / Capacitive | |
| Monitor | Screen Size | 15'' /17" /19" (optional from 10.1" to 82") |
| Brightness | 250/300 /1000 cd/m2 | |
| Contrast | 1000:1 / others | |
| Resolution | 1024X768/ 1280x1024 /1920x1080 / others | |
| Kiosk Cabinet | Material | Cold-rolled steel with1.5mm / 2.0 mm thickness |
| Coating | Car painting technology | |
| Feature | Easy service access through front and back | |
| Color or Logo | Customizable | |
| Parts | Multimedia speakers ,Internal ventilation system | |
| Card Reader | Card Type | Magcard, IC Card, RF Card, Mifare Card, UL Card |
| Interface | RS232 / USB | |
| Encrypted Pin Pad | Key Life | Span 2,000,000 cycles |
| Key Force | 2-3N | |
| Cash Acceptor | Brand | Cash Code / MEI / ITL / JCM |
| Validation Rate | High than 96% | |
| Capacity | 600 / 1000 / 1500 /2000 / 2200 notes | |
| Printer | Brand | Epson / Custom / Masung |
| Width of Paper | 58mm / 80mm / 112mm | |
| Printing Speed | 150 mm/s | |
| Interface | RS232 / USB | |
| Cash dispenser | Brand | Fujitsu / CDM |
| Cassettes | 1-6 cassettes | |
| Power Supply | AC Input Voltage | 100~240V/AC |
| Optional | Card dispenser / Card printer /Camera / Passport scanner / Fingerprint reader / UPS /Coin acceptor / Cash recycler / Barcode Sanner | |
| Package | Safe packing with bubble foam, in wooden case | |
| processing module | Hopper:500 notes Stacker:200 notes Reject stacker:100 notes Processing speed:1000 notes/ mins cash bag capacity:20,000 notes |
|
Cassette: 4 recyclable units, 1 reject/retract unit Capacity: 4 recyclable units support to extend to Max. 8 recyclable sub units, the recyclable unit supports Max. 3400 banknotes, the reject unit and the retract unit support Max. 2250 banknotes. Up to 300 banknotes per transaction, 12 banknotes/second, OCR: Support banknote serial number recognition (opt.) |
