1000 Lb 500 Lb 250 Lb Pull Neodymium Magnet Permanent Magnet Assembly

Hook Magnet

Basic Information:

- Hook magnet is a type of magnetic assembly composed of magnetic material and other material shells (iron, stainless steel, plastic parts, rubber-coated) with hooks (fixed or rotatable);

- Different magnetic materials can be selected according to the magnetic strength and application requirements, including sintered Neodymium(NdFeB), Samarium Cobalt, AlNiCo, sintered ferrite, rubber magnet, etc.;

- The shell is mainly made of ferromagnetic material, which can be magnetized by the magnetic material to form an overall magnetic circuit, improve the magnetic force, utilize the magnetic performance efficiently;

- For the high-humidity environment with strict anti-corrosion requirements, special coating, injection molding, sealing and other processes can be used to improve the anti-corrosion characteristics of the parts;

- Hook magnet is widely used in our daily life, it can be used to hang towels, clothes, bags, keys, knives, etc.; it can be used to hang bird cages, whiteboards, furniture, etc.; with rotatable Carabiner, can be used in mountaineering facility; magnetized in pairs when needed; Special shape, logo, and appearance of different colors can be customized according to customer preferences.

Features

• Magnetic Materials:Neodymium, Ferrite, SmCo, AlNiCo or Rubber Magnets
• Hooks: Fixed Hook or Swivel Hook
• Coating: Nickle, Zinc, Epoxy, Powder Coating or Other Customized
• The Strongest Magnetic Force＞480KGs
• Hundreds of Types, Fulfill Various of Applications' Requirment

Dimension for Hook Magnet

Hook Magnet
Model	D (mm)	d (mm)	M	h (mm)	h1 (mm)	H (mm)	Part Weight (g)	Breakaway (kg)	Coating
MGTNE10	10	6	M3	5	12.5	33	6	2	Ni,Zn,Epoxy or Customized
MGTNE12	12	6	M3	5	12.5	33	7	4	Ni,Zn,Epoxy or Customized
MGTNE16	16	6.5	M4	7	12.6	35	12	8	Ni,Zn,Epoxy or Customized
MGTNE20	20	6.5	M4	7	14	36	2`1	12	Ni,Zn,Epoxy or Customized
MGTNE25	25	7.5	M5	8	17	45	37	25	Ni,Zn,Epoxy or Customized
MGTNE32	32	10	M6	8	18	48	61	34	Ni,Zn,Epoxy or Customized
MGTNE36	36	10	M6	8	18	48	69	50	Ni,Zn,Epoxy or Customized
MGTNE42	42	10	M6	8,6	18	48	101	72	Ni,Zn,Epoxy or Customized
MGTNE48	48	12	M8	11	24	61	182	81	Ni,Zn,Epoxy or Customized
MGTNE55	55	12	M8	12	28	64.5	252	95	Ni,Zn,Epoxy or Customized
MGTNE60	60	12	M8	15	28	64.5	362	160	Ni,Zn,Epoxy or Customized
MGTNE70	70	17	M10	17	34	80	566	200	Ni,Zn,Epoxy or Customized
MGTNE75	75	17	M10	18	35	81	681	270	Ni,Zn,Epoxy or Customized
MGTNE80	80	17	M10	18	35	81	761	300	Ni,Zn,Epoxy or Customized
Note: Dimension can be customized, contact us for more details and information.

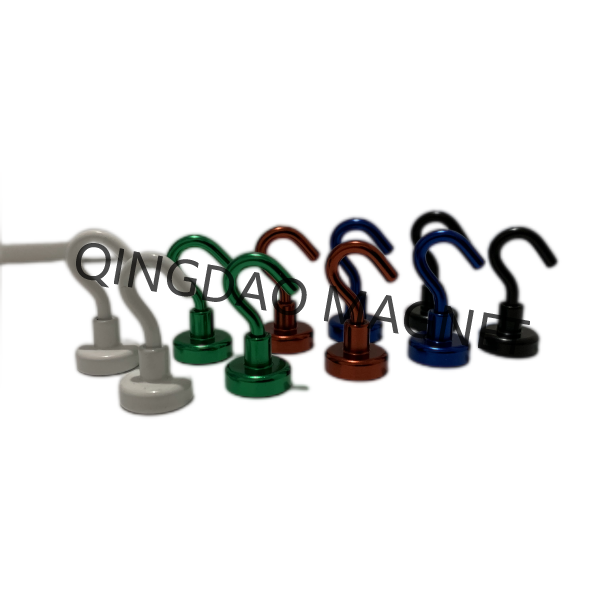

Pictures of Hook Magnets

Note

We have various types of pot magnet by our existing tooling and moulds, can also provide parts by customized, contact us freely if you have any inquiry.
