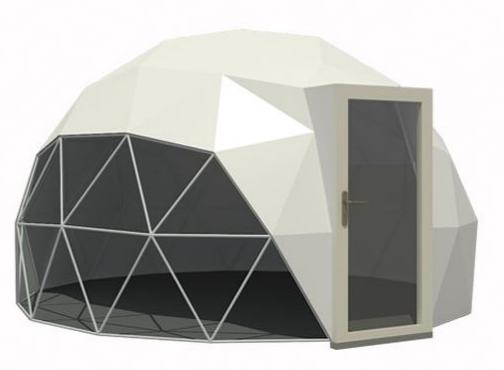

Fireproof Outdoor Camping Geodesic Dome Tent 5m Diameter For Accommodation
Diameter 5m Fireproof Outdoor Camping Geodesic Dome Tent For Accommodationo In Resort
| Name | Diameter 5m Fireproof Outdoor Camping Geodesic Dome Tent For Accommodationo In Resort |
| Brand Name | Hengnuo |
| Certificate | ISO 9001:2008 / SGS / CE |
| Size | Diameter: 3-50m |
| Frame Material | Galvanized steel tube |
| Roof Cover Material | 850g/Sqr PVC Fabric,Black-out. |
| Outer Cover Water proof Index | <3000mm |
| Feature | Waterproof / Fireproof/Wind Resisant / Snow Resistant/UV Resistant |
| Service Life | More than 15-20 years for frame and 5-8 years fort he cover |
| Application | Hotel house / Desert Resort / Glamping / Camping / Party |
| Wind Load | 100km /h,can be reinforce |
| Snow Load | 75kg/sqm |
The frames are made of hot-dip galvanized steel and stainless steel pipe.The life span is baout 15-20years,
The cover is made of double-coated PVC. It can be used around 5-8 years.
The features of pvc cover is fire Retardant (DIN 4102 B1, M2), wateroof and UV-resistanc

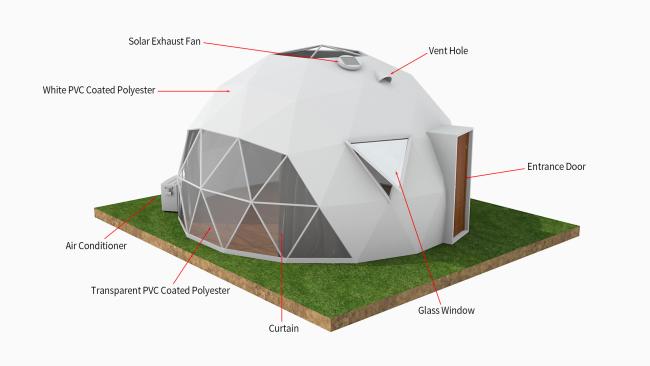

Structure of the Tent
j
Strong strcture: High quality Q235 steel pipe,resistance to max 12 level wind.
|
Size (Diameter) |
Ridge Height (m ) |
Area (sqm) |
Weight (KG) |
Frame pipe Diameter |
| 5m | 2.95 m | 19.6 m² | 220 KG | Φ 26x2mm |
| 6m | 3.5 m | 28.26 m² | 280 KG | Φ 26x2 mm |
| 7m | 3.9 m | 38.5 m² | 380 KG | Φ 26x2 mm |
| 8m | 4.8 m | 50.24 m² | 460 KG | Φ 32x1.5mm |
| 9m | 5.4 m | 63.6 m² | 480 KG | Φ 32x1.5 mm |
| 10m | 6 m | 78.5 m² | 500 KG | Φ 32x1.5 mm |
| Item name | Diameter 5m Fireproof Outdoor Camping Geodesic Dome Tent For Accommodationo In Resort |
| Main Profiles | Material:White painted Hot-dip Galvanized Steel Tube |
| Features:Stainless | |
| Cover | Density: 850g/sqm double coated blockout white PVC |
| 950g/sqm transparent PVC | |
| Meterial: PVC coated polyester fabric | |
| Features: Waterproof,fireproof,Uv-resistance,mildew proof,self-cleaning ability. | |
| Components | Hot-dip Galvanized Steel |
Windows: round / triangle / rectangle PVC window, round / triangle glass window.
Doors: double-swing glass door, single-swing glass door, PVC door
Heat insulation: 8mm or 12mm thickness insulation, PU leather cover heat insulation.
Curtain: single track or double track curtain, automatic skylight curtain
Ventilation :top ventilation window, solar fan
Shower room:1.2m*1.4m, 1.2m*1.7m, 1.2m*1.9m
Exhaust fan: solar exhaust fan,silent exhaust fan.
Other Optional Items: table, chair, lighting, A/C, partition, all-in-one bathroom,bathroom cabinet,toilet,
stove,chimney,installation tools etc.

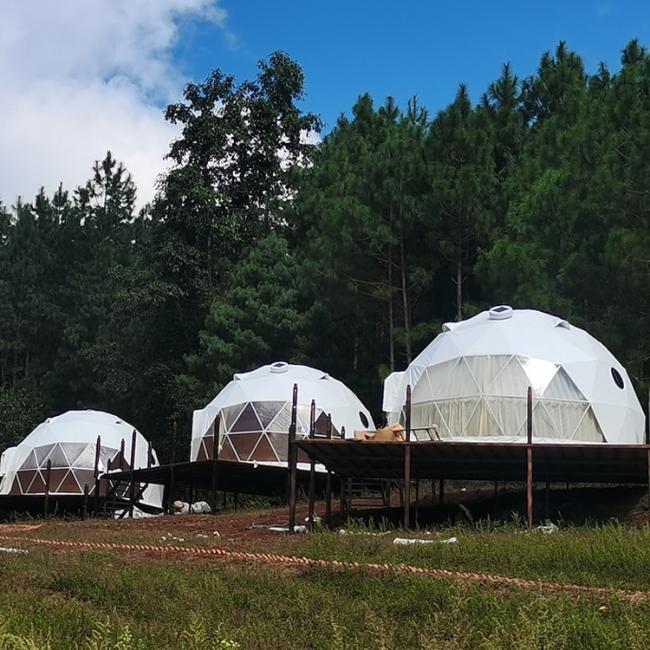

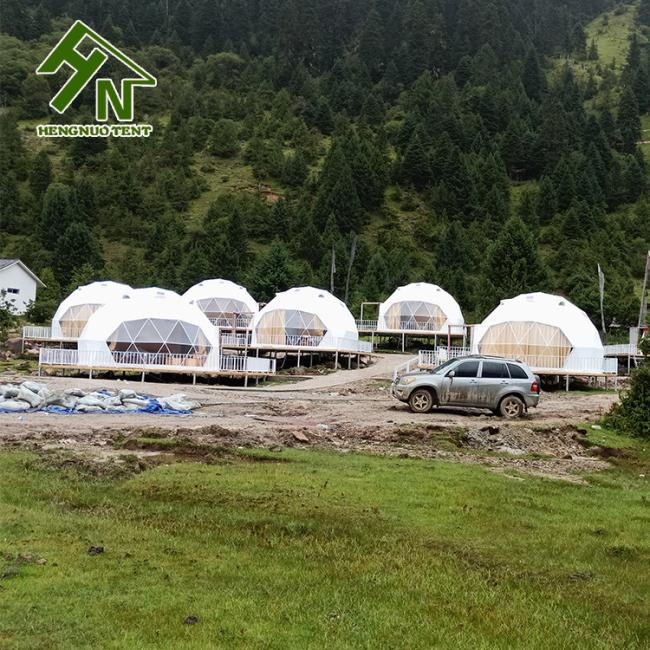

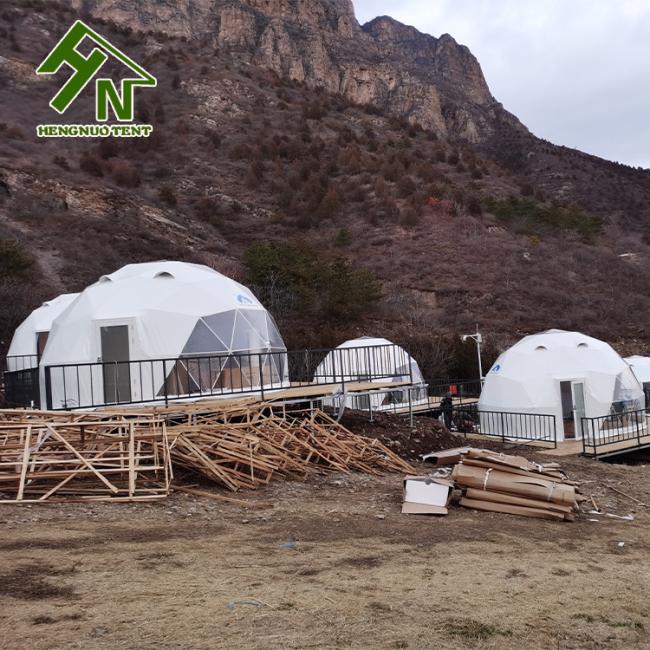

- - - - - Successful case - - - - -
Packing way
Packing:
Type A: (for free)
1.The hot-dip galvanized steel tubes are packed in air bubble plastic film, to avoid scratch
2.The covering fabric is packed in professional PVC zipper carry bag, to keep clearn.
3.Hardware and other accessories are packed in other PVC zipper bag
Type B: (extra fee)
All packed in the plywood box each set.
(If the tent is too big, typeA will be more suitabl.
Our tents are easy to assemble and disassemble.We will supply installation manual and vedio after delivery.
If necessary,we can send a technician to guide the instalation.
