Aluminum Alloy 6061 PVC Canopy Clear Wedding Marquee Tent 200 500 Seaters

Aluminum Alloy 6061 / T6 PVC Canopy Clear Wedding Maquee Tent 200 500 Seaters Waterproof

200 300 400 500 Seaters Luxury Aluminum Clear Canopy Maquee Wedding Tent ​

                                       Aluminum Frame Tent for Wedding / Party / Other  Activities

♣ DESCRIPTION

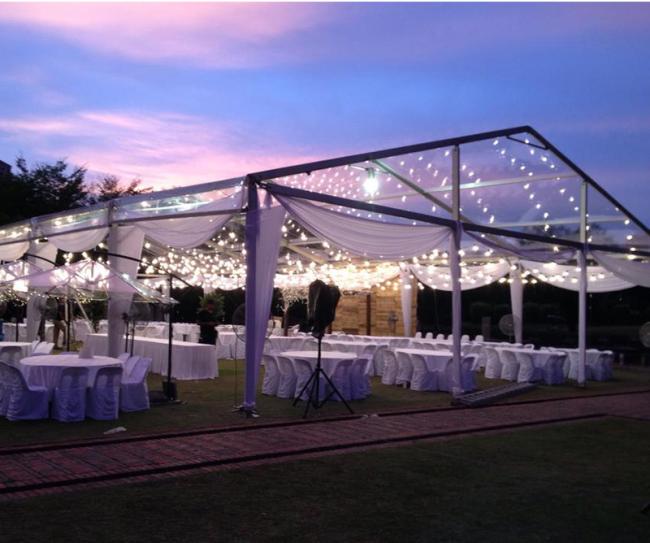

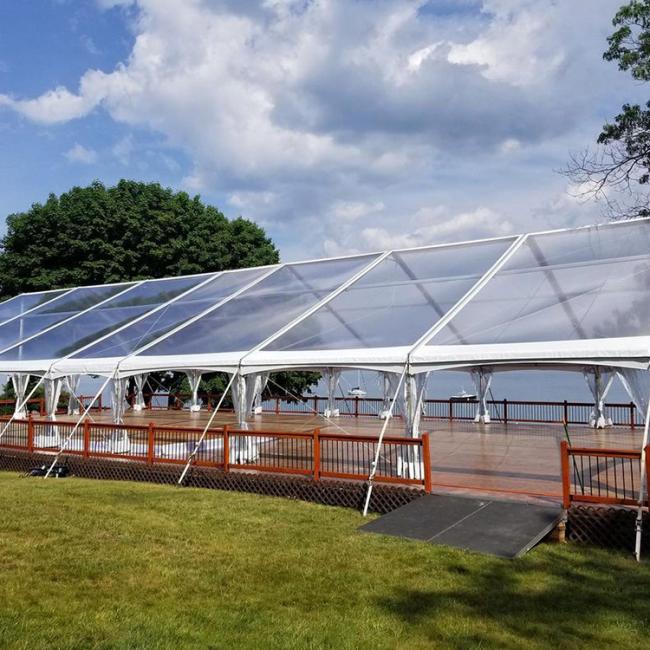

                  Luxury Clear Outdoor Marquee Tent

                     Name: Luxury Aluminum Clear Canopy Maquee Wedding Tent

                    Side Wall: Transparent PVC  cover

                    Outer Cover Water proof Index:<3000mm

                  Feature: Water Proof / Fire Resistant/Wind Resisant / Snow Resistant

                   Service Life:More than 12-20 Years For Frame , 5-8 Years For The Cover.

                    Application:Wedding Party / Outdoor Event / Trade Show Event/Sports event.

                 Wind Load:100km /h,can be reinforce

                 Snow Load:75kg/sqm.

                 Sizes are customized.Each tent can be customized to suit any application or need, from color and

                 printing to side walls and accessories,  from aluminum alloy frames that are durable ,each tent is

                 waterproof and flame retardant.

•                   Details reveal quality

•

•

                          OPTIONAL ACCESSORIES

                   1. Clear PVC windows, or clear PVC sidewall;

                   2. Roof lining and sidewall curtain, any color is available;

                   3. Plywood floor (galvanized steel frame with 18mm thickness platform);

                   4. Glass wall or glass door ( Aluminum frame with 6mm thickness toughened glass);

                    5. ABS wall ( hard plastic);

                    6. Air conditioning system (3p or 5p and different brand);

                    7. Ground anchor (0.5/1m per piece), loading plate or expansive screw;

                    8. Rain gutter (PVC material)

♣  MATERIAL  DETAILS

        Frame Material

        Aluminum Alloy T6061/T6,hard pressed extruded aluminum alloy,anodized surface handing,silver color,sturdy and                      never rust,over 15-20 years life span

                 Frame Available Size

                 84 x 48 x 3mm, 112 x 203 x 4mm, 166 x 88 x 3mm, 120 x 200 x 4mm, 120 x 250 x 4mm, 120 x 300 x 5mm,

                 120 x 350 x 6mm, 120 x 400 x 6mm (depend on the span size)

                 Frame quality:

          At least 250 MPa,hardness achieved 15 HW

                 Frame features:

                 Stainless,lightweight, durable, 4 channel.

               Cover Material

                Fabric cover:High quality  double PVC-coated polyesster cextile,100% waterproof,flame retardant to

                  DIN4102 B1,M2,CFM,UV resistant,tear resistant, self-cleaning ability,etc.

                  Density:

                  850g / sqm Block-out white PVC Tarpaulin, 950g / sqm transparent PVC Fabric; 650g/sqm White PVC

                  for Sidewall

                   Thickness: ≥0.67mm

                   Features: Best performances in breaking strength, water-proof, UV-proof, flame retardant

                   (DIN4102 B1 M2 / NFPA701)

                   Other Features

                *Frame struss: hard pressed extruded aluminium 6061/T6(15HW) which can last more than 15 years.
                *Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1,                        M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
                *Connector: strong hot-dip galvanized steel
                *Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
                *Wind load: max.100km/h (can be reinforced)
                *Snow load: 25kg/sqm (snow can't stay if use big degree roof pitch design)
                *Easy to be assembled and dismantled, movable.
                *No pole inside, 100% available interior space.

                   Application of The Medium-Scale Outdoor Marquee Tent

                  This tent could be widely used for medium-scaled events such as assembly, wedding,party,catering and other                               purpose.It contains about 200-500 people.

               Such tent is easy to assemble and disassemble.We will supply installation manual and vedio.

               If necessary,we can send a technician to guide the instalation .

           A&Q

                Q1: Are you factory?
                 A:Yes, we are factory, we have 15 years work experience.

                 Q2: How can I calculate the tent size I need?
                 A:Usually we need to determine tent usage. If the tent with tables and chairs in it,one person need 1.5

                 square meters.If tent without tables,one person need 1 square meter.

                Q3.Does your company accept customized tent?
                A:Yes, we can make the tent according to customers different need. Customized sizes are acceptable.

                Q4. Does your company provide any help to install the tent?
                A:Yes, usually we will send manual guide books or Video to help customer installation.If customer need

                our engineer come to their country to help install,that is also workable.

                Q5: Does your tent install repeatedly?
                A:Yes, Our tents can be assembled and dismantled and repeatedly.They installed sections by sections,

                Aluminum structure can be used for 25 years,PVC fabric can be used for 8-10 years.

                Q6. Can I visit your company ?
                 A: Yes,sure,welcome.We are in Guangzhou which is near the Baiyun Airport. When you arrive at the airport,

                 we will pick you up.
