Aluminum Structure Luxury Transparent Banquet Tent Party Polygon Canopy
Aluminum Structure Luxury Large Outdoor Transparent Wedding Polygon Tent
>>>>>Product descrption<<<<<
The roof beams of the polygon top tent are combined by several split aluminum alloy beams and in a polygon shape, so it is named polygon top tent.
The clear span of polygon top tent is 10m, 12m, 15m, 18m, 20m, 25m, 30m, 40m, 50m, 60cm and 80cm. The standard side height of 10-40m span width tents is 4m and 5m for 50m and 60m. Bay distance is 5m, the length can be increased and decreased by 5m bay without limit. It can also be customized for clients’ special requirements.
The design for polygon top tent is with the advanced idea and the structure is quite firm. It is designed for meeting the requirements of bigger interior space and elegant polygonal appearance. The features of polygon top tent: modular system, easy to be assembled and dismantled, durable, wind resistance can reach 100-120km/hour, flame retardant with relevant certificates. It is suitable for large-scale concerts, exhibitions, big parties, sports events and so on.
>>>>>Features<<<<<
1) Rainproof, fire retardant, UV-protection, Wind resistant can be environmentally controlled in any climate;
2) Our factory operation strictly conducted in accordance with ISO 9001 quality control standards, we own the CE/SGS (TUV) quality management system certificate;
3) Very easy and very fast to install and dismantle;
4) 100% re-locatable, and unobstructed free span space.
>>>>>Specification<<<<<
| Main Profile | Material: Hard pressed extruded aluminium 6082-T6, 6061/T6 Features: Stainless |
| Cover | Material: Double PVC-coated polyester textile, 750g-900g/m² Features: Waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant |
| Eave Connection | Hot-dip Galvanized twin steel plate |
| Wind Load | 100 km/h |
>>>>>Size<<<<<
| Width (m) | Side Height (m) | Bay Distance (m) | Main Profile (mm) | Max Wind Load |
| 15 | 3 | 5 | 166x88x3 | 100 km/h |
| 20 | 4 | 5 | 112x203x4 | 100 km/h |
| 25 | 4 | 5 | 112x203x4 | 100 km/h |
| 30 | 4 | 5 | 120x254x4 | 100 km/h |

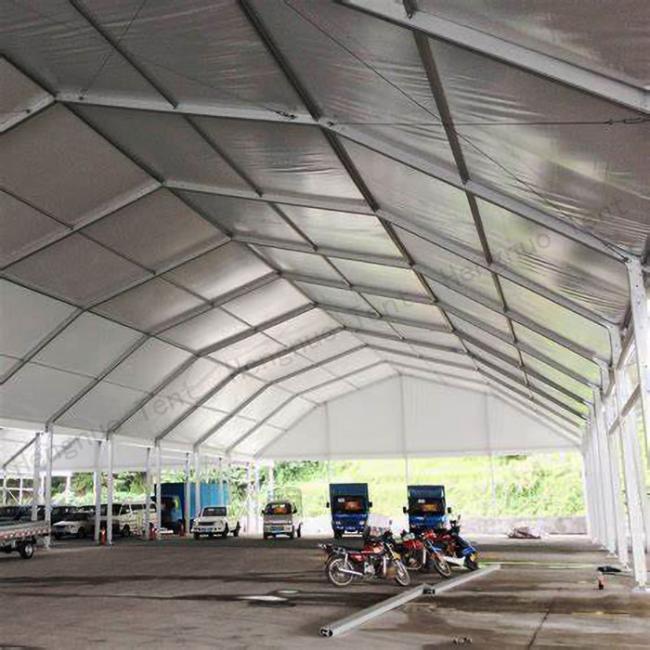

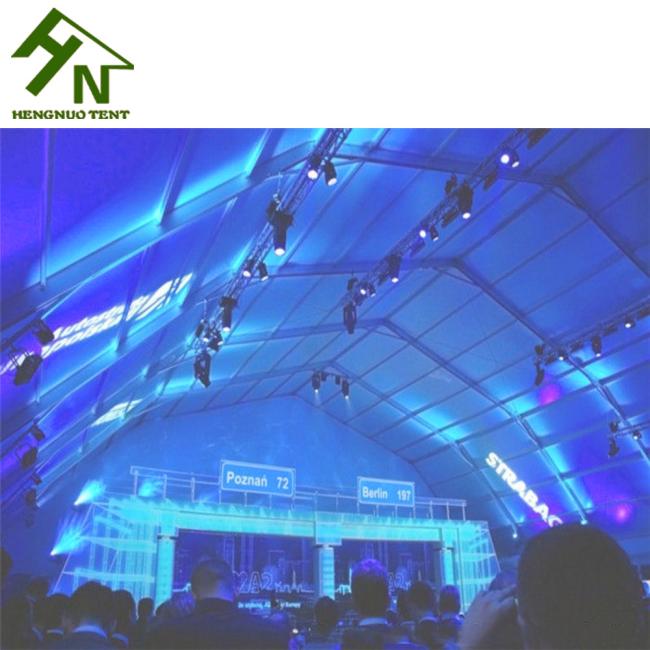

>>>>>Our Project Pictures<<<<<
