Economical Big Size Temporary Warehouse Building Tent For Storage

   Outdoor Aluminum Tent  For Logistics / Warehouse /Express Logistics

♣ DESCRIPTION

                  Warehouse Tent

                     Name: Factory Wholesale Large Size Strong Frame Storage Industrial Warehouse Tent

                  Size: 20x25m,20x30m,20x40m,25x30m,30x40m,30x50m,30x60m.30x80m,30x100m,40x80m,customized

                    Side Wall:PVC wall

                    Outer Cover Water proof Index:<3000mm

                  Feature: Water Proof / Fire Resistant/Wind Resisant / Snow Resistant

                    Application:Wearhouse/Hospital/Wedding Party / Outdoor Event / Trade Show Event/Sports event.

                 Wind Load:100km /h,can be reinforce

                 Snow Load:75kg/sqm.

                       Sizes are customized.Each tent can be customized to suit any application or need, from color and

                       printing to side walls and accessories, from aluminum alloy frames that are durable ,each tent is

                       waterproof and flame retardant.

•                   Details reveal quality

•

•

                  Size: from 3 meters to 50meters

                  Eave height: standard from 2.5m, 3m, 4m to 5m upon span width (or special height per requested

                  Length: Unlimited, extended by 3m or 5m each bay

                          OPTIONAL ACCESSORIES

                1. Clear PVC windows, or clear PVC sidewall;

                2. Roof lining and sidewall curtain, any color is available;

                3. Plywood floor (galvanized steel frame with 18mm thickness platform);

                4. Glass wall or glass door ( Aluminum frame with 6mm thickness toughened glass);

                5. ABS wall ( hard plastic);

                6. Air conditioning system (3p or 5p and different brand);

                7. Ground anchor (0.5/1m per piece), loading plate or expansive screw;

                8. Rain gutter (PVC material)

♣  MATERIAL  DETAILS

                Frame material

                Hardpressed Extruded Aluminum Alloy 6061-T6

                Frame Available Size

                84 x 48 x 3mm, 112 x 203 x 4mm, 166 x 88 x 3mm, 120 x 200 x 4mm, 120 x 250 x 4mm, 120 x 300 x 5mm,

               120 x 350 x 6mm, 120 x 400 x 6mm (depend on the span size)

                 Frame quality

                 At Least 250 MPa

                 Frame features

                 Stainless, Lightweight, Durable, 4 Channel

                Cover Material

               Fabric cover:High quality  double PVC-coated polyesster cextile,100% waterproof,flame retardant to

                 DIN4102 B1,M2,CFM,UV resistant,tear resistant, self-cleaning ability,etc.

                 Cover Part

                1) The roof and sidewall fabric cover are made of double coated PVC.

                2) The fabric is waterproof and UV resistant.

                3) The fabric is flame retardant to DIN4102, M2 and Grade B1.

                4) The weight of fabric is from 650g/sqm to 850g/sqm.

                Side panels(optional) :

                (1)650g/sqm double coated pvc, translucent, waterproof , flame retardant meet M2, B1, DIN4102 standard,

                (2)950g/sqm transparent pvc fabric

                (3)solid walls: glass panel, sandwich panels, ABS panels, color steel sheet

                  Application of The Big Outdoor Tent

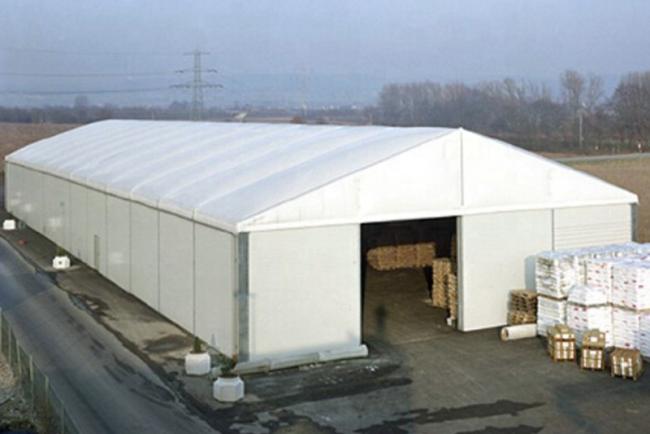

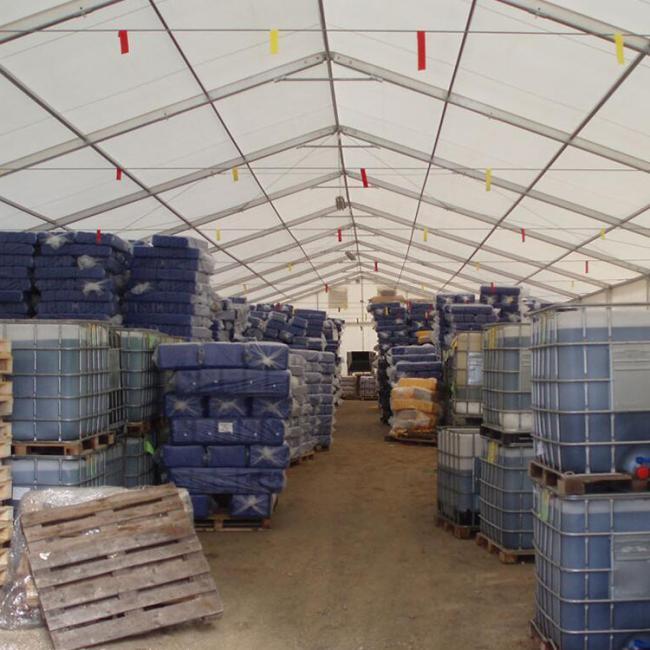

                  THis tent could be widely used for warehouse,storage,and express logistics.

              The warehouse tent is easy to assemble and disassemble.We will supply installation manual and vedio.

               If necessary,we can send a technician to guide the instalation .
