Big Transparent Bay Window Geodesic Dome Tent For Outdoor Event
Guangzhou Big Transparent Bay Window Geodesic Dome Glamping Tent For Outdoor Event
| Name | Big transparent bay window geodesic dome glamping tent for outdoor event |
| Brand Name | Hengnuo |
| Certificate | ISO 9001:2008 / SGS / CE |
| Size | Diameter: 3-50m |
| Frame Material | Galvanized steel tube |
| Roof Cover Material | 850g/Sqr PVC Fabric,Black-out. |
| Outer Cover Water proof Index | <3000mm |
| Feature | Water Proof / Fire Resistant/Wind Resisant / Snow Resistant |
| Service Life | More than 12-20 Years For Frame And 3-5 Years For The Cover |
| Application | Hotel house / Desert Resort / Glamping / Camping / Party |
| Wind Load | 100km /h,can be reinforce |
| Snow Load | 75kg/sqm |
The frames are made from stoving varnish, galvanized steel and stainless steel. Dome cover is double-
coated PVC fabric. The features of pvc cover is fire Retardant (DIN 4102 B1, M2), wateroof, UV
resistance.
Structure of the Tent
Q235 steel
Resistance to max 12 level wind
. Frame: galvanized steel, stainless steel or stoving varnish
- Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM,UV resistant, tear resistant, self-cleaning ability, etc.
- Connector: strong hot-dip galvanized steel
-The dome tent is easy and fast to assemble and dismantle. We will offer the installation manual and video.
-The frame of the tent is white paint hot-dip galvanized steel pipes, PVC cover is fire retardant.
-Full line accessories available. You can chose the accessories for the tent accord withe your needs.
-The frame can be used more than 10 years, the PVC cover can be used around 3 years.
- It is a four season tent, your client can living inside all year around. You can earn back the investment easily.
|
Size (Diameter) |
Ridge Height (m ) |
Area (sqm) |
Weight (KG) |
Frame pipe Diameter |
| 5m | 2.95 m | 19.6 m² | 220 KG | Φ 26x2mm |
| 6m | 3.5 m | 28.26 m² | 280 KG | Φ 26x2 mm |
| 7m | 3.9 m | 38.5 m² | 380 KG | Φ 26x2 mm |
| 8m | 4.8 m | 50.24 m² | 460 KG | Φ 32x1.5mm |
| 9m | 5.4 m | 63.6 m² | 480 KG | Φ 32x1.5 mm |
| 10m | 6 m | 78.5 m² | 500 KG | Φ 32x1.5 mm |
| Item name | Outdoor Living Dome Tent Waterproof Glamping Geodesic Dome Tent With Solar Fan |
| Main Profiles | Material:White painted Hot-dip Galvanized Steel Tube |
| Features:Stainless | |
| Cover | Density: 850g/sqm double coated blockout white PVC |
| 950g/sqm transparent PVC | |
| Meterial: PVC coated polyester fabric | |
| Features: Water proof, UV resistance, fire retardent,self-cleaning ability, Mildew Proof. | |
| Components | Hot-dip Galvanized Steel |
| Allowed temperature condition | -30 degree Celsius~+70 degree Celsius |
Window: round glass window / round window for air vent with curved outer cover / skylight
Door: Single leaf glass door / Double leaves glass door/ Door canopy for single leaf glass door
Wooden floor: 10mm thickness wooden floor+8mm thickness solid PVC panel
Other optional items: Insulation / Solar fan / Curtain / Camouflage net /J-type hook for attach the canvas to the bottom of framework / Plywood box for packing or Iron frame

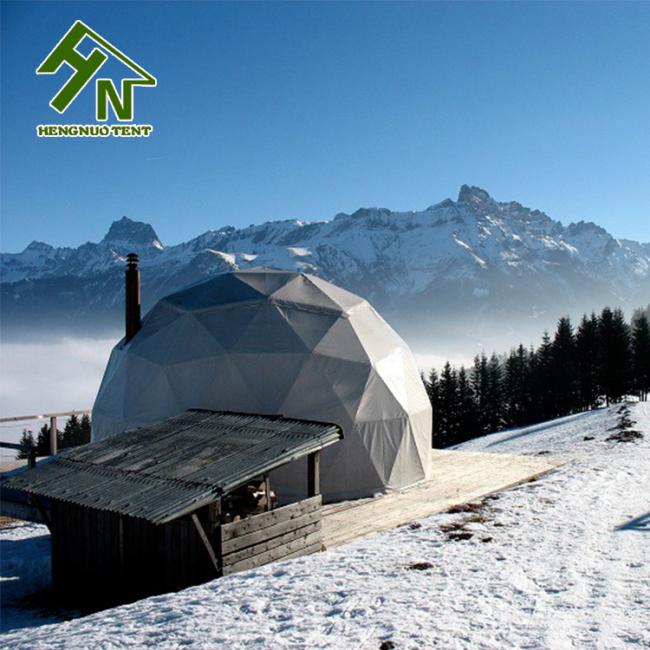

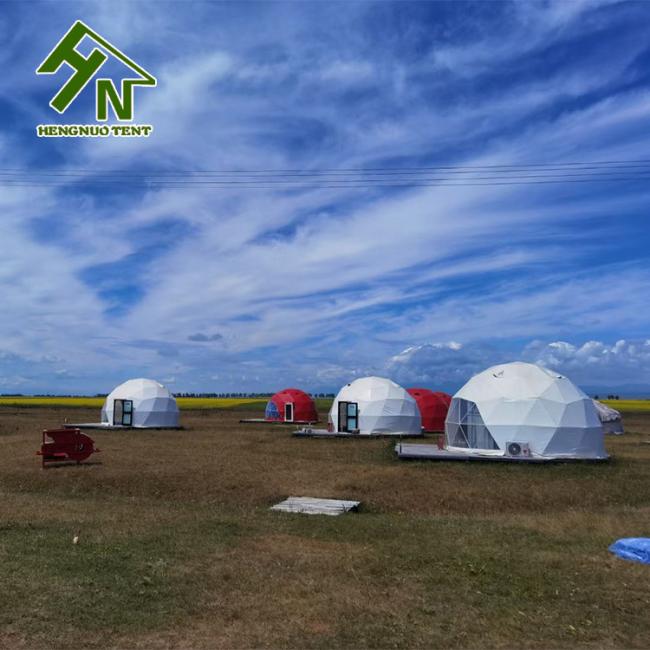

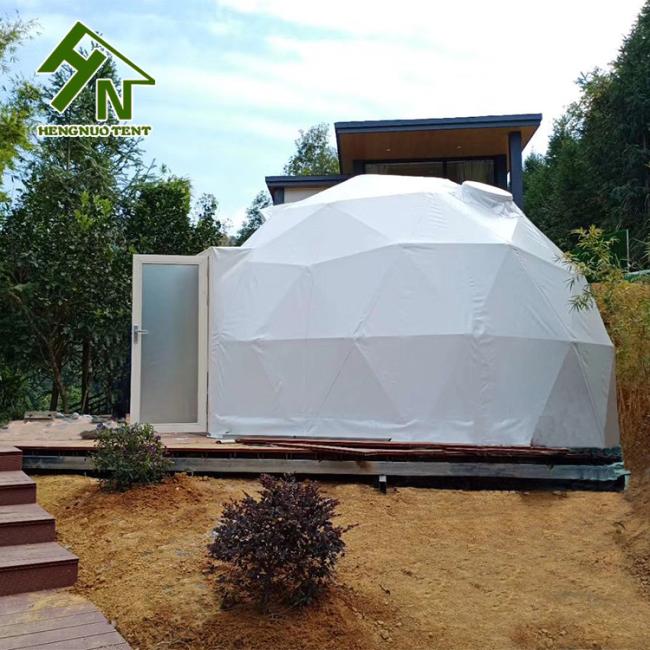

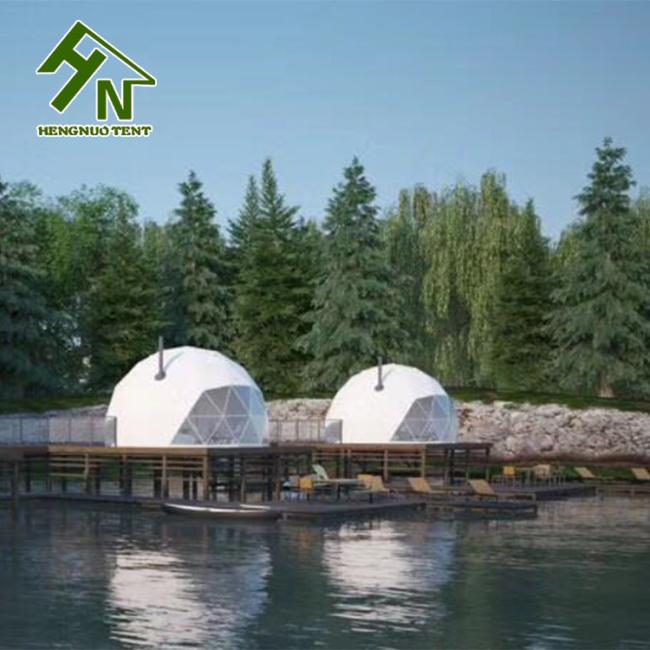

- - - - - Successful case - - - - -
Packing way
Steel pipes will be packed according different no.
Roof cover will be packed in professional PVC Bag
All can be packed in one plywood box.
We will use the best package to ensure that goods, it also can be tracked
- OUR ALL TENT STYLE
Heng Nuo Tent Factory manufactures aluminium A frame tent, pagoda tent, geodesic dome tent, arcum tent, curve tent, polygonl tent,high peak mixed tent, multi side tent, hexagonal pagoda tent , double decker tent etc.
