2 Person Family Living Geodesic Dome Tent For Accommodation
Outdoor 2 Person Family Living Geodesic Dome Camping Tent For Accommodation
Dome Tent For sffari / mountains / Hotel house / Camping / Trade show
| Name | Outdoor 2 person family living geodesic dome camping tent for accommodation |
| Brand Name | Hengnuo |
| Certificate | ISO 9001:2008 / SGS / CE |
| Size | Diameter: 3-50m |
| Frame Material | Galvanized steel tube |
| Roof Cover Material | 850g/Sqr PVC Fabric,Black-out. |
| Outer Cover Water proof Index | <3000mm |
| Feature | Water Proof / Fire Resistant/Wind Resisant / Snow Resistant |
| Service Life | More than 12-20 Years For Frame And 3-5 Years For The Cover |
| Application | Hotel house / Desert Resort / Glamping / Camping / Party |
| Wind Load | 100km /h,can be reinforce |
| Snow Load | 75kg/sqm |
Our dome structure consisting of a seamless steel tubes used to enclose space. The dome design is in
conjunction with the geodesic design, creates an amazingly strong structure using a minimal amount of
material. Domes Tent size can be custom-made from 5m to 50m in diameter and are commonly used for
events, camping, greenhouses, temporary structures or to enclose equipment.
The frames are made from stoving varnish, galvanized steel and stainless steel. Dome cover is double-
coated PVC fabric. The features of pvc cover is fire Retardant (DIN 4102 B1, M2), wateroof, UV
resistance.
Structure of the Tent
Q235 steel
Semi-permanent structure design
|
Size (Diameter) |
Ridge Height (m ) |
Area (sqm) |
Weight (KG) |
Frame pipe Diameter |
| 5m | 2.95 m | 19.6 m² | 220 KG | Φ 26x2mm |
| 6m | 3.5 m | 28.26 m² | 280 KG | Φ 26x2 mm |
| 7m | 3.9 m | 38.5 m² | 380 KG | Φ 26x2 mm |
| 8m | 4.8 m | 50.24 m² | 460 KG | Φ 32x1.5mm |
| 9m | 5.4 m | 63.6 m² | 480 KG | Φ 32x1.5 mm |
| 10m | 6 m | 78.5 m² | 500 KG | Φ 32x1.5 mm |

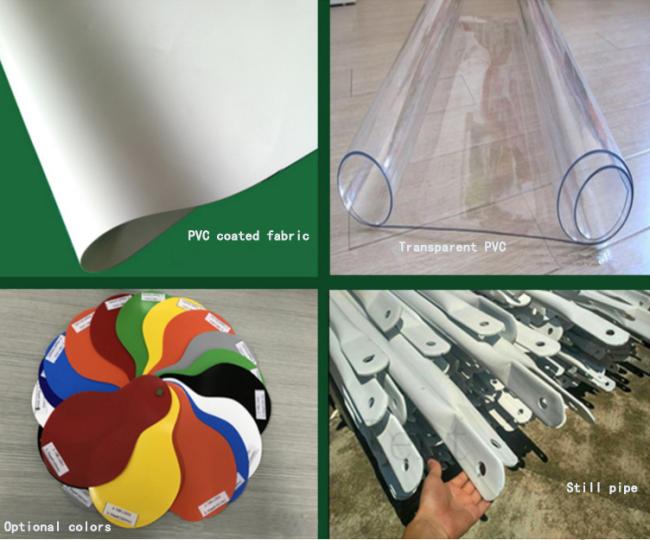

High quality material

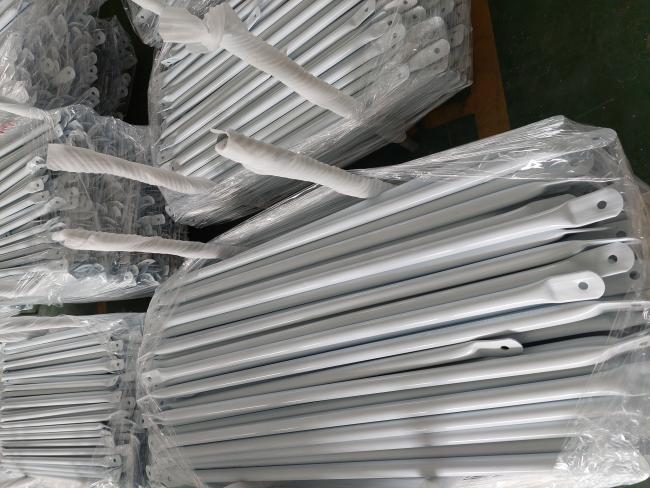

We use the good quality material for our product.Our tent fames are made from stoving varnish,
galvanized steel and stainless steel. It's rustless and eco-friendly.
Stainless steel tubes can be plated white or black
Our dome cover is double-coated PVC fabric. Our PVC fabric flame retardant according to German standard
DIN4102 B1,M2 and USA standar CFM/NFPA 701.
Density: 850 g / m² transparent or white shading PVC tarpaulin.
The features of pvc cover is 100% wateroof, flame-retardant (DIN4102 B1 / M2) ,UV resistant,anti-mildewtear
resistant ,etc.
| Item name | Outdoor Living Dome Tent Waterproof Glamping Geodesic Dome Tent With Solar Fan |
| Main Profiles | Material:galvanized steel pipe |
| Features:Stainless | |
| Cover | Density: 850g/sqm double coated blockout white PVC |
| 950g/sqm transparent PVC | |
| Meterial: PVC coated polyester fabric | |
| Features: Water proof, UV resistance, fire retardent,self-cleaning ability, Mildew Proof. | |
| Components | Superior enclosure with galvanized steel |
| Allowed temperature condition | -30 degree Celsius~+70 degree Celsius |
Window: round glass window / round window for air vent with curved outer cover / skylight
Door: Single leaf glass door / Double leaves glass door/ Door canopy for single leaf glass door
Wooden floor: 10mm thickness wooden floor+8mm thickness solid PVC panel
Other optional items: Insulation / Solar fan / Curtain / Camouflage net /J-type hook for attach the canvas to the bottom of framework / Plywood box for packing or Iron frame

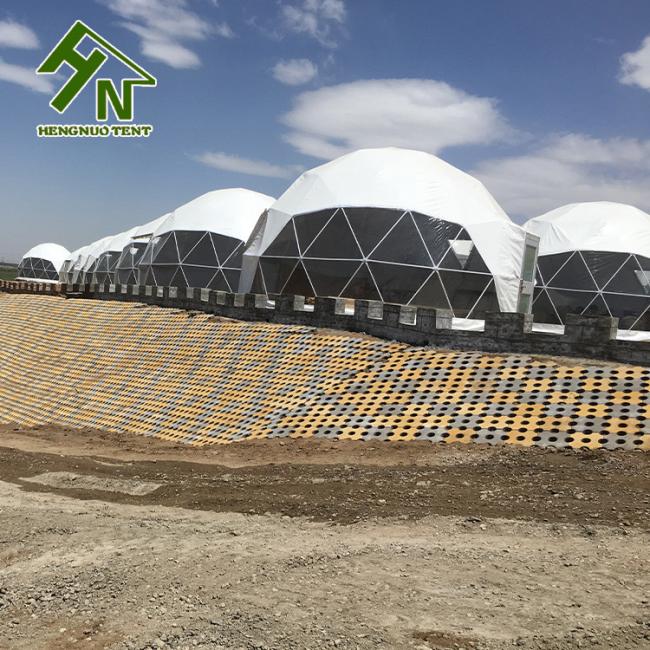

- - - - - Successful case - - - - -
Ground fixing accessories
| Expansion screw | Be used on the ground which can be damaged , such as cement or tarmac ground |
| Steel Nails | Be used on the ground which is loose ground, such as the sand and grass |
| Loading Plates | Be used on the ground which can't be damaged , such as marble and tile ground |
Easy to assemble and disassemble.We will supply installation manual and vedio after delivery.
If necessary,we can send a technician to guide the instalation .
- OUR ALL TENT STYLE
Heng Nuo Tent Factory manufactures aluminium A frame tent, pagoda tent, geodesic dome tent, arcum tent, curve tent, polygonl tent,high peak mixed tent, multi side tent, hexagonal pagoda tent , double decker tent etc.
