European Waterproof Four Seasons Geodesic Camping Tent Dome Structure For Resorts
Popular European Four Season Camping Tent Dome Structure For Resorts
DESCRIPTION
| Name | Popular European Waterproof Four Seasons Camping Tent Dome Structure For Resorts |
| Frame Material | Hot-dip Galvanized steel tube |
| Roof Cover Material | 850g/Sqr PVC Fabric,Black-out. |
| Outer Cover Water proof Index | <3000mm |
| Application | Hotel house / Desert Resort / Glamping / Camping / Party |
| Wind Load | 100km /h,can be reinforce |
| Snow Load | 75kg/sqm |
Structure of the Tent
Q235 steel
Resistance to max 12 level wind
. Frame: galvanized steel, stainless steel or stoving varnish
- Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM,UV resistant, tear resistant, self-cleaning ability, etc.
- Connector: strong hot-dip galvanized steel
- Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
- Wind load: max. 100km/h (can be reinforced)
- Snow load: 75kg/sqm (snow can't stay if use big degree roof pitch design)
- Easy to be assembled and dismantled, movable.
- No pole inside, 100% available interior space
6m diameter is the most popular size, it has 28.26m2 space inside.
|
Size (Diameter) |
Ridge Height (m ) |
Area (sqm) |
Weight (KG) |
Frame pipe Diameter |
| 5m | 2.95 m | 19.6 m² | 220 KG | Φ 26x2mm |
| 6m | 3.5 m | 28.26 m² | 280 KG | Φ 26x2 mm |
| 7m | 3.9 m | 38.5 m² | 380 KG | Φ 26x2 mm |
| 8m | 4.8 m | 50.24 m² | 460 KG | Φ 32x1.5mm |
| 9m | 5.4 m | 63.6 m² | 480 KG | Φ 32x1.5 mm |
| 10m | 6 m | 78.5 m² | 500 KG | Φ 32x1.5 mm |
Our dome cover is double-coated PVC fabric. Our PVC fabric flame retardant according to German standard
DIN4102 B1,M2
Density: 850 g / m² transparent or white shading PVC tarpaulin.
The features of pvc cover is 100% wateroof, flame-retardant (DIN4102 B1 / M2) ,UV resistant,anti-mildewtear
resistant ,etc.
OPTIONAL ACCESSORIES FOR DOME TENT
Full line accessories available. You can chose the accessories for the tent according to your needs.
Windows: round / triangle / rectangle PVC window, round / triangle glass window.
Wooden flooring system: scassette flooring
Doors: double-swing glass door, single-swing glass door, PVC door
Fixing way: ground anchors, weight plate, expandable screw
Heat insulation: 8mm or 12mm thickness insulation, PU leather cover heat insulation.
Curtain: single track or double track curtain, automatic skylight curtain
Ventilation :top ventilation window, solar fan
Shower room:1.2m*1.4m, 1.2m*1.7m, 1.2m*1.9m
Floor : E1 laminate floor
- You can install air conditioner and stove system inside the dome tent to make it very comfortable
| Item name | Outdoor Living Dome Tent Waterproof Glamping Geodesic Dome Tent With Solar Fan |
| Main Profiles | Material:White painted Hot-dip Galvanized Steel Tube |
| Features:Stainless | |
| Cover | Density: 850g/sqm double coated blockout white PVC |
| 950g/sqm transparent PVC | |
| Meterial: PVC coated polyester fabric | |
| Features: Water proof, UV resistance, fire retardent,self-cleaning ability, Mildew Proof. | |
| Components | Hot-dip Galvanized Steel |
| Allowed temperature condition | -30 degree Celsius~+70 degree Celsius |

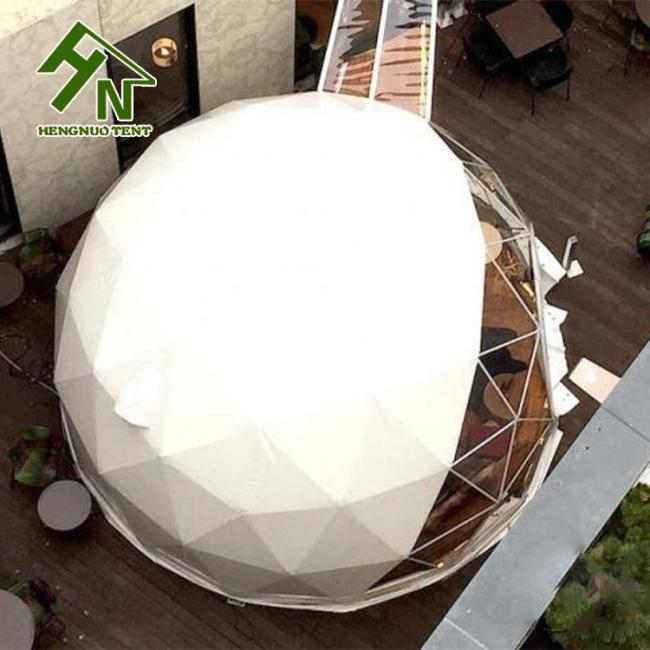

- - - - - Successful case - - - - -
Packing way
Steel pipes will be packed according different no.
Roof cover will be packed in professional PVC Bag
All can be packed in one plywood box.
We will use the best package to ensure that goods, it also can be tracked
- OUR ALL TENT STYLE
Heng Nuo Tent Factory manufactures aluminium A frame tent, pagoda tent, geodesic dome tent, arcum tent, curve tent, polygonl tent,high peak mixed tent, multi side tent, hexagonal pagoda tent , double decker tent etc.
